Eaton

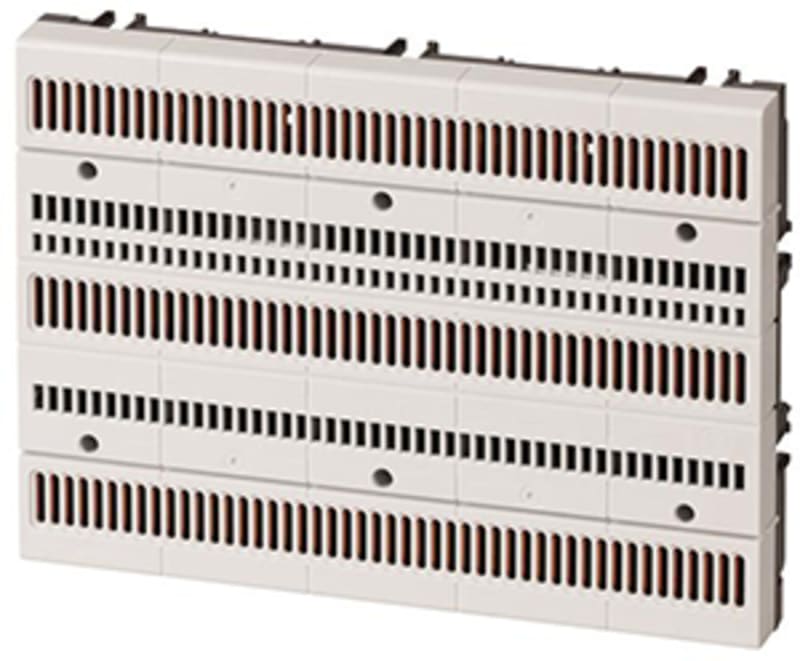

MSFB busbar board 4 outgoing feeders 125 A
Part numberMSFB-4-125AEAN / GTIN4015081915897HS code8536.90
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton MSFB-4-125A busbar board with four outgoing feeders rated 125 A. Three-pole assembly with 60 mm busbar centres, IP20 protection and copper conductors, certified to EN 61439-1.
Technical Specifications
- Manufacturer part number (MPN)
- MSFB-4-125A
- EAN / GTIN
- 4015081915897
- Sales unit
- pcs
- Eaton catalogue number
- 191091
- Depth
- 160 mm
- Height
- 45 mm
- Width
- 225 mm
- Weight
- 0.74 kg
- Certifications
- EN 61439-1
- Mounting position
- Horizontal
- Rated frequency - max
- 60 Hz
- Rated frequency - min
- 50 Hz
- Rated operational current (Ie) - max
- 125 A
- Rated operational voltage (Ue) - max
- 690 V
- Rated short-time withstand current (Icw)
- 10 kA
- Material
- Copper
- Number of poles
- Three-pole
- Degree of protection
- IP20
- Flammability characteristics
- To UL 94
- Mounting method
- 60 mm distance between busbar centers
- Product category
- Accessories
- Rated impulse withstand voltage (Uimp)
- 6000 V
- Busbar distance
- 60 mm
- Rated current
- 125 A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surface protection
- Untreated
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081915897
- SAP 1200257265
- Code 82221408
Product Documentation
Document preview: MSFS tray,4 avganger,125 A (MSFB-4-125A) — Specification Data Sheet (OEM)
