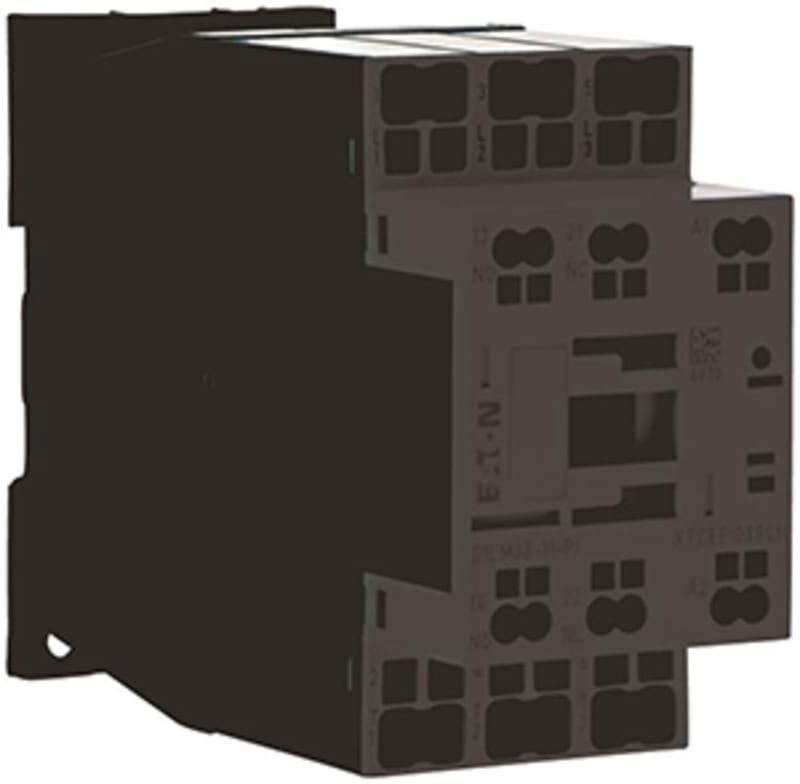

Contactor DILM38-11(24V50/60HZ)-PI

Eaton DILM38-11(24V50/60HZ)-PI Contactor, 3-pole, 380 V 400 V 18.5 kW, 1 N/O, 1 NC, 24 V 50/60 Hz, AC -Control, PI.

Manufacturer part number (MPN)

DILM38-11(24V50/60HZ)-PI

EAN / GTIN

4015081973804

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

199296

Depth

115 mm

Height

85 mm

Width

45 mm

Weight

0.441 kg

Certifications

IEC/EN 60947; VDE 0660; UL Listed; CSA certified; UL Category Control No.: NLDX; CE marking; UL File No.: E29096; CSA Class No.: 2411-03

3211-04; CSA File No.

012528

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

3

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

1

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

90 A

Conventional thermal current Ith (3-pole, enclosed)

36 A

Conventional thermal current Ith at 55°C (3-pole, open)

42 A

Conventional thermal current Ith of main contacts (1-pole, open)

100 A

Heat dissipation capacity Pdiss

0 W

Rated breaking capacity at 220/230 V

320 A

Rated breaking capacity at 380/400 V

320 A

Rated breaking capacity at 500 V

320 A

Rated breaking capacity at 660/690 V

180 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

384 A

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

45 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

38 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

38 A

Rated operational current (Ie) at AC-3

440 V

38 A

Rated operational current (Ie) at AC-3

500 V

38 A

Rated operational current (Ie) at AC-3, 660 V

690 V

22.5 A

Rated operational current (Ie) at AC-4, 220 V, 230 V

240 V

15 A

Rated operational current (Ie) at AC-4

440 V

15 A

Rated operational current (Ie) at AC-4

500 V

15 A

Rated operational current (Ie) at AC-4, 660 V

690 V

12 A

Rated operational current (Ie) at DC-1

110 V

40 A

Rated operational current (Ie) at DC-1

220 V

40 A

Rated operational current (Ie) at DC-1

60 V

40 A

Rated operational power at AC-3, 240 V

50 Hz

12 kW

Rated operational power at AC-3, 380/400 V

50 Hz

18.5 kW

Rated operational power at AC-3, 415 V

50 Hz

20 kW

Rated operational power at AC-4, 220/230 V

50 Hz

4 kW

Rated operational power at AC-4, 240 V

50 Hz

4.5 kW

Rated operational power at AC-4, 415 V

50 Hz

7.5 kW

Rated operational power at AC-4, 440 V

50 Hz

8 kW

Rated operational power at AC-4, 500 V

50 Hz

9 kW

Rated operational power at AC-4, 660/690 V

50 Hz

10 kW

Rated operational voltage (Ue) at AC - max

690 V

Emitted interference

According to EN 60947-1

Interference immunity

According to EN 60947-1

Fitted with

Mirror contact

Number of poles

Three-pole

Application

Contactors for Motors

Connection

Push in terminals

Degree of protection

IP20

Lifespan, mechanical

10,000,000 Operations (AC operated)

Operating frequency

5000 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-4: Normal AC induction motors: starting, plugging, reversing, inching; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

AC

Frame size

FS2

Arcing time

10 ms

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc

Power consumption, pick-up

50 Hz

58 VA, Dual-frequency coil in a cold state and 1.0 x Us; 62 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, pick-up

60 Hz

58 VA, Dual-frequency coil in a cold state and 1.0 x Us; 62 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing

50 Hz

2.1 W, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing

60 Hz

2.1 W, Dual-frequency coil in a cold state and 1.0 x Us; 6.5 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 9.1 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Rated control supply voltage (Us) at AC

50 Hz - max

24 V

Rated control supply voltage (Us) at AC

50 Hz - min

24 V

Rated control supply voltage (Us) at AC

60 Hz - max

24 V

Rated control supply voltage (Us) at AC

60 Hz - min

24 V

Switching time (AC operated, make contacts, closing delay) - max

22 ms

Switching time (AC operated, make contacts, closing delay) - min

16 ms

Switching time (AC operated, make contacts, opening delay) - max

14 ms
