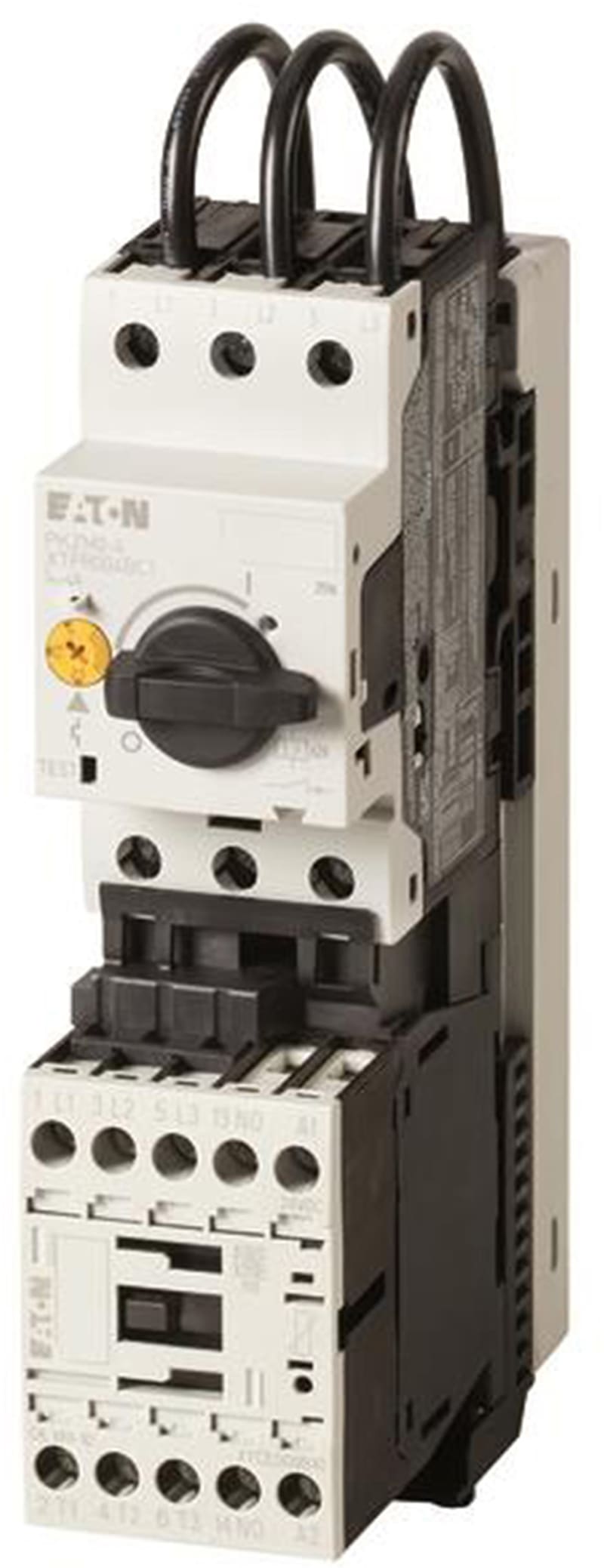

Eaton Direct Online Starter (DOL), Screw Connection (MSC-DM-0,4-M7(24VDC)/MSFA)
Part numberMSC-DM-0,4-M7(24VDC)/MSFAEAN / GTIN4015081916016HS code8536.50
Drives & Controllers
Motor Starters
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton MSC-DM-0,4-M7(24VDC)/MSFA MSC-DM-0,4-M7(24VDC)/MSFA.
Technical Specifications
- Manufacturer part number (MPN)
- MSC-DM-0,4-M7(24VDC)/MSFA
- EAN / GTIN
- 4015081916016
- Sales unit
- pcs
- Eaton catalogue number
- 191103
- Depth
- 115 mm
- Height
- 180 mm
- Width
- 45 mm
- Weight
- 0.724 kg
- Certifications
- UL 508 (on request); CSA-C22.2 No. 14 (on request)
- Altitude
- Max. 2000 m
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Rated operational current (Ie)
- 0.31 A
- Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
- 0.4 A
- Rated operational power at AC-3, 220/230 V, 50 Hz
- 0.06 kW
- Rated operational power at AC-3, 380/400 V, 50 Hz
- 0.09 kW
- Rated operational voltage
- 230 - 415 V AC
- Fitted with
- Short-circuit release
- Functions
- Temperature compensated overload protection
- Class
- CLASS 10 A
- Connection
- Screw terminals
- Connection to SmartWire-DT
- No
- Coordination type
- 2
- Degree of protection
- IP20; NEMA Other
- Model
- IEC starter
- Mounting method
- Motor starter Feeder System
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 1
- Overload release current setting - max
- 0.4 A
- Overload release current setting - min
- 0.25 A
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp)
- 6000 V AC
- Suitable for
- Also motors with efficiency class IE3
- Type
- Starter with Bi-Metal release
- Voltage type
- DC
- Power consumption (sealing) at DC
- 2.6 W
- Rated control supply voltage (Us) at DC - max
- 24 V
- Rated control supply voltage (Us) at DC - min
- 24 V
- Short-circuit release (Irm) - max
- 6.2 A
- With transformer
- No
- Power consumption
- 2.6 W
- Rated operation power at AC-3, 400 V
- 0.09 kW
- Number of auxiliary contacts as normally open contact
- 1
- Suitable for emergency stop
- No
- Rated operation current Ie
- 0.31 A
- Overload release current setting
- 0.25–0.4 A
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- No
- Suitable for rail mounting
- Yes
- Rated control supply voltage DC
- 24 V
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- CLASS 10
- With short-circuit release
- Yes
- With fuse
- No
- Type of electrical connection of main circuit
- Screw connection
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- DC
- Type of motor starter
- Direct online starter (DOL)
- Rated operation power at AC-3, 230 V, 3-phase
- 0.06 kW
- Rated operation current at AC-3, 400 V
- 0.4 A
- Ambient temperature, upper operating limit
- 60 °C
- Temperature compensated overload protection
- Yes
- Rated conditional short-circuit current, type 2, 400 V
- 50000 A
- Rated conditional short-circuit current, type 2, 230 V
- 50000 A
- Coordination class according to IEC 60947-4-3
- Class 2
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081916016
- SAP 1200300510
- Code 82273210
Product Documentation
Document preview: Eaton Direct Online Starter (DOL), Screw Connection (MSC-DM-0,4-M7(24VDC)/MSFA) — Specification Data Sheet (OEM)
