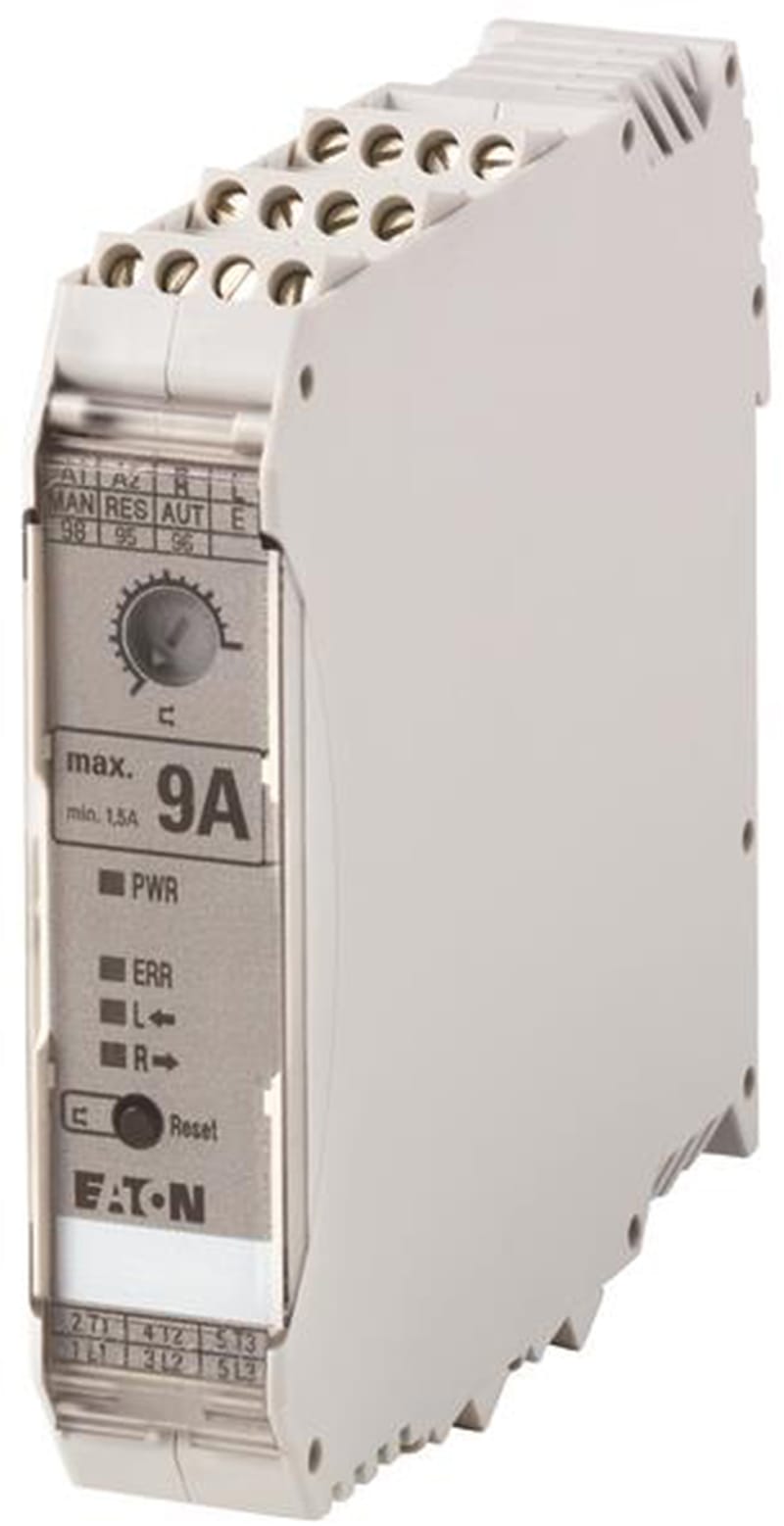

Eaton EMS2-RO-Z-2,4-230VAC reversing starter 230 V AC 0.18-2.4 A

Eaton EMS2-RO-Z-2,4-230VAC reversing starter, 230 V AC control, 0.18-2.4 A range, screw terminals. Compact motor starter for direct forward-reverse control on three-phase motors. Housed in a 22.5 mm module suited to DIN-rail assembly.

Manufacturer part number (MPN)

EMS2-RO-Z-2,4-230VAC

EAN / GTIN

4015080896104

Sales unit

pcs

Eaton catalogue number

197169

Depth

114.5 mm

Height

99 mm

Width

22.5 mm

Weight

0.287 kg

Certifications

UL508; IEC/EN 60947-4-2; UL File No.: E29096; UL Category Control No.: NLDX, NLDX7; UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; CE marking; UL listed; Certified by UL for use in Canada; UL report applies to both US and Canada

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

1

Number of contacts (change-over contacts)

1

Equipment heat dissipation, current-dependent Pvid

4.7 W

Heat dissipation details

If necessary, Allow for derating

Rated operational current for specified heat dissipation (In)

2.4 A

Static heat dissipation, non-current-dependent Pvs

1 W

Rated actuating current (Ic)

7 mA

Rated control supply current Is

4 mA

Rated control supply voltage

85 - 253 V AC

Rated control supply voltage (Us) at AC, 50 Hz - max

230 V

Rated control supply voltage (Us) at AC, 50 Hz - min

230 V

Rated control voltage (Uc)

230 V (Actuating circuit ON, L, R)

Rated operational current (Ie)

2.4 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

3 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

2.4 A

Rated operational current (Ie) at AC-51

2.4 A

Rated operational current (Ie) at AC-53A - max

2.4 A

Rated operational current (Ie) at DC-13, 24 V

2 A

Rated operational power at AC-3, 220/230 V, 50 Hz

0.37 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

0.75 kW

Rated operational power at AC-53A, 380/400 V, 50 Hz

0.75 kW

Rated operational voltage

500 V AC; 42 - 550 V

Switching level

0 - 44 V AC, Switching level "Low", Actuating circuit (ON, L, R); 85 - 253 V AC, Switching level "High", Actuating circuit (ON, L, R)

Radio interference class

EN 55011; Class A (EN 61000-6-3, emitted interference, radiated)

Functions

Temperature compensated overload protection; DOL starting; Reversing start; Motor protection

Class

CLASS 10

Connection to SmartWire-DT

No

Degree of protection

IP20; NEMA Other

Model

Reversing starter

Mounting method

Top-hat rail fixing (according to IEC/EN 60715, 35 mm); Rail mounting possible

Mounting position

Motor feeder at bottom; Vertical

Overload release current setting - max

3 A

Overload release current setting - min

0.18 A

Product category

Electronic motor starter

Terminal capacity

0.14 - 2.5 mm², Control circuit cables; 0.2 - 2.5 mm², Main cables

Terminal capacity (AWG)

24 - 14, Main cables; 26 - 14, Control circuit cables

Type

Reversing starter (complete device)

Voltage type

AC

With transformer

No

Power consumption

4.7 W

Rated operation power at AC-3, 400 V

0.75 kW

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Suitable for emergency stop

No

Rated operation current Ie

2.4 A

Number of indicator lights

4

Overload release current setting

0.18–3 A

Supporting protocol for LON

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

External reset possible

Yes

Suitable for rail mounting

Yes

Rated control supply voltage AC 50 Hz

230 V

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Release class

CLASS 10

With short-circuit release

No

With fuse

No

Type of electrical connection of main circuit

Screw connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Voltage type for actuating

AC

Type of motor starter

Reversing starter

Rated operation power at AC-3, 230 V, 3-phase

0.37 kW

Rated operation current at AC-3, 400 V

2.4 A

Ambient temperature, upper operating limit

60 °C

Temperature compensated overload protection

Yes

Coordination class according to IEC 60947-4-3

Class 1

Country of origin

Germany

HS Code

8536.50
