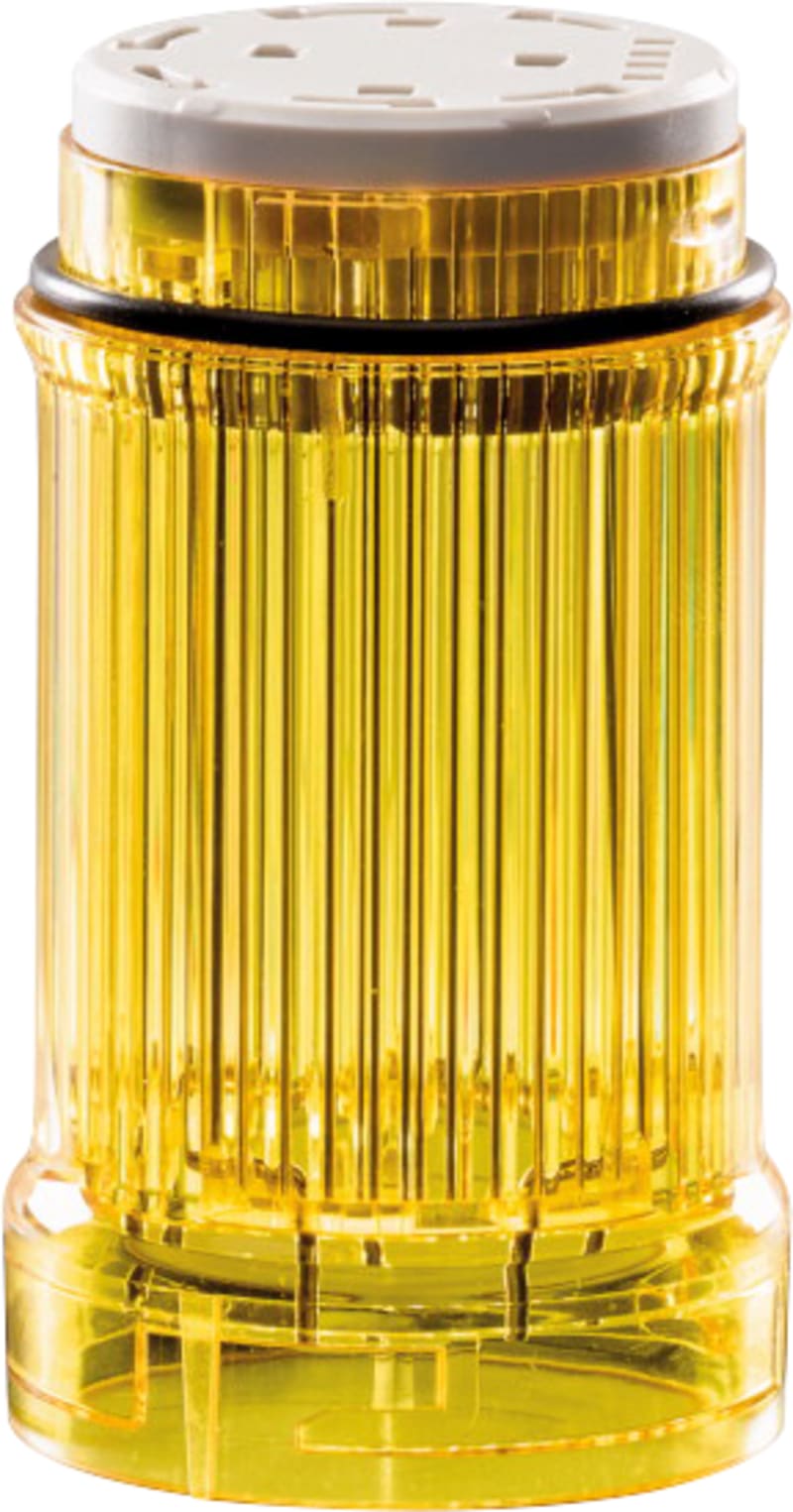

LED Strobe light, Yellow, 120V (SL4-FL120-Y)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED Strobe light, Yellow, 120V (SL4-FL120-Y) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 171365; Depth: 43 mm; Height: 75 mm; Width: 43 mm; Weight: 0.044 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL4-FL120-Y
- EAN / GTIN
- 4015081678198
- Sales unit
- pcs
- Eaton catalogue number
- 171365
- Depth
- 43 mm
- Height
- 75 mm
- Width
- 43 mm
- Weight
- 0.044 kg
- Certifications
- Certified by UL for use in Canada; UL; UL File No.: E29184; UL Category Control No.: NKCR; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; IEC/EN 60529; CE; UL 508; CSA Class No.: NKCR7; IEC/EN 60947-5-1; UL report applies to both US and Canada
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Leakage current
- 0.003 A
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage (Ue) at AC - max
- 120 V
- Rated operational voltage (Ue) at AC - min
- 110 V
- Color
- Yellow
- Enclosure color
- Black
- Functions
- Flash light
- Light modules
- LED
- Number of modules
- Max. 10 (with base for mounting on both sides); Max. 5 (with standard base)
- Connection to SmartWire-DT
- No
- Current consumption
- 24 mA at 110/120 V AC
- Degree of protection
- NEMA 4X; IP66
- Flashing frequency
- 1.4 Hz
- Lifespan, electrical
- 100,000 h
- Light type
- Strobe light
- Material
- Cap: Polycarbonate (PC); Enclosure: Polycarbonate (PC)
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Radiation angle
- 360 °
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms; Mechanical, According to IEC/EN 60068-2-27
- Type
- Strobe light module
- Voltage type
- AC
- Colour
- Yellow
- Outer diameter
- 43 mm
- Housing colour
- Black
- Lamp type
- LED
- Operating voltage AC 50 Hz
- 110–120 V
- Operating voltage AC 60 Hz
- 110–120 V
- Repetition frequency settable
- No
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015081678198
- SAP 1000489708
- Code 8807188
Product Documentation
More from Eaton
Eaton
SmartWire-DT LED Element, Base Mounting, Blue
M22-SWD-LEDC-B
Eaton
Direct-on-line starter,MSC-D-12-M12(230V50HZ)-PI
Eaton
Fr.Pl 45mm cutout H175 B1200
BPZ-FP/MSW-1200/175-45
Eaton
Wall box H×W×D=1760X1200X240MM
BPZ-WB3S-1200/17/2
Eaton
Connectionslead-through, RMQ (M22-USB)
Eaton

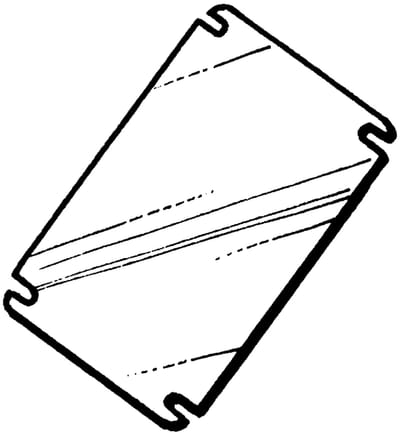

Mounting Plate EKO (ekovt)
EKOVT
Eaton

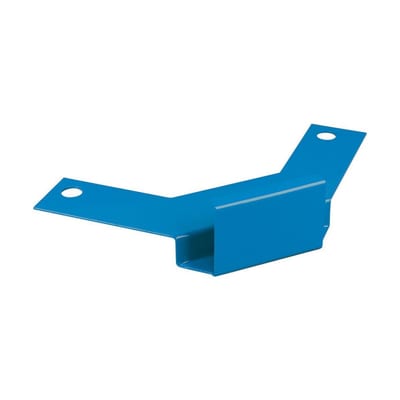

Merkestripe Cornerdel (XSFDC-B)
Eaton

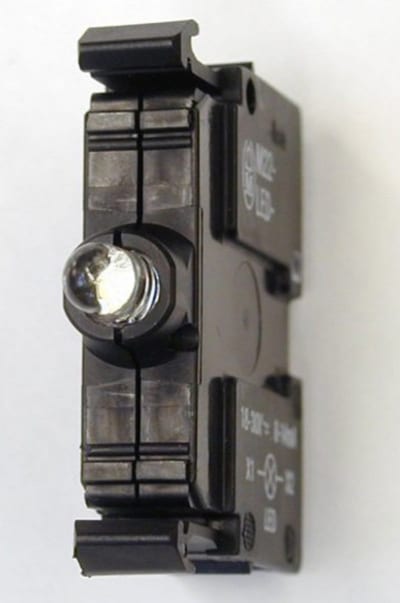

LED ELEMENT,RMQ (M22-CLED230-W)
