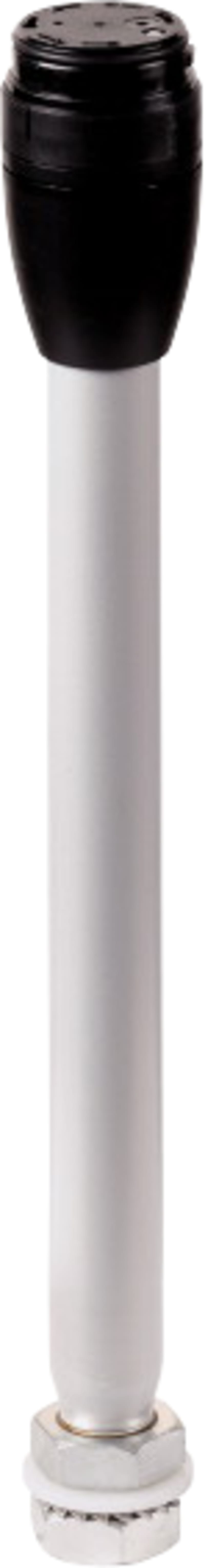

Base 250mm Aluminium Tube, banjobolt (SL4-PIB-T-250)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Base 250mm Aluminium Tube, banjobolt (SL4-PIB-T-250) is listed under Metals & Profiles / Bars, Plates & Profiles. Sales unit: pcs; Eaton catalogue number: 171306; Depth: 43 mm; Height: 334 mm; Width: 43 mm; Weight: 0.167 kg.
Technical Specifications
- Manufacturer part number (MPN)
- SL4-PIB-T-250
- EAN / GTIN
- 4015081678471
- Sales unit
- pcs
- Eaton catalogue number
- 171306
- Depth
- 43 mm
- Height
- 334 mm
- Width
- 43 mm
- Weight
- 0.167 kg
- Certifications
- Certified by UL for use in Canada; UL; CSA-C22.2 No. 14-10; IEC/EN 60947-5-1; UL report applies to both US and Canada; IEC/EN 60529; UL File No.: E29184; CSA-C22.2 No. 94-91; CSA Class No.: NKCR7; CE; UL 508; UL Category Control No.: NKCR
- Ambient operating temperature - max
- 60 °C
- Ambient operating temperature - min
- -30 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Rated insulation voltage (Ui)
- 250 V
- Rated operational voltage
- 110/120 V AC ± 10 %; 230/240 V AC ± 10 %; 24 V AC/DC ± 10 %
- Color
- Other
- Fitted with
- Cover; Banjo bolt; Aluminum tube
- Number of modules
- Max. 5 (with standard base); Max. 5; Max. 10 (with base for mounting on both sides)
- Connection to SmartWire-DT
- No
- Degree of protection
- NEMA 13; NEMA 4; IP66; NEMA 4X
- Mounting Method
- Floor; Bracket; Horizontal; Tube
- Mounting position
- As required
- Overvoltage category
- III
- Pollution degree
- 3
- Product Category
- SL signal towers
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Shock resistance
- Mechanical, According to IEC/EN 60068-2-27; 15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
- Tube length
- 250 mm
- Type
- Base module
- Terminal capacity (AWG)
- 24 - 16
- Terminal capacity (flexible with ferrule and plastic collar)
- 0.25 - 0.75 mm²
- Terminal capacity (solid/flexible with ferrule)
- 0.25 - 1.5 mm²
- Terminal capacity (solid/flexible)
- 0.2 - 1.5 mm²
- Suitable for tube mounting
- Yes
- Suitable for angle mounting
- Yes
- Suitable for AS interface
- No
- Connection type auxiliary circuit
- Spring clamp connection
- Suitable for M12 connector
- No
- Suitable for IO link
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 8531.90
Cross References
- EAN 4015081678471
- SAP 1000489735
- Code 8603070
Product Documentation
More from Eaton
Eaton

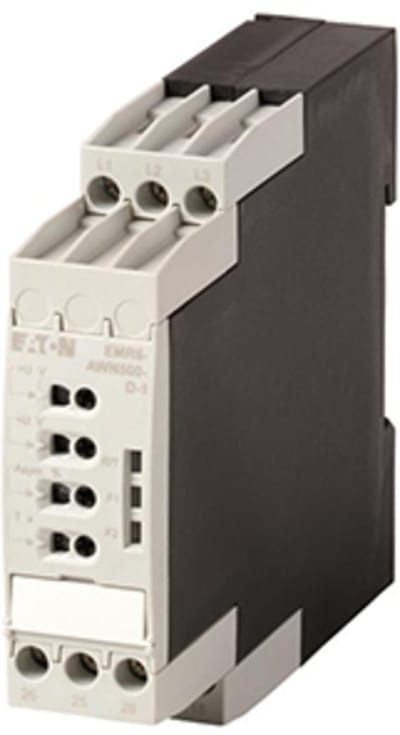

Phase monitoring relay (EMR6-AWN500-D-1)
Eaton

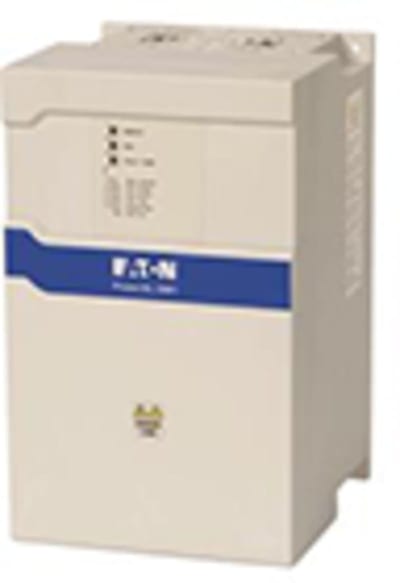

variable-frequency drive, DM1-32048NB-N20B-EM
3-5024-004A
Eaton

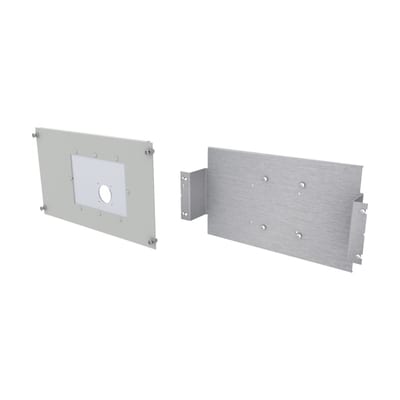

Mounting Kit QSA200/400 RH H300 B600 xEB
2457658
Eaton

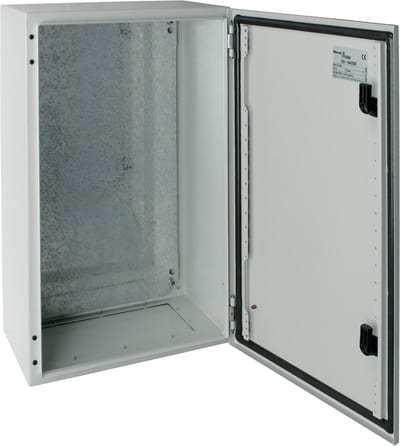

WALL-Mount Cabinet H700 B500 D200
CS-75/200
Eaton

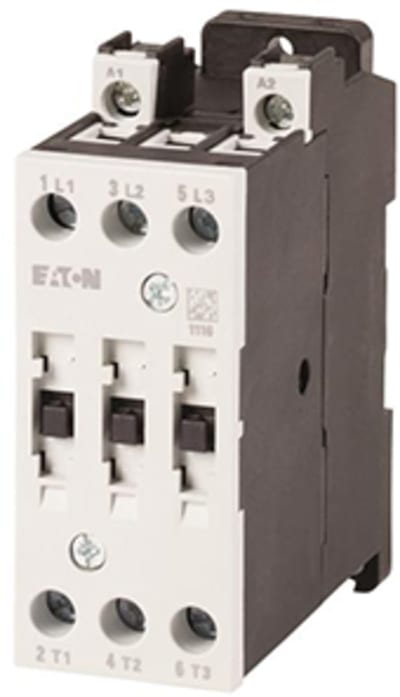

Eaton DILMT25 Contactor 3-pole 11 kW 24 V DC, screw terminals (DILMT25(RDC24))
Eaton

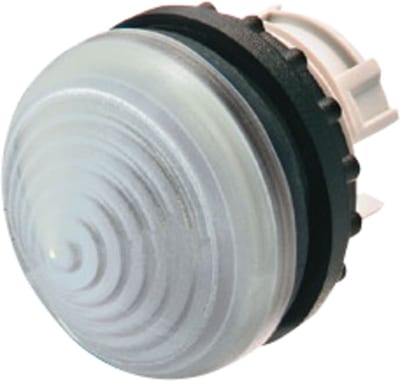

Lamp Front White HIGH IP66
M22-LH-W
Eaton

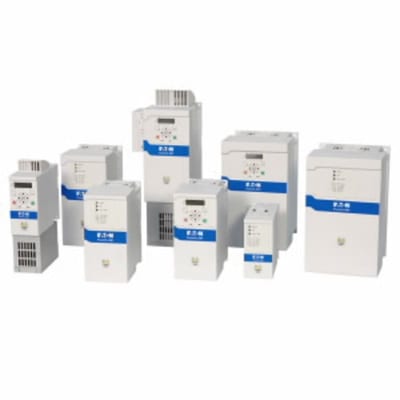

variable-frequency drive DM1-12017NB-S20S-EM
Eaton

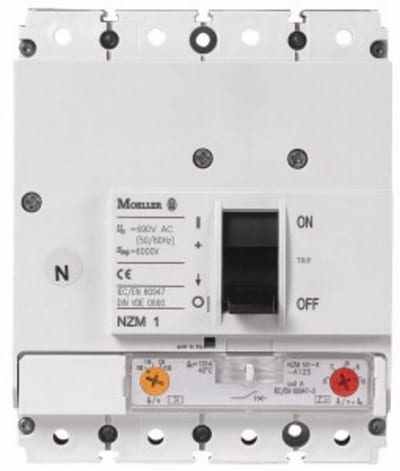

Eaton NZMN1-4-A32 Molded-Case Circuit Breaker 4-Pole 32A 50KA
