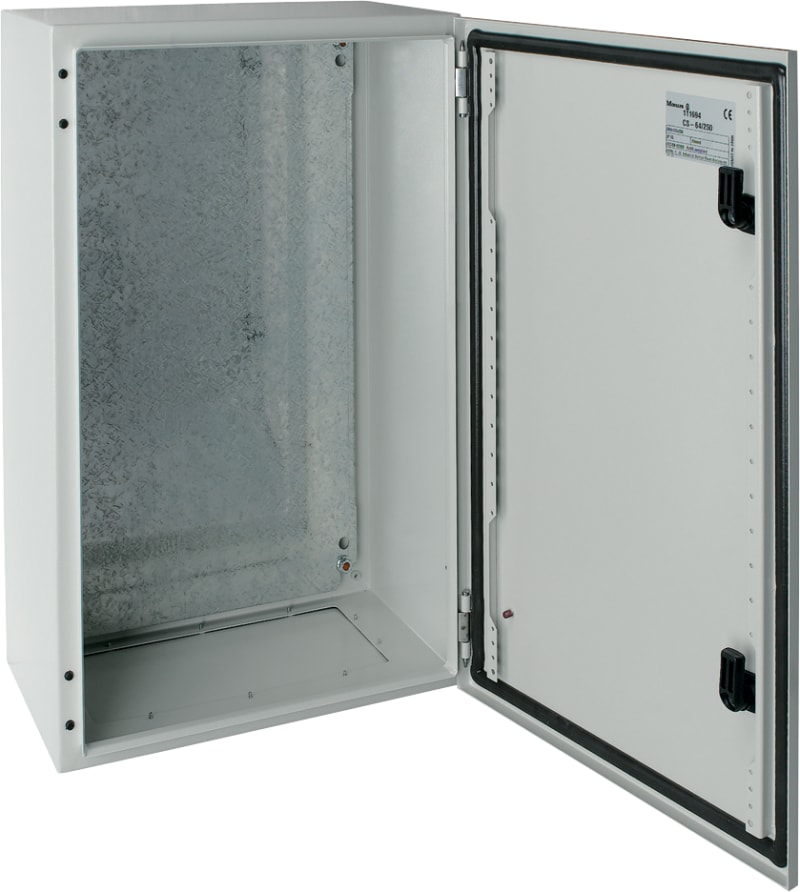

WALL-Mount Cabinet H700 B500 D200

Eaton CS-75/200 Enclosure with mounting plate, IP66. RAL7035. EN62234.

Manufacturer part number (MPN)

CS-75/200

EAN / GTIN

4015081112616

Sales unit

pcs

Eaton catalogue number

111702

Depth

200 mm

Height

700 mm

Width

500 mm

Weight

21.33 kg

Compliances

UL CSA09 (may be provided with metal sub-panel, no back mounted components are allowed between sub-panel and the back sheet metal enclosure); UL 508A; CSA-C22.2 No.14; IEC/EN 62208; CE marking; RoHS conform

Certifications

IEC/EN 62208; UL (File No. E336299); UL CSA08 (request filed); UL (Category Control Number NITW); In accordance with Directive 2015/863/EU of the European Parliament and Council

Catalog Notes

Foamed polyurethane sealing throughout. Impact resistance category IK10 to EN 62262. Sheet steel mounting plate. Bottom plate with foamed gasket. Single door, door stop on the right, door opening angle 120°. Door hinge pins with quick chang

Features

Wall build in; Pole fastening

Fitted with

Including M6 threaded welded studs for earth conductor connections in the door:; Mounting plate; Cover; Door

Functions

Floor standing enclosure

RAL-number

7035

Suitable for

Metrical mounting

Used with

Industrial control panels

Color

Gray; Light gray (RAL 7035)

Type

Wall-mounting housing CS Wall-mounting housing with mounting plate

Ambient operating temperature details

-25 °C - 40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclical, to IEC 60068-2-30

Cover/door angle

120° door opening angle

Cover/door profile

2 door profiles

Cover/door type

Door hinges on the right, can be converted by user; Closed; Standard closure 3 mm double-ward key (door interlock)

Design type

Canted and seam welded, including two M6 threaded bolts for earth conductor connections inside the enclosure.

Flange plate dimensions

172 mm x 432 mm

Installation site

Indoor installation

Installation type

Floor standing wall model

Load capacity (door)

25 kg

Load capacity (mounting plate)

500 kg payload, when brackets fitted in all four enclosure corners (vertically or horizontally) and the weights are symmetrically distributed within the enclosure.; 250 kg

Material

Steel plate; Steel

Material quality

Other

Material thickness (body)

1.5 mm

Material thickness (bottom plate)

2 mm

Material thickness (door)

1.5 mm

Mounting method

9 mm drilling dimensions for wall mounting (Back plate); Wall fastening; Intermediate mounting

Mounting plate height

670 mm

Mounting plate material

Sheet steel, hot-galvanized

Mounting plate width

450 mm

Number of connector holes

0

Number of covers/doors

1

Number of F3A flanges

1

Number of hinges

2

Number of locks

2

Permissible load of the door(s) according to IEC 62208 - max

250 N

Permissible load of the enclosure according to IEC 62208 - max

2750 N

Permissible load of the mounting plate according to IEC 62208 - max

2500 N

Surface finishing

Gloss; Semi-textured; Structured powder spray polyester based paint finish; Powder coating

Surface treatment

Structured powder spray polyester based paint finish

Thickness of mounting plate

2 mm

Weight of mounted components - max

275 kg

Degree of protection

IEC: IP66, indoor; UL/CSA Types 1, 12, indoor only.; IP23 (with ventilating plates); IP66; 12 (NEMA); IK10; IK10 (impact resistance)

Heat diss. wall mount individual encl. top

53 W

Heat diss. wall mount middle encl. top

47 W

Heat diss. wall mount starting encl. top

50 W

Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890

53 W

Colour

Grey

With mounting plate

Yes

Number of doors

1

Suitable for wall mounting

Yes

Pre-stamping

No

EMC-version

Yes

With glazed door

No

Couplable

No

Impact strength

IK09

Suitable for outdoor set-up

No

Suitable for metrical mounting

Yes

Mounting plate depth-adjustable

Yes

Connectable

Yes

With ventilation door

No

Wall fastening possible

Yes

With rear door

No

Suitable for wall built-in

Yes

With cover

Yes

With door

Yes

Pitched roof

No

Pole fastening

Yes

Transparent cover

No

Suitable for outdoor installation

Yes

Max. permitted load of the enclosure according to IEC 62208

2750 N

Max. permitted load of the door(s) according to IEC 62208

250 N

Floor standing wall model

Yes

Freestanding

No

Corner model

No

Intermediate mounting

Yes

Country of origin

Spain

HS Code

8538.10
