Eaton

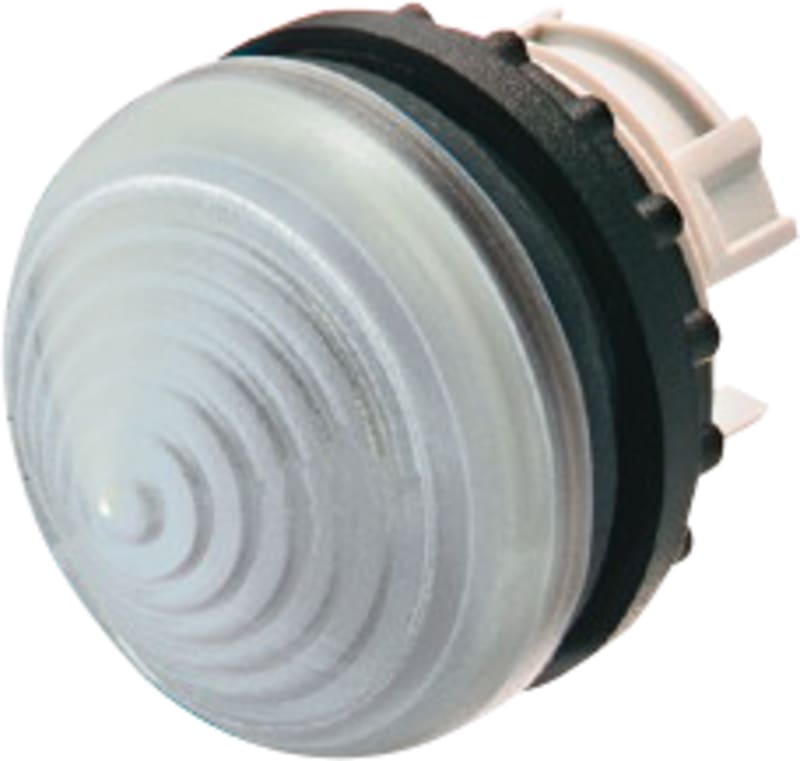

Lamp Front White HIGH IP66
Part numberM22-LH-WEAN / GTIN4015082167783HS code8539.52
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton M22-LH-W Indicator lamp for LED, high, IP67, IP69K.
Technical Specifications
- Manufacturer part number (MPN)
- M22-LH-W
- EAN / GTIN
- 4015082167783
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 216778
- Depth
- 30 mm
- Height
- 38 mm
- Width
- 30 mm
- Weight
- 0.007 kg
- Certifications
- CSA-C22.2 No. 14-05; CSA; VDE 0660; CSA Class No.: 3211-03; CSA File No.: 012528; UL 508; UL File No.: E29184; IEC/EN 60947; IEC/EN 60947-5; CE; CSA-C22.2 No. 94-91; UL; UL Category Control No.: NKCR
- Bezel color
- Chrome
- Bezel material
- Other
- Design
- Extended, conical
- Fitted with
- Front ring
- Lens color
- White
- Lens type
- High; Round
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- Yes; With SWD-RMQ connections
- Equipment heat dissipation, current-dependent Pvid
- 0 W
- Heat dissipation capacity Pdiss
- 0 W
- Heat dissipation per pole, current-dependent Pvid
- 0 W
- Rated operational current for specified heat dissipation (In)
- 0 A
- Static heat dissipation, non-current-dependent Pvs
- 0 W
- Rated insulation voltage (Ui)
- 250 V
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP67/IP69K
- Mounting position
- As required
- Opening diameter
- 22 mm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Size
- Front diameter: 29.7 mm
- Type
- Indicator lights
- Terminal capacity
- 0.5 - 1.5 mm², solid; 0.5 - 1.5 mm², stranded
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 4015082167783
- SAP 1000051494
- Code 8534784
Product Documentation
Document preview: Lamp Front White HIGH IP66 (M22-LH-W) — Specification Data Sheet (OEM)
