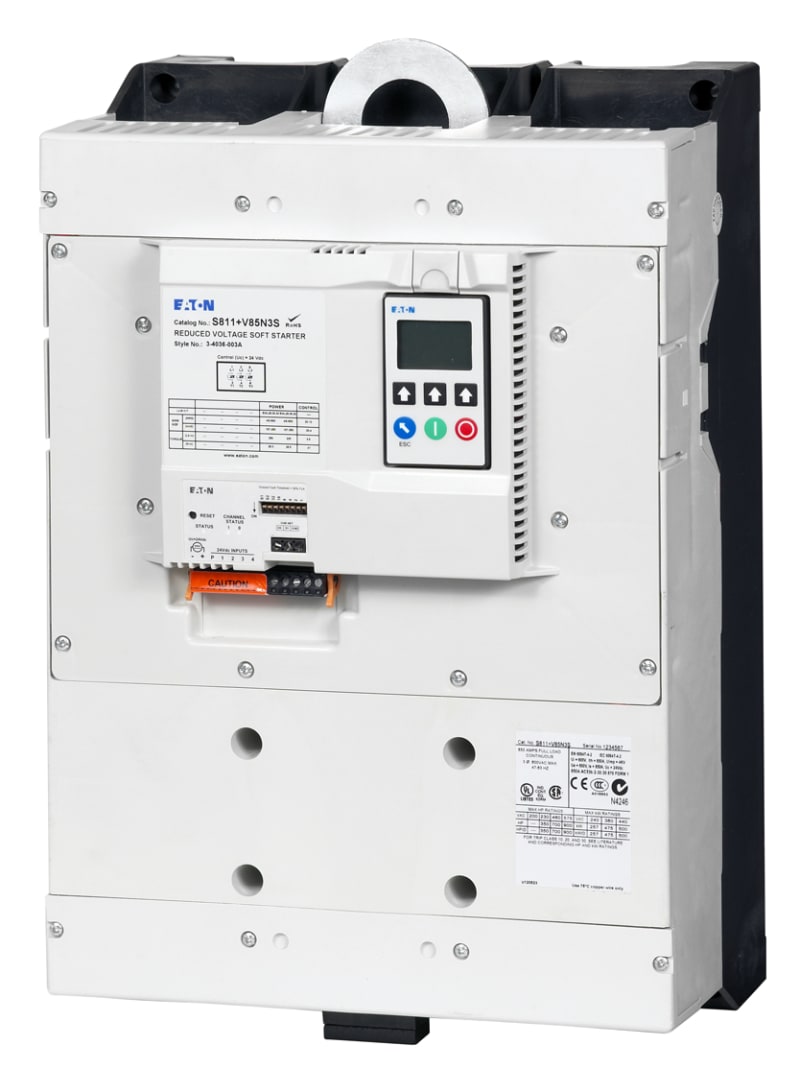

Soft starter S811+, 500A, pump

Eaton Soft starter S811+, 500A, pump (part number S811+V50P3S) is listed under Drives & Controllers / Soft Starters. Sales unit: pcs; Eaton catalogue number: 169000; Depth: 187.8 mm; Height: 420.8 mm; Width: 280.6 mm; Weight: 41.4 kg.

Manufacturer part number (MPN)

S811+V50P3S

EAN / GTIN

4015081654949

Sales unit

pcs

Eaton catalogue number

169000

Depth

187.8 mm

Height

420.8 mm

Width

280.6 mm

Weight

41.4 kg

Certifications

GB14048; CSA; CSA Class No.: 3211-06; UL; C-Tick; CSA22.2-14-1995; CCC; UL Category Control No.: NMFT; UL File No.: E202571; CSA File No.: LR 353; UL 508; CE; CSA-C22.2 No. 14; IEC/EN 60947-4-2

Altitude

Above 2000 m with 0.5 % derating per 100 m; Max. 2000 m

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

-30 °C

Ambient storage temperature - min

-50 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-3; Damp heat, cyclic, to IEC 60068-2-30

Current consumption

100 mA, Control circuit, Digital inputs, External 24 V (no-load); 150 mA, Control circuit, Digital inputs, External 24 V; 1400 mA, Control circuit, Regulator supply; 10 A/150 ms, Control circuit, Regulator supply at peak performance (close bypass) at 24 V DC

Drop-out time

100 ms, DC operated

Drop-out voltage

0 - 3 V, DC operated

Pick-up time

100 ms at DC

Pick-up voltage

21.6 - 26.4 V DC

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Equipment heat dissipation, current-dependent Pvid

25 W

Rated operational current for specified heat dissipation (In)

500 A

Static heat dissipation, non-current-dependent Pvs

25 W

Fault memory

10 Faults

Fitted with

Motor overload protection; Internal bypass contacts; Internal bypass; Display

Functions

Current limitation; Soft start function; Underload monitoring; Single direction; Overload monitoring; Suppression of DC components for motors; Potential isolation between power and control sections; Min. ramp time 1 s - fast switching (semiconductor contactor); Suppression of closing transients

Interfaces

Modbus RTU (built-in)

Class

Adjustable

Connection to SmartWire-DT

No

Degree of protection

IP00; NEMA Other

Frame size

V

Mains voltage - max

600 V

Mains voltage - min

200 V

Mounting position

As required

Overvoltage category

II

Pollution degree

3

Radio interference class

Class A (EN 55011)

Rated impulse withstand voltage (Uimp)

4000 V

Rated insulation voltage (Ui)

660 V

Shock resistance

15 g, Mechanical

Startup class

CLASS 20 (heavy starting duty 3 x Iₑ for 45 s); CLASS 10 (star-delta replacement); CLASS 30 (6 x Iₑ for 30 s)

Suitable for

Branch circuits, not as BCPD, (UL/CSA)

Type

Soft starter for three-phase loads, with control unit and pump algorithm

Voltage type

DC

Input current

4 - 20 mA (Analog inputs)

Number of inputs

1 (current input)

Number of outputs

2 Relay Outputs (programmable)

Output voltage

120 V AC/DC (relay outputs)

Protection

Finger and back-of-hand proof, Protection against direct contact

Rated control voltage (Uc)

24 V DC; 24 V DC (-10 %/+10 %)

Rated operational current (Ie) at AC-11

3 A

Overload cycle

AC-53a: 4.0 - 32: 99 - 3

Rated operational current (Ie) at AC-53

500 A

Rated operational current (Ie) at AC-53, in-delta

865 A

Rated operational voltage (Ue) - max

600 V

Rated operational voltage (Ue) - min

200 V

Short-circuit protection rating

NZMN3-S500, Type “1” coordination, Main conducting paths

Supply frequency

50/60 Hz, fLN, Main circuit

Voltage rating - max

600 V

Assigned motor power at 200/208 V, 60 Hz, 3-phase

150 HP

Assigned motor power at 220/230 V, 60 Hz, 3-phase

200 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

400 HP

Assigned motor power at 600 V, 60 Hz, 3-phase

500 HP

Assigned motor power in-delta at 220/230 V, 60 Hz

350 HP

Assigned motor power in-delta at 460/480 V, 60 Hz

750 HP

Assigned motor power in-delta at 575/600 V, 60 Hz

850 HP

Rated operational power at 220/230 V, 50 Hz

160 kW

Rated operational power at 400 V, 50 Hz

250 kW

Rated operational power at 500 V, 50 Hz

315 kW

Rated operational power in-delta at 220/230 V, 50 Hz

200 kW

Rated operational power in-delta at 400 V, 50 Hz

450 kW

Rated operational power in-delta at 500 V, 50 Hz

450 kW

Application

3-phase motors: Yes Soft starting of three-phase asynchronous motors

Delay time

0 - 120 s, Soft start function, Ramp times

Kickstart

Max. 2000 ms (Kickstart Duration); 100% (Kickstart voltage)

Ramp/run-up time

360 s

Start voltage

Max. 85 %, Soft start function, Start voltage = turn-off voltage

Screwdriver size

0.6 x 3.5 mm, Terminal screws, Control circuit cables

Terminal capacity (flexible with ferrule)

2 x (1 - 2.5) mm², Control circuit cables; 1 x (2.5 - 4) mm², Control circuit cables; 4 x (70 - 240) mm², Main cables; 6 x (120 - 240) mm², Main cables; 2 x (120 - 240) mm², Main cables

Terminal capacity (solid)

2 x (1 - 2.5) mm², Control circuit cables; 2 x (120 - 240) mm², Main cables; 4 x (70 - 240) mm², Main cables; 1 x (2.5 - 4) mm², Control circuit cables; 6 x (120 - 240) mm², Main cables

Terminal capacity (solid/stranded AWG)

2 x (14 - 12), Control circuit cables; 6 x (4 - 500 kcmil), Main cables; 2 x (4 - 500 kcmil), Main cables; 1 x (14 - 12), Control circuit cables; 4 x (4 - 500 kcmil), Main cables

Terminal capacity (stranded)

2 x (1 - 2.5) mm², Control circuit cables; 2 x (120 - 240) mm², Main cables; 6 x (120 - 240) mm², Main cables; 4 x (70 - 240) mm², Main cables; 1 x (2.5 - 4) mm², Control circuit cables

Tightening torque

0.4 Nm, Screw terminals, Control circuit cables

With display

Yes

Rated operating voltage Ue

200–600 V

Rated control supply voltage DC

24 V

Release class

Adjustable

Rated operation current Ie at 40 °C Tu

500 A

Rated power three-phase motor, inline, at 230 V

160 kW

Rated power three-phase motor, inline, at 400 V

250 kW

Rated power three-phase motor, inside delta, at 230 V

200 kW

Rated power three-phase motor, inside delta, at 400 V

450 kW

Rated surrounding temperature without derating

50 °C

Integrated motor overload protection

Yes

Voltage type for actuating

DC

Internal bypass

Yes

Torque control

No

HS Code

8504.40

• EAN 4015081654949
• SAP 1200185996
• Code 82120431
