Eaton

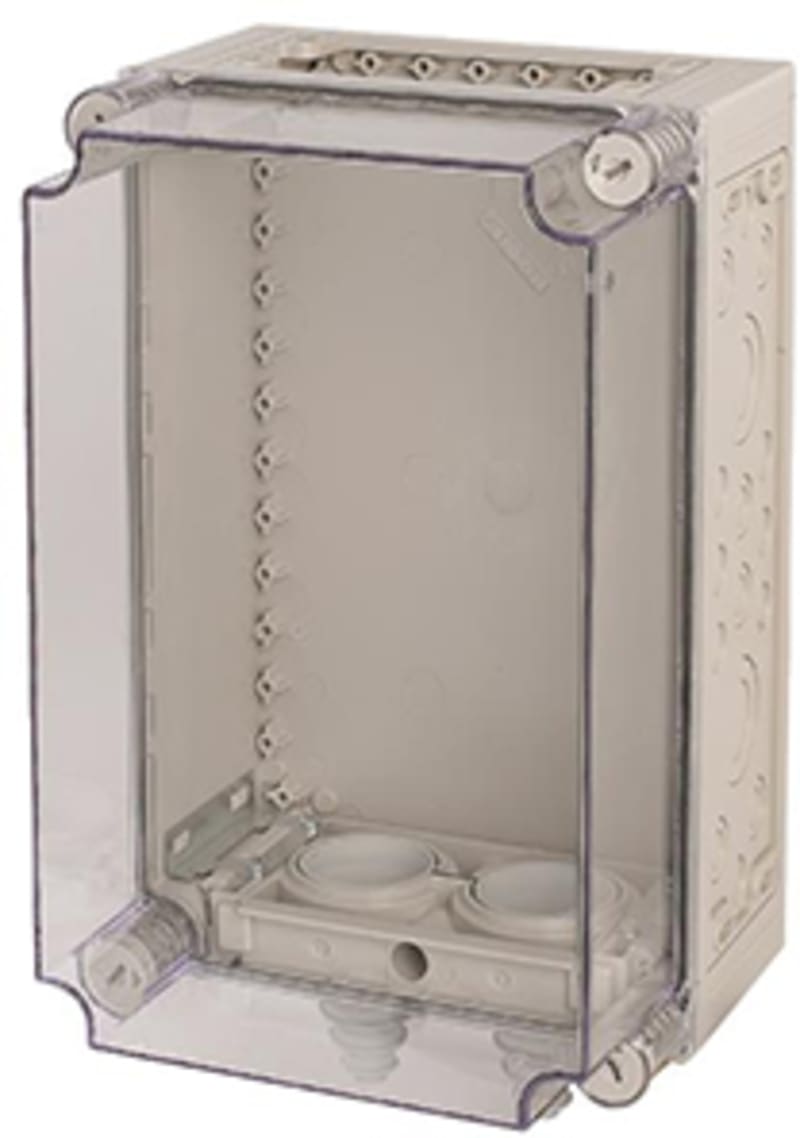

Enclosures H×W×D=375X250X225MM (KST34-200)
Part numberKST34-200EAN / GTIN4015080792666HS code8547.20
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Enclosures H×W×D=375X250X225MM (KST34-200) is listed under Enclosures / Industrial Enclosures. Sales unit: pcs; Eaton catalogue number: 079266; Depth: 225 mm; Height: 375 mm; Width: 250 mm; Weight: 2.564 kg.
Technical Specifications
- Manufacturer part number (MPN)
- KST34-200
- EAN / GTIN
- 4015080792666
- Sales unit
- pcs
- Eaton catalogue number
- 079266
- Depth
- 225 mm
- Height
- 375 mm
- Width
- 250 mm
- Weight
- 2.564 kg
- Compliances
- IEC/EN 60439-1, VDE 0660 Part 500; RoHS conform
- Certifications
- EN 62208; EN 61439-2
- Features
- Cover with overpressure release
- Flammability characteristics of glow rod test
- VDE 0304 Part 3 level IIb, level IIb to IEC 60707
- Functions
- Extension possible
- Protection class
- II
- RAL-number
- 7035
- Special features
- Low-voltage fuses (IEC/EN 60269, VDE 0636) Sealable cover fasteners Sides closed, but with full area knockout Open top Fitting of cable supports in the distribution board with wedge-lock fastener Gland plate can be split, cables can be inserted from the front
- Suitable for
- Lightning protection; Outdoor use
- Used with
- The reference values indicated in the table apply to the basic elements of the distribution board. As far as devices, terminals etc. fitted into the enclosures are concerned, their own specific technical data and rated values apply.
- Color
- Transparent, smoky gray (cover); Light gray (RAL 7035, base); Gray
- Nominal current
- 1600 A
- Type
- Basic enclosure Panel enclosure with gland plates fitted xEnergy Safety Ci
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -5 °C
- Mean ambient operating temperature (24 hours)
- 35 °C
- Circuit integrity
- Other
- Operating altitude without derating - max
- 2000 mm
- Cable entry type
- 14 - 54 mm (2x)
- Cover/door color
- Transparent
- Cover/door model
- Closed
- Cover/door type
- None; Cover
- Creepage and clearance distances
- III/3 to IEC/EN 60439-1 (standard)
- Degree of protection
- IP00 (cable entry open); IP65; IP65 (enclosure); IK10; IP65 (KST cable entries from below); IP64 (KST cable entries from above); Other
- Enclosure material
- Plastic
- Mounting depth with mounting plate
- 200 mm
- Mounting grid
- 25 mm (DIN 43660)
- Number of conduit inlets
- 60
- Number of modules
- 1
- Number of openings (flange plates)
- 3
- Number of rows
- 0
- Plate thickness (cabinet)
- 6 mm
- Plate thickness (cover/door)
- 6 mm
- Relative humidity
- 50 % (at 40 °C); 90 % (at 20 °C)
- Surface finishing
- Galvanized; Passivated
- Surface protection
- Other
- Unit type
- Stand-alone device
- Width in number of modular spacings
- 9
- Built-in depth
- 200 mm
- Internal depth
- 200 mm
- Mounting method
- Surface mounted (plaster)
- Dimensions
- 375×250×225 mm
- Colour
- Grey
- With mounting plate
- No
- Material
- Plastic
- Impact strength
- IK10
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 4015080792666
- SAP 1000788101
- Code 81399500
Product Documentation
Document preview: Enclosures HxBxD=375x250x225mm (KST34-200) — Specification Data Sheet (OEM)
