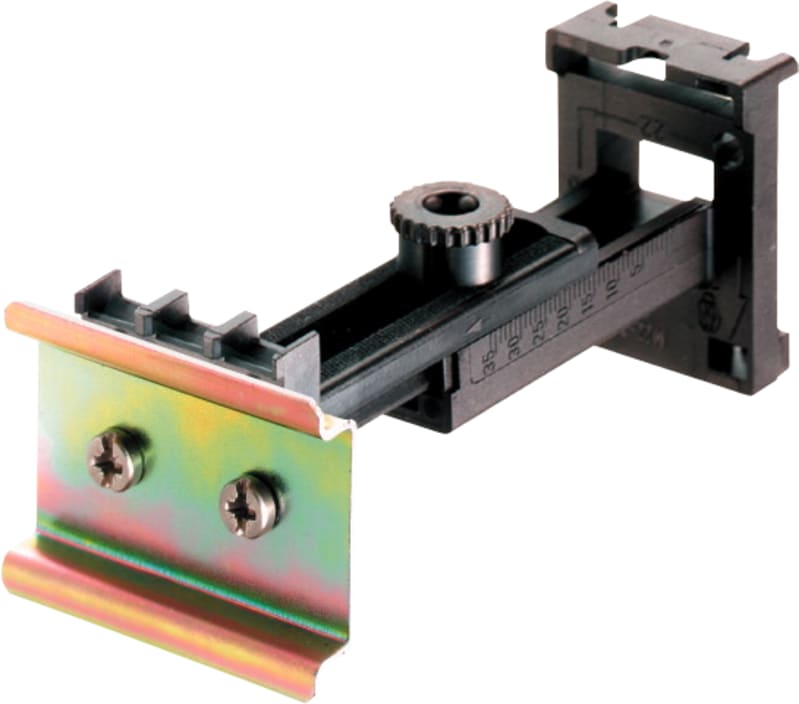

Teleskopfeste M/DIN-RAIL (M22-TA)

Eaton Teleskopfeste M/DIN-RAIL (M22-TA) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 226161; Depth: 80 mm; Height: 40 mm; Width: 45 mm; Weight: 0.043 kg.

Manufacturer part number (MPN)

M22-TA

EAN / GTIN

4015082261610

Sales unit

pcs

Eaton catalogue number

226161

Depth

80 mm

Height

40 mm

Width

45 mm

Weight

0.043 kg

Compliances

CE Marked

Certifications

CSA Std. C22.2 No. 94-91; EN 60947-5; CSA Std. C22.2 No. 14-05; IEC 60947-5; UL 508; VDE; UL; CE; CSA Class No.: 3211-03; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05; CSA File No.: 012528; CSA-C22.2 No. 94-91; IEC/EN 60947-5; CSA; UL File No.: E29184

Fitted with

35 mm top-hat rail (according to IEC/EN 60715)

Functions

For equalization of the mounting depth of rear mounting devices in CI enclosures, and in cabinets with mounting depths of 115 - 155 mm; For mounting of EASY, FAZ, PKZ, DIL etc. weighing ≤ 0.3 kg

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Connection to SmartWire-DT

No

Accessory/spare part type

Accessory

Product category

Accessories Compact PLCs Control relay easyRelay

Used with

PKE; EC4P; easy200/500/700/800; PKZM0; MFD-CP8

Accessory

Yes

Spare part

No

Country of origin

Germany

HS Code

8538.90
