Eaton

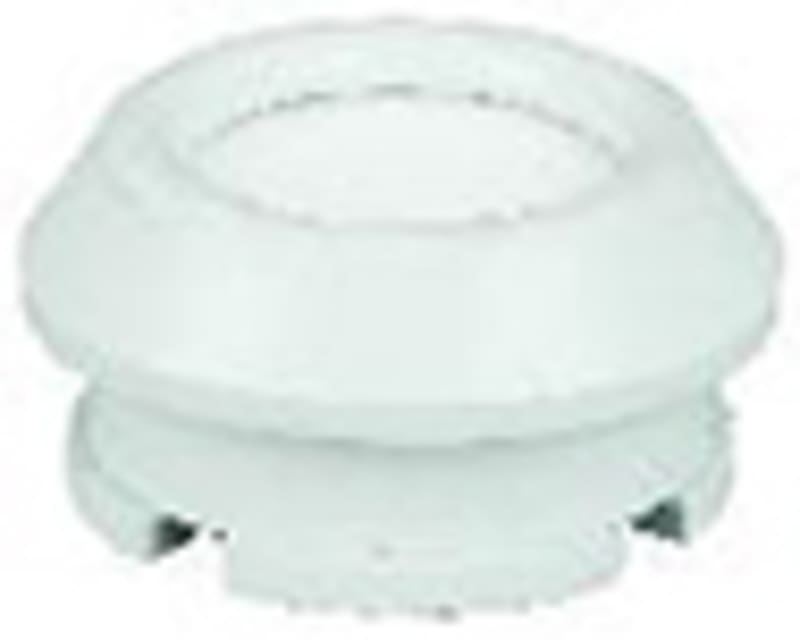

Pressure-kompensasjonnippel (KT-M25F)
Part numberKT-M25FEAN / GTIN4015082245566HS code3926.90
Electrical Components
Cable Glands
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Pressure-kompensasjonnippel (KT-M25F) is listed under Electrical Components / Cable Glands. Sales unit: pcs; Package quantity: 100 pcs; Eaton catalogue number: 224556; Depth: 15 mm; Height: 25 mm; Width: 25 mm.
Technical Specifications
- Manufacturer part number (MPN)
- KT-M25F
- EAN / GTIN
- 4015082245566
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Eaton catalogue number
- 224556
- Depth
- 15 mm
- Height
- 25 mm
- Width
- 25 mm
- Weight
- 0.007 kg
- Compliances
- RoHS conform
- Features
- Watertight
- Special features
- Fitting below or on side of enclosure Ventilation grommet with filter
- Stress fracture risk
- Relative high
- Used with
- CS-...; Metric; General switchboard accessory; Accessory panel building
- Accessory/spare part type
- Pressure compensating plug, pressure compensating grommets; Cable management
- Color
- Pebble gray (RAL 7032) + white; Gray
- Model
- Closed
- Type
- Accessory panel building General switchboard accessory
- Temperature resistance
- Temperature resistant: 0 °C - 60 °C, short-time up to approx. 80 °C
- Bore diameter
- 25.5 mm
- Cable entry type
- M25; Round
- Chemical resistance
- Resistant against, diluted non-oxidising acids, lye and salt, alcohol, aromatic and halogen-free hydrocarbon, surfactant.
- Degree of protection
- IP50; Other
- For wall thickness - max
- 4.5 mm
- For wall thickness - min
- 1 mm
- Material
- Other; PE and PVC
- Material quality
- Polyvinyl chloride (PVC)
- Number of cables - max
- 1
- Number of cables - min
- 1
- Opening diameter
- 25.5 mm
- Surface protection
- Other
- Thread size
- M25
- Thread size (PG)
- 0
- Operating temperature - max
- 40 °C
- Operating temperature - min
- -5 °C
- Colour
- Grey
- Watertight
- Yes
- Halogen free
- No
- Cable entry
- Round
- With strain relief
- No
- Operating temperature
- -5–40 °C
- Angle model
- No
- For wall thickness
- 1–4.5 mm
- Shrink technique
- No
- Number of cables
- 1
- Suitable for cable gland
- No
- Gastight
- No
- Fire resistant
- No
- Country of origin
- Austria
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4015082245566
- SAP 1200562680
- Code 82906040
Product Documentation
Document preview: Trykk-kompensasjonnippel (KT-M25F) — Specification Data Sheet (OEM)
More from Eaton
Eaton
Eaton IZMX40B3-V08F-1
Eaton
Eaton 183091 Empty Section Cover
XNH00-XKSA-36
Eaton
Eaton CWIZ-04/17 4-Gang Rocker Matte Alpine White with 0/1 Markings
Eaton
insulated spacer HSSB 80 (XBSB-S)
Eaton

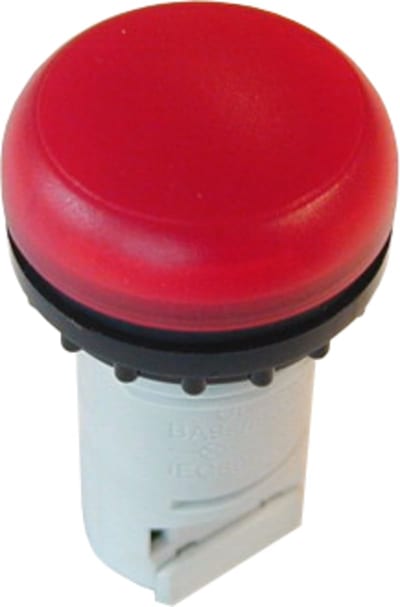

SIGNALL.Compact RED Flat BA9S
M22-LC-R
Eaton

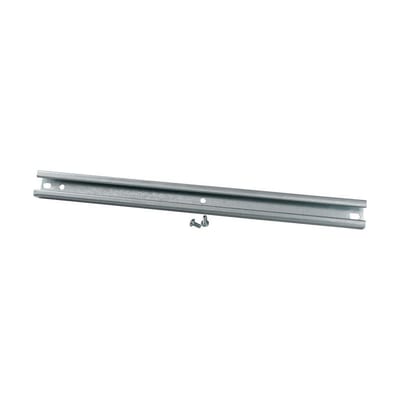

Cable Fixing Bracket B=1350
XAR135
Eaton

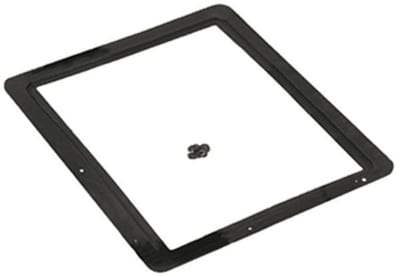

Eaton IZMX-DEG16-F-1
Eaton

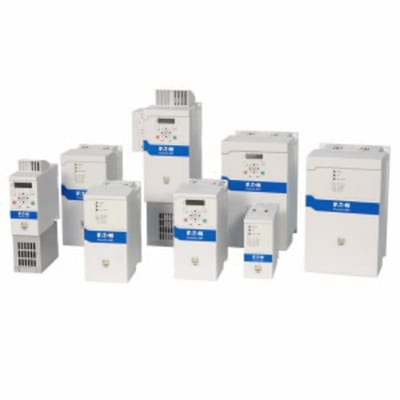

variable-frequency drive DM1-121D6EB-S20S-EM
