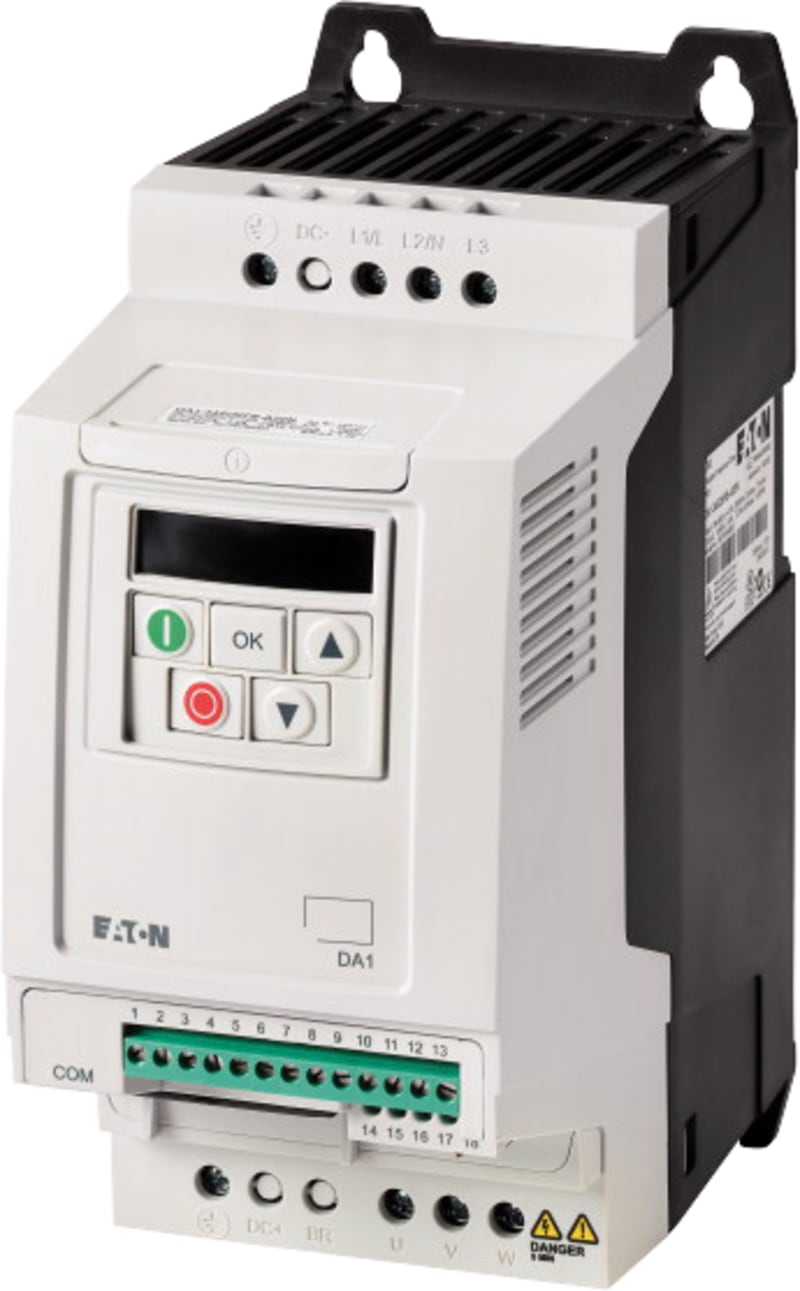

DA1 variable-frequency drive, 1-3 230V, 1.5 kW

Eaton DA1 variable-frequency drive, 1-3 230V, 1.5 kW (part number DA1-127D0FB-A20C) is listed under Drives & Controllers / Variable Frequency Drives. HS code: 8504.40; Sales unit: pcs; Eaton catalogue number: 169081; Depth: 186 mm; Height: 231 mm; Width: 107 mm.

Manufacturer part number (MPN)

DA1-127D0FB-A20C

EAN / GTIN

4015081655670

HS code

8504.40

Sales unit

pcs

Eaton catalogue number

169081

Depth

186 mm

Height

231 mm

Width

107 mm

Weight

1.8 kg

Catalog Notes

The brake resistors are assigned based on the maximum rated power of the variable frequency drive. Additional brake resistors and designs (e.g. different duty cycles) are available upon request.

Apparent power at 230 V

2.79 kVA

Apparent power at 240 V

2.91 kVA

Braking resistance

50 Ω

Braking torque

Max. 100 % of rated operational current Ie with external braking resistor - Main circuit; Max. 30 % MN, Standard - Main circuit; Max. 100 % of rated operational current Ie, variable, DC - Main circuit

Switch-on threshold for the braking transistor

390 VDC

Altitude

Max. 1000 m; Max. 4000 m; Above 1000 m with 1 % derating per 100 m

Ambient operating temperature - max

50 °C

Ambient storage temperature - max

60 °C

Ambient operating temperature - min

-10 °C

Ambient operating temperature at 150% overload - max

50 °C

Ambient operating temperature at 150% overload - min

-10 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

< 95 average relative humidity (RH), no condensation, no corrosion

Number of inputs (analog)

2

Number of inputs (digital)

5

Number of outputs (analog)

2

Number of outputs (digital)

2

Number of relay outputs

2 (parameterizable, 1 N/O and 1 changeover contact, 6 A (250 V, AC-1) / 5 A (30 V, DC-1))

Rated control voltage (Uc)

24 V DC (external, max. 100 mA)

Equipment heat dissipation, current-dependent Pvid

63 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

0 W

Rated operational current for specified heat dissipation (In)

7 A

Static heat dissipation, non-current-dependent Pvs

0 W

Communication interface

EtherCAT, optional; Modbus RTU, built in; Ethernet IP, optional; PROFIBUS, optional; DeviceNet, optional; Modbus-TCP, optional; OP-Bus (RS485), built in; SmartWire-DT, optional; CANopen®, built in; PROFINET, optional

Connection to SmartWire-DT

Yes; In conjunction with DX-NET-SWD1 SmartWire DT module

Degree of protection

IP20; NEMA Other

Electromagnetic compatibility

1st and 2nd environments (according to EN 61800-3)

Fitted with

Internal DC link; Control unit; Additional PCB protection; IGBT inverter; PC connection; Radio interference suppression filter; Brake chopper; Breaking resistance; 7-digital display assembly

Frame size

FS2

Functions

4-quadrant operation possible

Mounting position

Vertical

Product Category

Variable frequency drives

Protection

Finger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)

Protocol

DeviceNet; PROFIBUS; CAN; Other bus systems; EtherNet/IP; MODBUS; PROFINET IO; TCP/IP

Safety function/level

STO (Safe Torque Off, SIL2, PLc Cat 2)

Suitable for

Branch circuits, (UL/CSA)

Efficiency

95.8 % (η)

Heat dissipation at current/speed

30 W at 25% current and 0% speed; 38 W at 25% current and 50% speed; 39 W at 50% current and 0% speed; 46 W at 50% current and 50% speed; 54 W at 50% current and 90% speed; 55 W at 100% current and 0% speed; 66 W at 100% current and 50% speed; 77 W at 100% current and 90% speed

Input current ILN at 150% overload

12.9 A

Leakage current at ground IPE - max

2.49 mA

Mains switch-on frequency

Maximum of one time every 30 seconds

Mains voltage - max

240 V

Mains voltage - min

200 V

Operating mode

Speed control with slip compensation; U/f control; Optional: Vector control with feedback (CLV); Sensorless vector control (SLV)

Output frequency - max

500 Hz

Output frequency - min

0 Hz

Output voltage (U2)

230 V AC, 3-phase; 240 V AC, 3-phase

Overload current IL at 150% overload

10.5 A

Rated control supply voltage

10 V DC (Us, max. 10 mA)

Rated frequency - max

62 Hz

Rated frequency - min

48 Hz

Rated operational current (Ie) at 150% overload

7 A

Rated operational power at 220/230 V, 50 Hz

1-phase

1.5 kW

Rated operational voltage

230 V AC, 1-phase; 240 V AC, 1-phase

Resolution

0.1 Hz (Frequency resolution, setpoint value)

Short-circuit protection rating

20 A, UL (Class CC or J), Safety device (fuse or miniature circuit-breaker), Power Wiring

Starting current - max

200 %, IH, max. starting current (High Overload), for 4 seconds every 40 seconds, Power section

Supply frequency

50/60 Hz

Switching frequency

16 kHz, 4 - 32 kHz adjustable (audible), fPWM, Power section, Main circuit

System configuration type

AC supply systems with earthed center point

Voltage rating - max

240 VAC

Assigned motor current IM at 220 - 240 V, 60 Hz

150% overload

6.8 A

Assigned motor current IM at 230 V, 50 Hz

150% overload

6.3 A

Assigned motor power at 230/240 V, 60 Hz

1-phase

2 HP

HS Code

8504.40

• EAN 4015081655670
• SAP 1000599590
• Code 8219170
