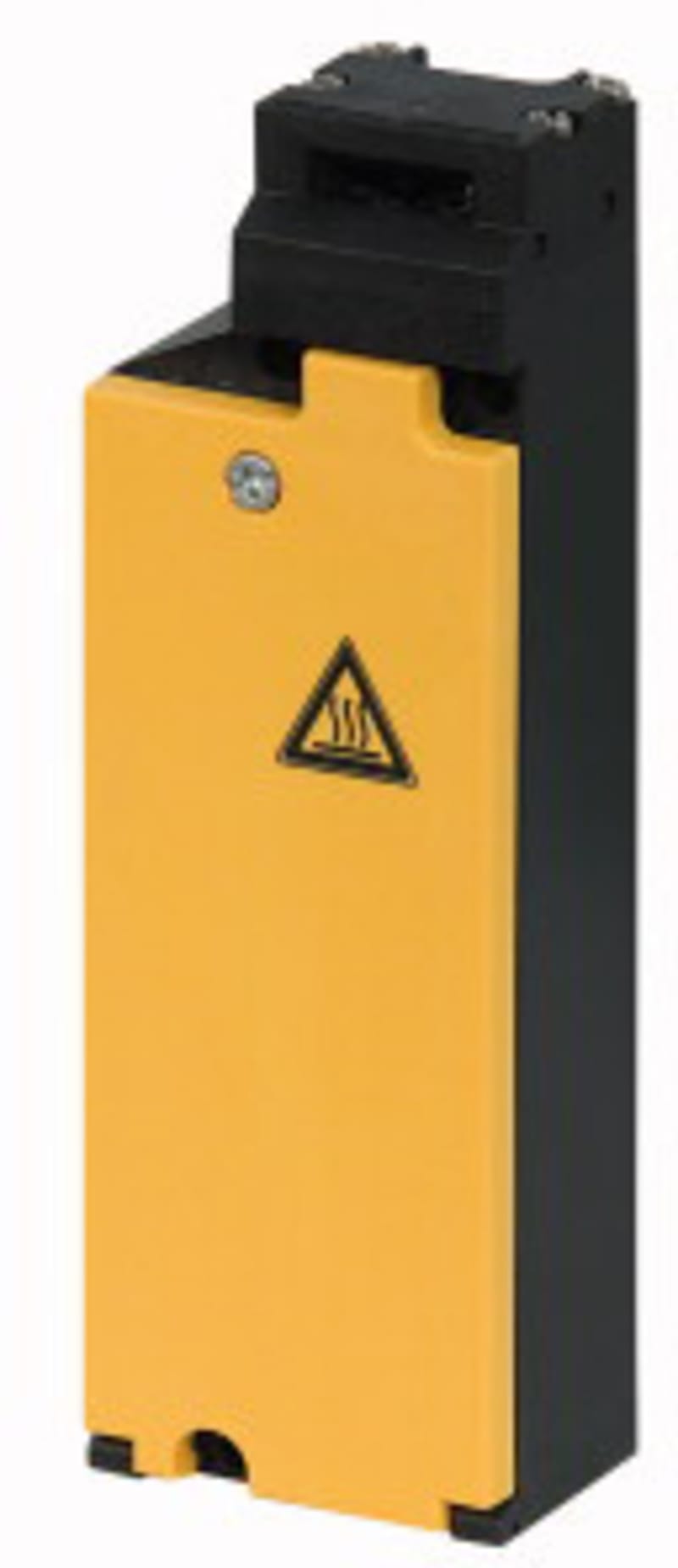

Eaton LS-S11-24DFT-ZBZ/X Position Switch 1NO+1NC 24V DC Spring Interlock

Eaton LS-S11-24DFT-ZBZ/X is a safety position switch with solenoid interlock and spring-locking, wired with one normally open and one normally closed contact. Rated for 24 V DC magnet drive with 6 A conventional current and a minimum positive-opening force of 50 N. Mechanical holding force reaches 1700 N depending on actuator, with shock resistance of 10 g and operating temperature -25 to 70 °C. Certified to IEC/EN 60947-5, UL 508 and CSA C22.2 No. 14. Eaton catalogue number 106829.

Manufacturer part number (MPN)

LS-S11-24DFT-ZBZ/X

EAN / GTIN

4015081065899

Sales unit

pcs

Eaton catalogue number

106829

Depth

55 mm

Height

170 mm

Width

37 mm

Weight

0.43 kg

Certifications

CE; CSA Class No.: 3211-03; CSA-C22.2 No. 14; IEC/EN 60947; UL File No.: E29184; CSA; CSA File No.: 012528; UL; UL Category Control No.: NKCR; IEC/EN 60947-5; UL 508

Actuating force at beginning/end of stroke

25 N/15 N (plug-in/pull-out)

Actuator type

None

Mechanical holding force

1600 N (according to GS-ET-19 (04/2004), XWA, XFG, XF); 1700 N (according to GS-ET-19 (04/2004), XG, XW, XNG); 1200 N (according to GS-ET-19 (04/2004), XNW)

Mounting position

As required

Shock resistance

10 g, Standard-action contact, Mechanical, Half-Sinusoidal shock 20 ms

Ambient operating temperature - max

70 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Force for positive opening - min

50 N

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

1

Number of contacts (normally open contacts)

1

Heat dissipation per pole, current-dependent Pvid

0.13 W

Rated operational current for specified heat dissipation (In)

6 A

Power consumption

8 W at 24 V DC (electromechanical actuation); 8 VA at 120 V AC (electromechanical actuation); 11 VA at 230 V AC (electromechanical actuation)

Rated control supply voltage

24 V DC (Us, for magnet drive)

Rated insulation voltage (Ui)

400 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

6 A

Rated operational current (Ie) at AC-15, 24 V

6 A

Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V

4 A

Rated operational current (Ie) at DC-13, 110 V

0.8 A

Rated operational current (Ie) at DC-13, 125 V

0.8 A

Rated operational current (Ie) at DC-13, 220 V, 230 V

0.3 A

Rated operational current (Ie) at DC-13, 24 V

3 A

Short-circuit protection rating

Max. 6 A gG/gL, Fuse, Contacts

Supply frequency

Max. 400 Hz, Contacts

Voltage tolerance

1.1 x Us, Pick-up and drop-out values; 0.85 x Us, Pick-up and drop-out values

Rated conditional short-circuit current (Iq)

1 kA

Electric connection type

Cable entry metrical

Enclosure material

Plastic; Insulated material

Features

Expandable; Forced opening

Fitted with

Auxiliary release mechanism; Interlock monitoring

Switch function type

Slow-action switch

Connection type

Screw terminal

Degree of protection

IP65; NEMA Other

Duty factor

100 % (Magnet)

Lifespan

1,000,000 mechanical Operations

Operating frequency

800 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Basic units with spring-powered interlock (closed-circuit principle)

Rated impulse withstand voltage (Uimp)

4000 V AC

Repetition accuracy

0.02 mm (Contacts/switching capacity)

Suitable for

Safety functions

Type

Position switch Safety position switch

Explosion safety category for dust

None

Explosion safety category for gas

None

Screw size

PH1, Terminal screw

Terminal capacity (flexible with ferrule)

1 x (0.5 - 1.5) mm²; 2 x (0.5 - 1.5) mm²

Terminal capacity (solid)

1 x (0.75 - 2.5) mm²; 2 x (0.75 - 1.5) mm²

Tightening torque

0.9 Nm, Screw terminals

Switching function

Slow-action switch

Rated operation current Ie at AC-15, 230 V

6 A

Rated operation current Ie at DC-13, 230 V

0.3 A

Housing material

Plastic

Suitable for safety functions

Yes

With status indication

No

Type of interface for safety communication

None

Construction type housing

Cuboid

Forced opening

Yes

Number of safety auxiliary contacts

1

Type of interface

None

Output electronic

No

Rated operation current Ie at AC-15, 125 V

6 A

Rated operation current Ie at AC-15, 24 V

6 A

Rated operation current Ie at DC-13, 125 V

0.8 A

Rated operation current Ie at DC-13, 24 V

3 A

Width sensor

60 mm

Height of sensor

173 mm

Length of sensor

39 mm

Switching function latching

No

Ambient temperature during operating

25–70 °C

Number of contacts as normally closed contact

1

Number of contacts as normally open contact

1

Country of origin

Germany

HS Code

8536.50
