Eaton

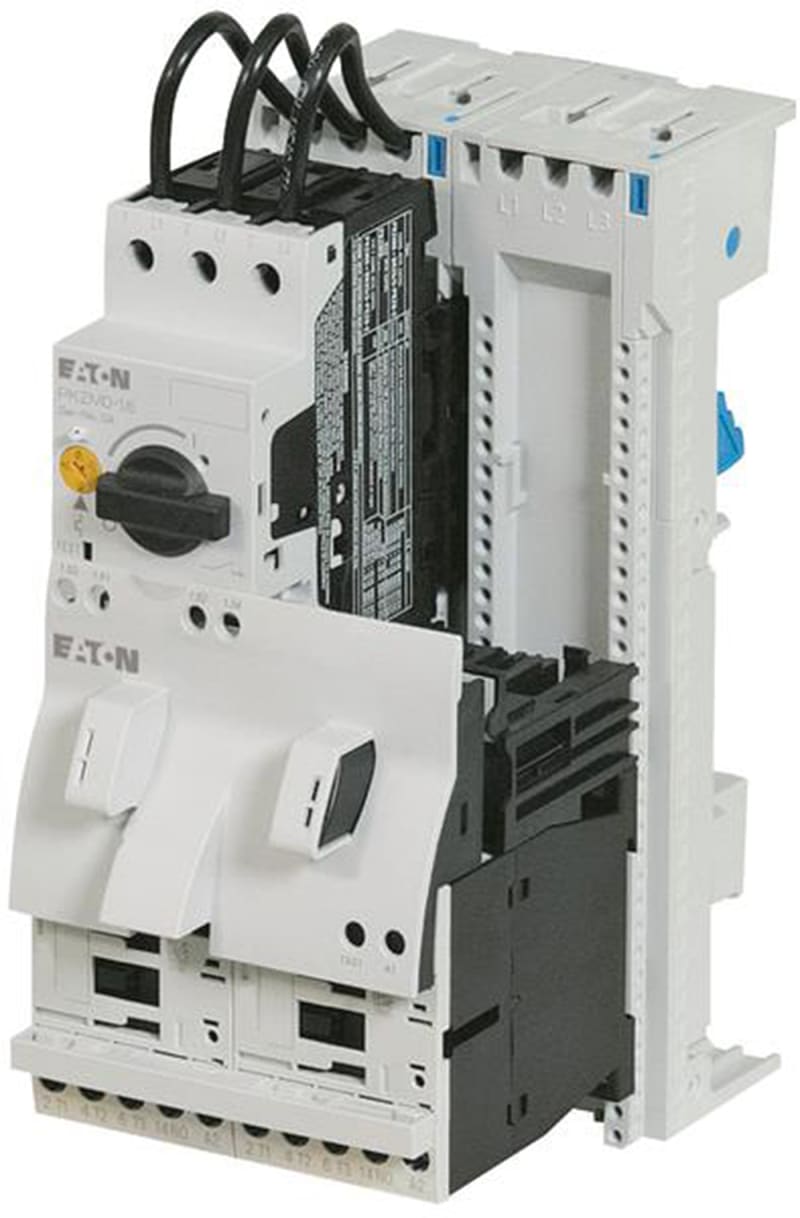

Direction of rotation starter (MSC-R-0,4-M7(24VDC)/BBA)

Name: Direction of rotation starter (MSC-R-0,4-M7(24VDC)/BBA)
Brand: Eaton
SKU: MSC-R-0,4-M7(24VDC)/BBA

Part numberMSC-R-0,4-M7(24VDC)/BBAEAN / GTIN4015081028375HS code8536.50

Drives & Controllers

Motor Starters

MOQ:1

Pricing

Request a quote

We reply within 24 hours

Request Quote

Email Datasheet

Product Description

Eaton MSC-R-0,4-M7(24VDC)/BBA MSC-R-0,4-M7(24VDC)/BBA.

Technical Specifications

Manufacturer part number (MPN): MSC-R-0,4-M7(24VDC)/BBA
EAN / GTIN: 4015081028375
Sales unit: pcs
Eaton catalogue number: 102998
Depth: 200 mm
Height: 153 mm
Width: 90 mm
Weight: 1.63 kg
Certifications: CSA Class No.: 3211-04; UL; CSA-C22.2 No. 14-10; IEC/EN 60947-4-1; CSA-C22.2 No. 14 (on request); UL 508 (on request); UL Category Control No.: NKJH; UL File No.: E123500; UL60947-4-1A; CE; CSA; CSA File No.: 012528
Altitude: Max. 2000 m
Ambient operating temperature - max: 55 °C
Ambient operating temperature - min: -25 °C
Equipment heat dissipation, current-dependent Pvid: 5.7 W
Heat dissipation per pole, current-dependent Pvid: 1.9 W
Rated operational current for specified heat dissipation (In): 0.4 A
Static heat dissipation, non-current-dependent Pvs: 2.6 W
Rated operational current (Ie): 0.31 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V: 0.4 A
Rated operational power at AC-3, 220/230 V, 50 Hz: 0.06 kW
Rated operational power at AC-3, 380/400 V, 50 Hz: 0.09 kW
Rated operational voltage: 230 - 415 V AC
Switching capacity (auxiliary contacts, general use): 1 A, 250 V DC, (UL/CSA); 15 A, 600 V AC, (UL/CSA)
Switching capacity (auxiliary contacts, pilot duty): P300, DC operated (UL/CSA); A600, AC operated (UL/CSA)
Fitted with: Short-circuit release
Functions: Temperature compensated overload protection
Class: CLASS 10 A
Connection: Screw terminals
Connection to SmartWire-DT: No
Coordination type: 2
Degree of protection: IP20; NEMA Other
Model: IEC/UL starter
Mounting method: Mounting on Busbar 60 mm
Number of auxiliary contacts (normally closed contacts): 0
Number of auxiliary contacts (normally open contacts): 0
Overload release current setting - max: 0.4 A
Overload release current setting - min: 0.25 A
Overvoltage category: III
Pollution degree: 3
Rated impulse withstand voltage (Uimp): 6000 V AC
Suitable for: Also motors with efficiency class IE3
Type: Starter with Bi-Metal release
Voltage type: DC
Power consumption (sealing) at DC: 3 W
Rated control supply voltage (Us) at DC - max: 24 V
Rated control supply voltage (Us) at DC - min: 24 V
Short-circuit release (Irm) - max: 6.2 A
With transformer: No
Power consumption: 2.6 W
Rated operation power at AC-3, 400 V: 0.09 kW
Suitable for emergency stop: No
Rated operation current Ie: 0.31 A
Overload release current setting: 0.25–0.4 A
Supporting protocol for LON: No
Supporting protocol for TCP/IP: No
Supporting protocol for ASI: No
Supporting protocol for PROFIBUS: No
Supporting protocol for CAN: No
Supporting protocol for INTERBUS: No
Supporting protocol for Modbus: No
Supporting protocol for Data-Highway: No
Supporting protocol for DeviceNet: No
Supporting protocol for SUCONET: No
Supporting protocol for other bus systems: No
External reset possible: No
Suitable for rail mounting: Yes
Rated control supply voltage DC: 24 V
Supporting protocol for SERCOS: No
Supporting protocol for INTERBUS-Safety: No
Release class: CLASS 10
With short-circuit release: Yes
With fuse: No
Type of electrical connection of main circuit: Screw connection
Supporting protocol for AS-Interface Safety at Work: No
Supporting protocol for DeviceNet Safety: No
Supporting protocol for EtherNet/IP: No
Supporting protocol for Foundation Fieldbus: No
Supporting protocol for PROFINET CBA: No
Supporting protocol for PROFINET IO: No
Supporting protocol for PROFIsafe: No
Supporting protocol for SafetyBUS p: No
Voltage type for actuating: DC
Type of motor starter: Reversing starter
Rated operation power at AC-3, 230 V, 3-phase: 0.06 kW
Rated operation current at AC-3, 400 V: 0.4 A
Ambient temperature, upper operating limit: 60 °C
Temperature compensated overload protection: Yes
Rated conditional short-circuit current, type 2, 400 V: 50000 A
Rated conditional short-circuit current, type 2, 230 V: 50000 A
Coordination class according to IEC 60947-4-3: Class 2
Country of origin: Germany

Standards & Compliance

HS Code: 8536.50

Cross References

EAN 4015081028375
SAP 1200300566
Code 82269919

Product Documentation

Dreieretning starter (MSC-R-0,4-M7(24VDC)/BBA) — Specification Data Sheet (OEM)Download

Direction of rotation starter (MSC-R-0,4-M7(24VDC)/BBA) — Specification sheet Download

Document preview: Dreieretning starter (MSC-R-0,4-M7(24VDC)/BBA) — Specification Data Sheet (OEM)
