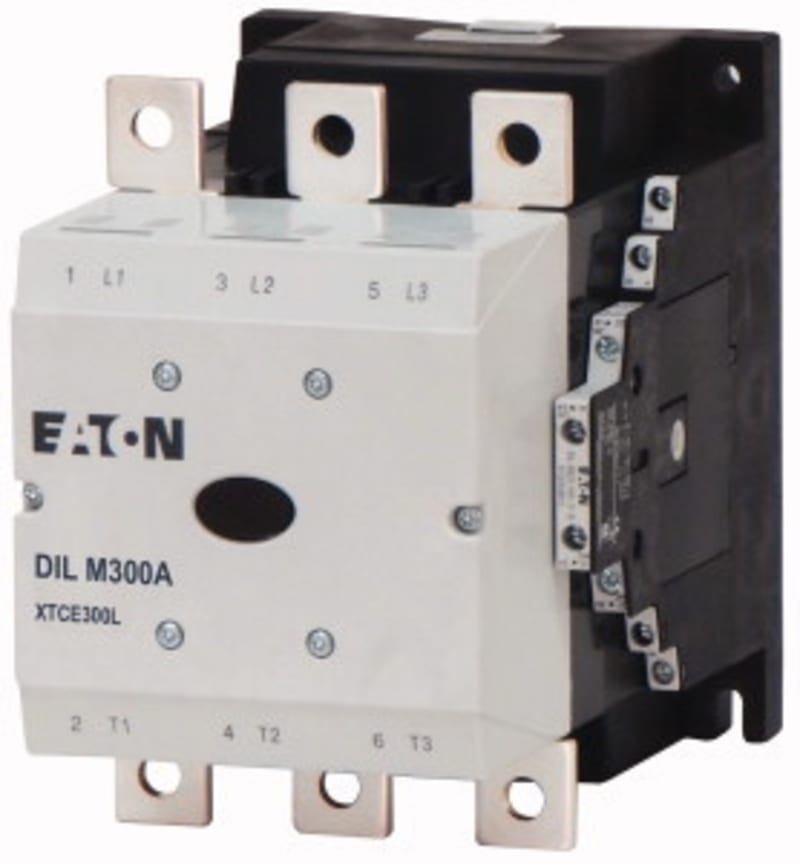

Contactor DILM300A/22(RA250)

Eaton DILM300A/22(RA250) Contactor, 380 V 400 V 160 kW, 2 N/O, 2 NC, RA 250: 110 - 250 V 40 - 60 Hz/110 - 350 V DC.

Manufacturer part number (MPN)

DILM300A/22(RA250)

EAN / GTIN

4015081363346

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

139556

Depth

208 mm

Height

189 mm

Width

140 mm

Weight

7.1 kg

Catalog Notes

Contacts according to EN 50012 EN 45545 - Fire protection on railway vehicles: Fire protection class of all plastics according to UL94: V-0 / plastic weight in total: 1.872 kg Conventional thermal current Ith of main contacts (1-pole, open) at 60°

Conventional thermal current Ith (1-pole, enclosed)

788 A

Conventional thermal current Ith (3-pole, enclosed)

315 A

Conventional thermal current Ith at 40°C (3-pole, open)

490 A

Conventional thermal current Ith at 50°C (3-pole, open)

438 A

Conventional thermal current Ith at 55°C (3-pole, open)

418 A

Conventional thermal current Ith at 60°C (3-pole, open)

400 A

Conventional thermal current Ith of main contacts (1-pole, open)

1000 A

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-40 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-40 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of auxiliary contacts (normally closed contacts)

2

Number of auxiliary contacts (normally open contacts)

2

Number of contacts (normally closed contacts)

2

Number of contacts (normally open contacts)

2

Equipment heat dissipation, current-dependent Pvid

21 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

7 W

Rated operational current for specified heat dissipation (In)

300 A

Static heat dissipation, non-current-dependent Pvs

5.5 W

Inrush current

Max. 30 x Ie (peak)

Rated breaking capacity at 1000 V

950 A

Rated breaking capacity at 220/230 V

3000 A

Rated breaking capacity at 380/400 V

3000 A

Rated breaking capacity at 500 V

3000 A

Rated breaking capacity at 660/690 V

3000 A

Rated insulation voltage (Ui)

1000 V

Rated making capacity (cos phi to IEC/EN 60947)

3000 A

Rated operational current (Ie)

177 A at 690 V (Individual compensation, three-phase capacitors, open); 307 A at up to 525 V (Individual compensation, three-phase capacitors, open)

Rated operational current (Ie) at AC-3, 1000 V

95 A

Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V

300 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

300 A

Rated operational current (Ie) at AC-3, 440 V

300 A

Rated operational current (Ie) at AC-3, 500 V

300 A

Rated operational current (Ie) at AC-3, 660 V, 690 V

185 A

Rated operational current (Ie) at AC-4, 1000 V

76 A

Rated operational current (Ie) at AC-4, 220 V, 230 V, 240 V

240 A

Rated operational current (Ie) at AC-4, 440 V

240 A

Rated operational current (Ie) at AC-4, 500 V

240 A

Rated operational current (Ie) at AC-4, 660 V, 690 V

150 A

Rated operational power at AC-3, 1000 V, 50 Hz

132 kW

Rated operational power at AC-3, 240 V, 50 Hz

100 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

160 kW

Rated operational power at AC-3, 415 V, 50 Hz

175 kW

Rated operational power at AC-3, 440 V, 50 Hz

185 kW

Rated operational power at AC-3, 500 V, 50 Hz

210 kW

Rated operational power at AC-3, 690 V, 50 Hz

170 kW

Rated operational power at AC-4, 1000 V, 50 Hz

108 kW

Rated operational power at AC-4, 220/230 V, 50 Hz

75 kW

Rated operational power at AC-4, 240 V, 50 Hz

82 kW

Rated operational power at AC-4, 415 V, 50 Hz

142 kW

Rated operational power at AC-4, 440 V, 50 Hz

150 kW

Rated operational power at AC-4, 500 V, 50 Hz

170 kW

Rated operational power at AC-4, 660/690 V, 50 Hz

137 kW

Rated operational voltage (Ue) at AC - max

1000 V

Safe isolation

1000 V AC, Between coil and contacts, According to EN 61140

Special purpose rating of definite purpose rating

2160 A, LRA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 1800 A, LRA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 300 A, FLA 600 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA); 360 A, FLA 480 V 60 Hz 3-ph, 100,000 cycles acc. to UL 1995, (UL/CSA)

Accessories

Fitting options auxiliary contacts: on the side: 2 x DILM820-XHI11(V)-SI; 2 x DILM820-XHI11-SA

Application

Contactors for Motors

Connection

Screw terminals

Degree of protection

IP00

Electromagnetic compatibility

Designed for operation in industrial environments. Its use in residential environments may cause radio-frequency interference, requiring additional noise suppression.

Fitted with

Suppressor circuit in actuating electronics

Lifespan, electrical

100,000 Operations (at Condensor operation)

Lifespan, mechanical

10,000,000 Operations (DC operated); 10,000,000 Operations (AC operated)

Operating frequency

3000 mechanical Operations/h (DC operated); 200 Operations/h; 3000 mechanical Operations/h (AC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof with terminal shroud or terminal block, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Resistance

500 mΩ (Admissible transitional contact resistance - of the external control circuit device when actuating A11)

Shock resistance

10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 8 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Signal level

5 V - 15 V, PLC signal level (A3 - A4) to IEC/EN 61131-2 (type 2), Magnet systems

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running; AC-4: Normal AC induction motors: starting, plugging, reversing, inching

Voltage type

AC/DC

Drop-out voltage

AC operated: 0.2 x US max - 0.6 x US min, AC operated; 0.2 x US max - 0.6 x US min, DC operated

Duty factor

100 %

Pick-up voltage

0.7 - 1.15 V AC x Us; 0.7 - 1.15 V DC x Us

Power consumption

110 kW; Control transformer with uk ≤ 6%

Power consumption, pick-up, 50 Hz

240 VA, Pull-in power, Coil in a cold state and 1.0 x Us

Power consumption, pick-up, 60 Hz

240 VA, Pull-in power, Coil in a cold state and 1.0 x Us

Power consumption, sealing, 50 Hz

5.5 W, Coil in a cold state and 1.0 x Us; 10.5 VA, Coil in a cold state and 1.0 x Us

Power consumption, sealing, 60 Hz

10.5 VA, Coil in a cold state and 1.0 x Us; 5.5 W, Coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC, 50 Hz - max

250 V

Rated control supply voltage (Us) at AC, 50 Hz - min

110 V

Rated control supply voltage (Us) at AC, 60 Hz - max

250 V

Rated control supply voltage (Us) at AC, 60 Hz - min

110 V

Rated control supply voltage (Us) at DC - max

250 V

Rated control supply voltage (Us) at DC - min

110 V

Switching time (AC operated, make contacts, closing delay) - max

100 ms

Switching time (AC operated, make contacts, opening delay) - max

110 ms

Assigned motor power at 200/208 V, 60 Hz, 3-phase

100 HP

Assigned motor power at 230/240 V, 60 Hz, 3-phase

125 HP

Assigned motor power at 460/480 V, 60 Hz, 3-phase

250 HP

Assigned motor power at 575/600 V, 60 Hz, 3-phase

300 HP

Short-circuit current rating (basic rating)

700 A, max. Fuse, SCCR (UL/CSA); 600 A, max. CB, SCCR (UL/CSA); 18 kA, SCCR (UL/CSA)

Short-circuit current rating (high fault at 480 V)

250 A, max. CB, SCCR (UL/CSA); 18 kA, Fuse, SCCR (UL/CSA); 700 A, Class L, max. Fuse, SCCR (UL/CSA); 65 kA, CB, SCCR (UL/CSA); 700 A, Class L/450 A, Class J, max. Fuse, SCCR (UL/CSA); 18/100 kA, Fuse, SCCR (UL/CSA)

Short-circuit current rating (high fault at 600 V)

700 A, Class J, max. Fuse, SCCR (UL/CSA); 18 kA, CB, SCCR (UL/CSA); 18 kA, Fuse, SCCR (UL/CSA); 600 A, max. CB, SCCR (UL/CSA); 700 A, Class L/450 A, Class J, max. Fuse, SCCR (UL/CSA); 18/100 kA, Fuse, SCCR (UL/CSA)

Short-circuit protection rating (type 1 coordination) at 1000 V

200 A gG/gL

Short-circuit protection rating (type 1 coordination) at 400 V

500 A gG/gL

Short-circuit protection rating (type 1 coordination) at 690 V

400 A gG/gL

Short-circuit protection rating (type 2 coordination) at 1000 V

160 A gG/gL

Short-circuit protection rating (type 2 coordination) at 400 V

400 A gG/gL

Short-circuit protection rating (type 2 coordination) at 690 V

315 A gG/gL

Switching capacity (auxiliary contacts, general use)

15 A, 600 V AC, (UL/CSA); 1 A, 250 V DC, (UL/CSA)

HS Code

8536.90

• EAN 4015081363346
• SAP 1000252261
• Code 81138955
