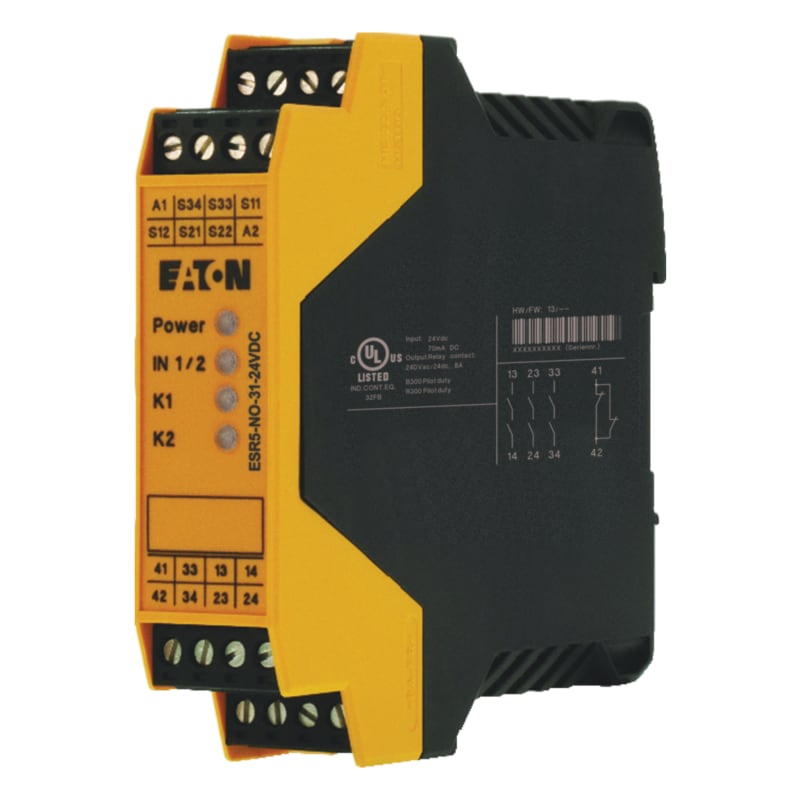

Safety Relay ESR5 24V DC Emergency stop
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton ESR5-NO-31-24VDC Safety Relay ESR5, Single-/Double Channel, 24V DC, 3 aktiveringskretser + 1 signalkrets, Emergency stop, STO.
Technical Specifications
- Manufacturer part number (MPN)
- ESR5-NO-31-24VDC
- EAN / GTIN
- 4015082965143
- Sales unit
- pcs
- Voltage
- 24 V
- Operating voltage DC
- 24–26.4 V
- Power consumption
- 1.68 W
- Supply voltage DC
- 0–24 V
- Rated switch current
- 6 A
- Control voltage 1
- 24–26.4 V
- Voltage type (operating voltage)
- DC
- Type of control voltage 1
- DC
- Model
- Basic device
- Suitable for monitoring of position switches
- Yes
- Suitable for monitoring of emergency-stop circuits
- Yes
- Suitable for monitoring of valves
- Yes
- Suitable for monitoring of tactile sensors
- Yes
- Suitable for monitoring of magnetic switches
- Yes
- Suitable for monitoring of proximity switches
- Yes
- Type of electric connection
- Screw connection
- Suitable for rail mounting
- Yes
- With detachable clamps
- Yes
- Evaluation inputs
- One- and two-channel
- With start input
- Yes
- With muting function
- No
- With feedback circuit
- Yes
- Number of outputs, safety related, undelayed, with contact
- 3
- Type of safety according to IEC 61496-1
- None
- Stop category according to IEC 60204
- 0
- Performance level according to EN ISO 13849-1
- Level e
- SIL according to IEC 61508
- 3
- With approval for BG BIA
- No
- With approval according to UL
- Yes
- Width
- 22.5 mm
- Height
- 99 mm
- Depth
- 114.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4015082965143
- SAP 1200740295
- Code 83879814
Product Documentation
