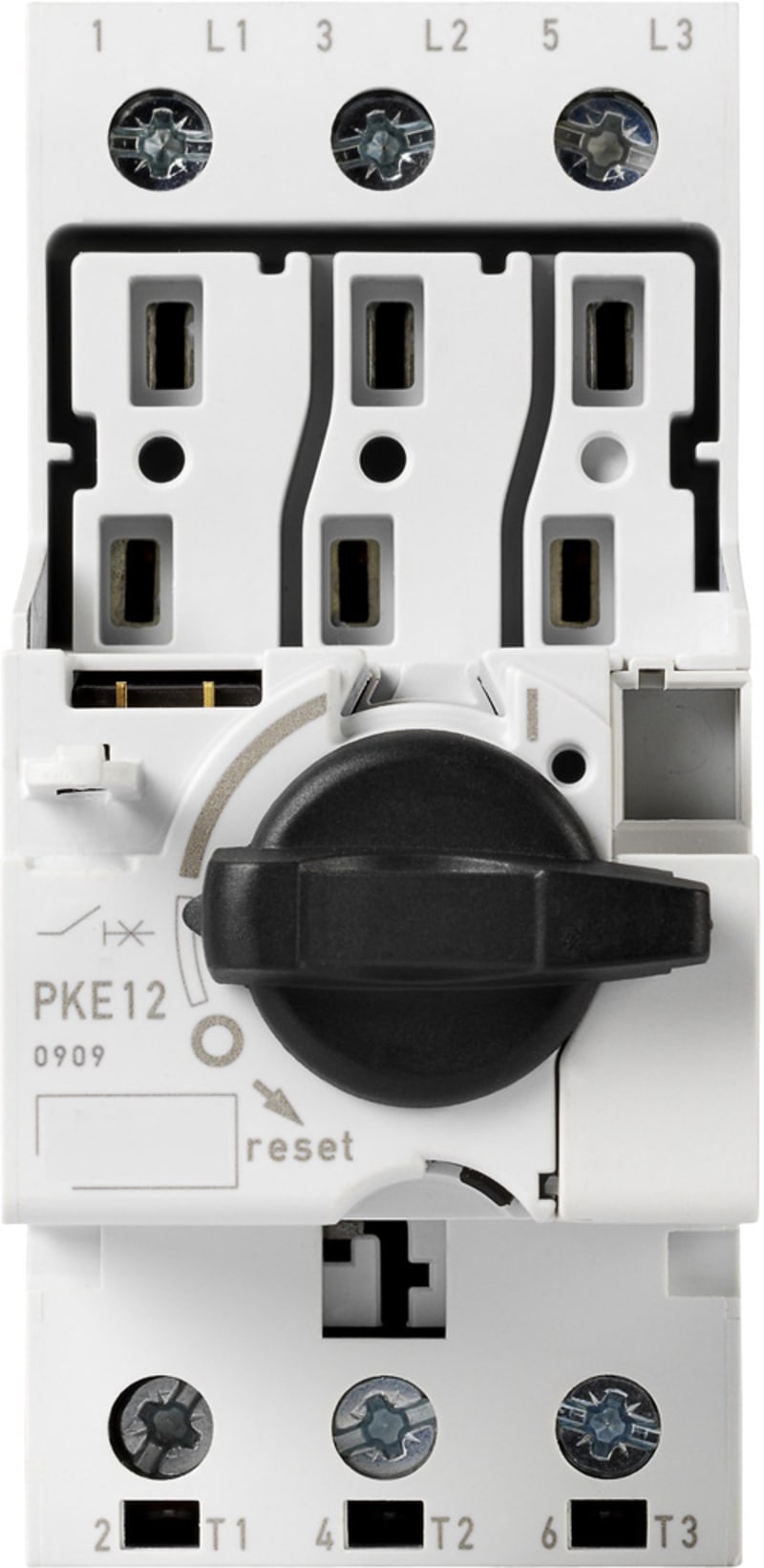

PKE 12 Base module (PKE12)

Eaton PKE 12 Base module (PKE12) is listed under Electrical Components / Motor Protection Circuit Breakers. Sales unit: pcs; Eaton catalogue number: 121721; Depth: 101 mm; Height: 102.5 mm; Width: 45 mm; Weight: 0.33 kg.

Manufacturer part number (MPN)

PKE12

EAN / GTIN

4015081195312

Sales unit

pcs

Eaton catalogue number

121721

Depth

101 mm

Height

102.5 mm

Width

45 mm

Weight

0.33 kg

Compliances

CE Marked

Certifications

UL 508; IEC 60947-4-1; EN 60947-4-1; CSA Std. C22.2 No. 14-10; VDE; CE; CSA Class No.: 3211-05; VDE 0660; CSA; CSA-C22.2 No. 60947-4-1-14; UL 60947-4-1; UL File No.: E36332; IEC/EN 60947-4-1; UL; UL Category Control No.: NLRV; CSA File No.: 165628; IEC/EN 60947

Shock resistance

25 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Altitude

Max. 2000 m

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30

Connection

Screw terminals

Equipment heat dissipation, current-dependent Pvid

2.7 W

Heat dissipation per pole, current-dependent Pvid

0.9 W

Rated operational current for specified heat dissipation (In)

12 A

Rated frequency - max

60 Hz

Rated frequency - min

50 Hz

Rated operational current (Ie)

12 A

Rated operational voltage (Ue) - max

690 V

Rated operational voltage (Ue) - min

690 V

Rated uninterrupted current (Iu)

12 A

Actuator type

Turn button

Features

Phase-failure sensitivity (according to IEC/EN 60947-4-1, VDE 0660 Part 102)

Fitted with

Standard knob

Functions

Motor protection; Motor protection for heavy starting duty

Number of poles

Three-pole

Degree of protection

IP20; Terminals: IP00

Lifespan, electrical

50,000 operations (at 400V, AC-3)

Lifespan, mechanical

50,000 Operations (Main conducting paths)

Operating frequency

60 Operations/h

Overvoltage category

III

Pollution degree

3

Product category

Motor protective circuit breaker

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

6000 V AC

Suitable for

Also motors with efficiency class IE3

Temperature compensation

-5 - 40 °C to IEC/EN 60947, VDE 0660; -25 - 55 °C, Operating range

Short-circuit release

Basic device fixed 15.5 x Iu, Trip Blocks; ± 20% tolerance, Trip blocks

Switching capacity

12 A, AC-3 up to 690 V

Stripping length (main cable)

10 mm

Terminal capacity (flexible with ferrule)

1 x (1 - 6) mm², ferrule to DIN 46228; 2 x (1 - 6) mm², ferrule to DIN 46228

Terminal capacity (solid)

1 x (1 - 6) mm²; 2 x (1 - 6) mm²

Terminal capacity (solid/stranded AWG)

14 - 10

Tightening torque

1 Nm, Screw terminals, Control circuit cables; 1.7 Nm, Screw terminals, Main cable

With integrated auxiliary switch

No

Rated permanent current Iu

12 A

With integrated under voltage release

No

Rated operating voltage

690 V

With thermal overload protection

No

Type of electrical connection of main circuit

Screw connection

Type of control element

Turn button

Switch off technique

Electronic

Phase failure sensitive

No

Device construction

Built-in device fixed built-in technique

Country of origin

Germany

HS Code

8536.20
