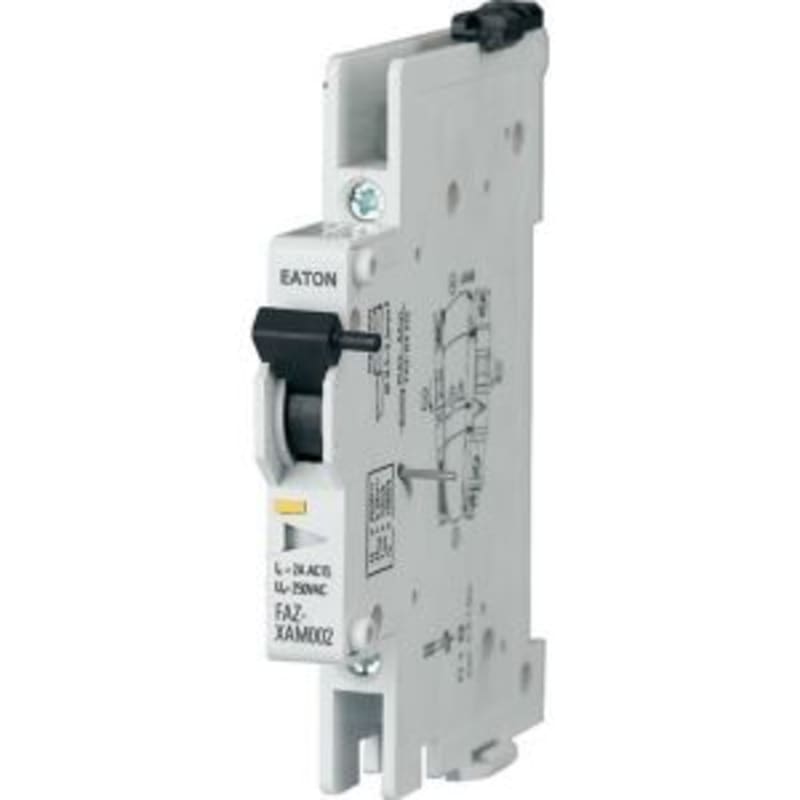

Eaton FAZ-XAM002 Snap-On Auxiliary Contact 2 C/O for FAZ, PKNM

Eaton FAZ-XAM002 is a snap-on auxiliary contact block providing two change-over contacts for FAZ and PKNM miniature circuit breakers, rated 4 A at 250 V AC. It signals the switch position of the associated MCB to control and monitoring systems from a single 0.5-module width on the DIN rail. Lift terminals with IP20 / IP40 finger protection.

Manufacturer part number (MPN)

FAZ-XAM002

EAN / GTIN

4015082624149

Sales unit

pcs

Package quantity

100 pcs

Eaton catalogue number

262414

Depth

80 mm

Height

75.5 mm

Width

8.8 mm

Weight

0.045 kg

Compliances

RoHS conform

Certifications

CE marking; UL (File No. E177451); North America (UL listed, certified by UL for use in Canada); IEC/EN 60947-2; UL (Category Control Number QVNU2, QVNU8); CSA-C22.2 No. 235; UL 1077; CSA (Class No. 3215-30); IEC/EN 60898; EN45545-2; IEC 61373

Used with

Accessory for miniature circuit breaker; Accessory

Voltage rating

250 V AC

Amperage Rating

4 A

Accessory/spare part type

Auxiliary contacts

Degree of protection

UL/CSA Type: -; IP20 (IEC); IP40

Frame

Standard front dimension: 45 mm

Frequency rating

50 Hz / 60 Hz

Rated impulse withstand voltage (Uimp)

2.5 kV

Mounting method

On MCB

Additional equipment required

Other

Admissible back-up fuse - max

4 A gL

Terminal protection

Protection against electric shock to IEC 536

Terminal type

Lift terminals

Ambient operating temperature - max

40 °C

Ambient operating temperature - min

-5 °C

Assembly width

0.5

Conventional thermal current Ith of auxiliary contacts (1-pole, open)

4 A

Enclosure width

80 mm

Number of contacts (change-over contacts)

2

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

0

Number of poles at main contact unit - max

2

Number of switches (fault signal)

0

Rated conditional short-circuit current (Iq) with 6 a back-up fuse

1 kA

Rated insulation voltage (Ui)

250 VAC

Voltage type

AC

Functions

Auxiliary switch

Contact function

2 C/O

Device fitting

Earth leakage circuit breaker and miniature circuit breaker (MCB)

Type

Accessory Accessory for miniature circuit breaker

Mounting width

8.8 mm (0.5 space units)

Rated operational voltage (Ue) - max

250 V

Rated switch current

3 A

Voltage rating per contact - min

5 VDC

Rated operational current

3 A (250 V AC-12); 0.5 A (110 V DC-13); 2 A (250 V AC-15)

Terminal capacity (cable)

0.5 mm² - 2.5 mm²

Terminal capacity (solid wire)

0.5 mm² - 2.5 mm²

Rated voltage

250 V

Installed at the factory

No

Width in number of modular spacings

0.5

Voltage type for actuating

AC

Number of contacts as change-over contact

2

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

2

Country of origin

Serbia

HS Code

8536.50
