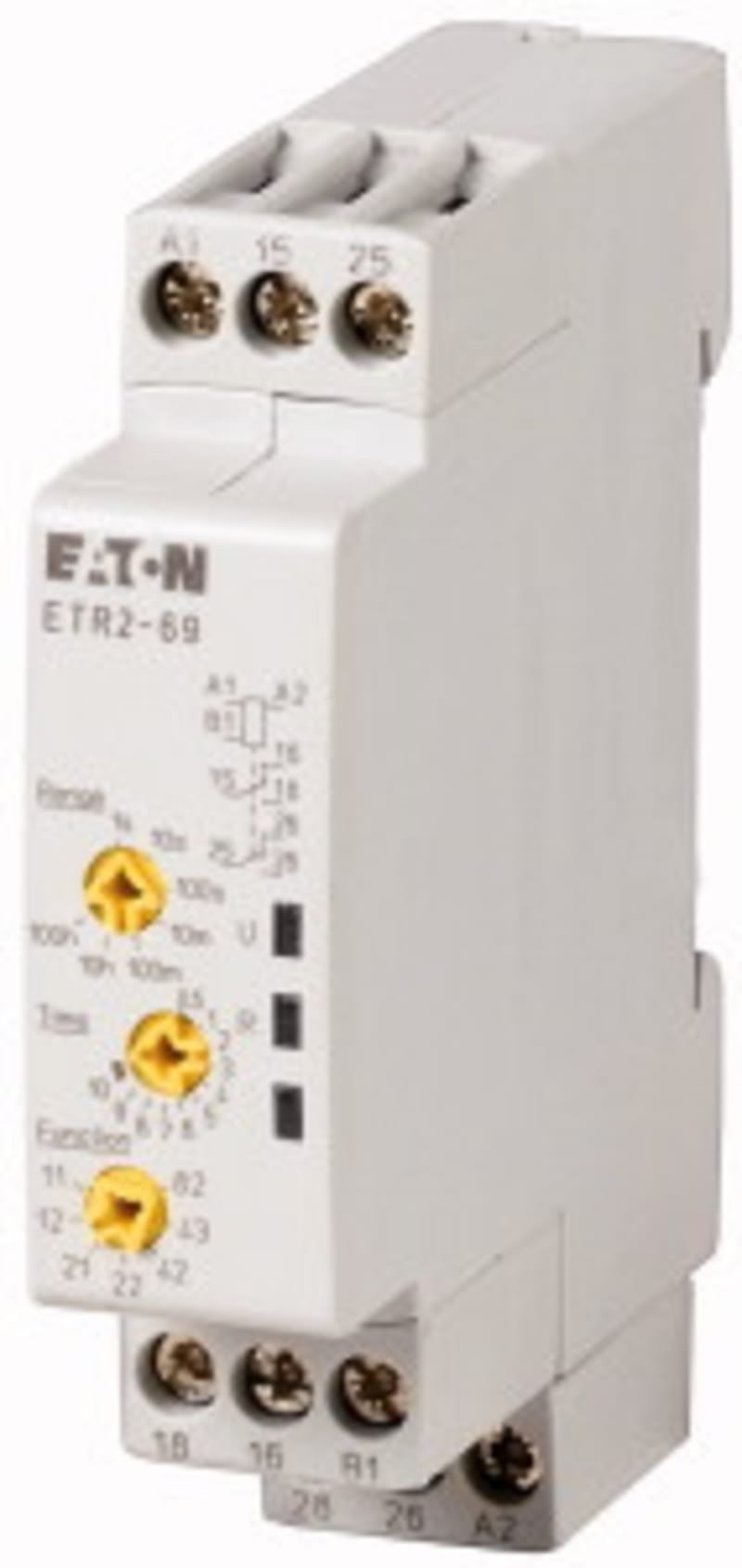

Eaton ETR2-69 Multifunction Timing Relay 1 CO 24-240 V AC/DC

Eaton ETR2-69 is a 17.5 mm-wide DIN-rail multifunction timing relay with one changeover contact rated 3 A at 230 V. Timing range spans 0.05 s to 360000 s and the control-supply input covers 24-240 V AC and 24-240 V DC. Typical applications are start-up delays, pulse forming, and sequenced control in machine and building installations, certified to UL 508 and IEC/EN 61812-1.

Manufacturer part number (MPN)

ETR2-69

EAN / GTIN

4015082626891

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

262689

Depth

63 mm

Height

70 mm

Width

17.5 mm

Weight

0.054 kg

Certifications

UL; UL 508; UL File No.: E29184; CSA-22.2 No. 14; IEC/EN 60947-5-1; Certified by UL for use in Canada; CSA Class No.: 3211-03; IEC/EN 61812-1; CSA File No.: UL report valid; CE; UL Category Control No.: NKCR, NKCR7

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Heat dissipation capacity Pdiss

0 W

Mains voltage tolerance

24 - 240 V AC (at 50/60 Hz); 24 - 48 V DC

Nominal current

3 A

Rated operational current (Ie)

3 A at 230 V (NO); 4 A at AC-15, 220 V 230 V 240 V; 3 A at 230 V (NC)

Electric connection type

Screw connection

Degree of protection

IP20

Number of contacts (change-over contacts)

1

Product category

ETR2 timing relays

Suitable for

DIN rail (top hat rail) mounting

Time range - max

360000 s

Time range - min

0.05 s

Type

Timer relay

Voltage type

AC/DC

Rated control supply voltage (Us) at AC, 50 Hz - max

240 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

24 V

Rated control supply voltage (Us) at DC - max

240 V

Rated control supply voltage (Us) at DC - min

24 V

HS Code

8536.90

• EAN 4015082626891
• SAP 1000009982
• Code 874628
