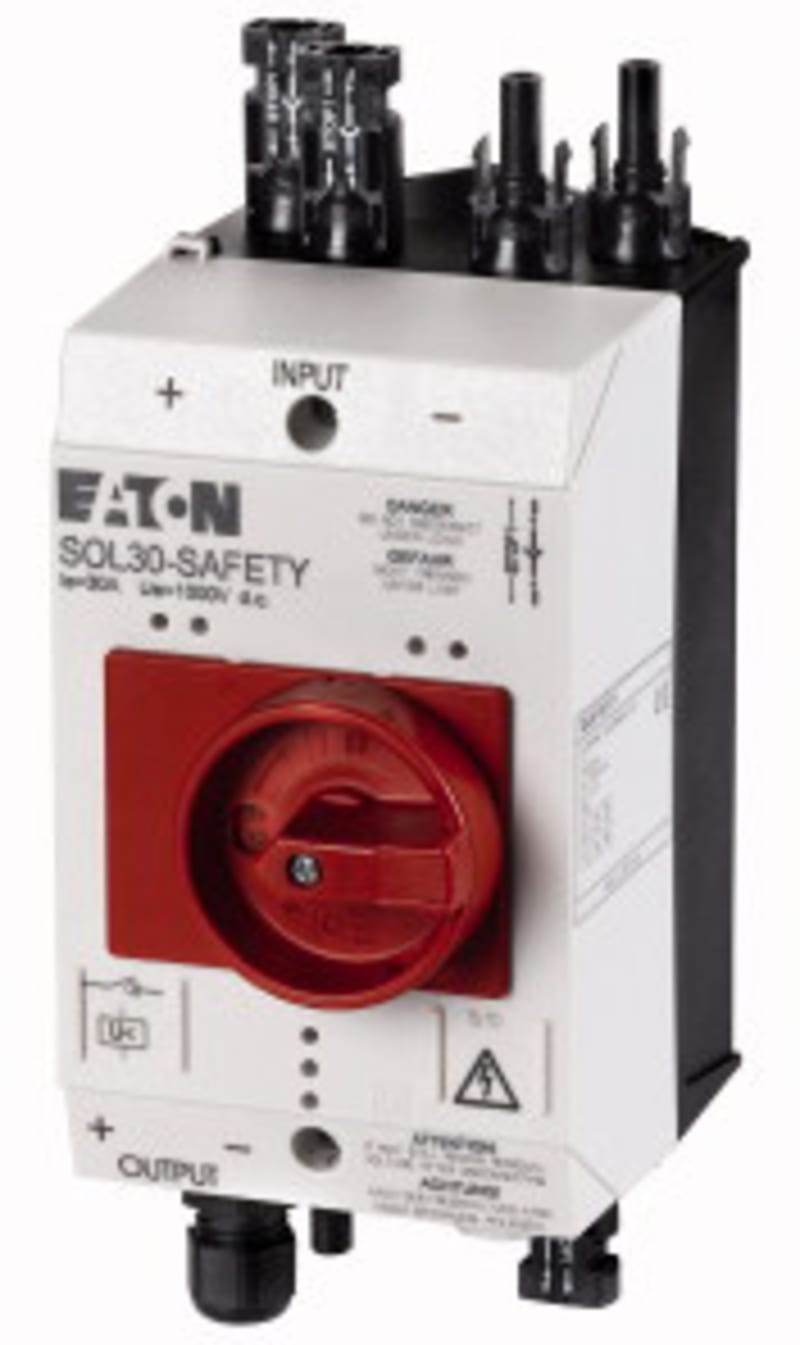

Eaton SOL30-SAFETY/2MV-U(230V50HZ)

Eaton SOL30-SAFETY/2MV-U(230V50HZ) SOL30-SAFETY/2MV-U(230V50HZ).

Manufacturer part number (MPN)

SOL30-SAFETY/2MV-U(230V50HZ)

EAN / GTIN

4015081406333

Sales unit

pcs

Eaton catalogue number

144123

Depth

224 mm

Height

130 mm

Width

100 mm

Weight

1.006 kg

Certifications

IEC/EN 60 947-3

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78

Number of auxiliary contacts (change-over contacts)

1

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Rated operational current (Ie) at DC-21A

30 A

Rated operational voltage (Ue) at AC - max

690 V

Rated uninterrupted current (Iu)

32 A

Resistance

7 mΩ (internal)

Actuator color

Black

Actuator type

Toggle

Features

Version as maintenance-/service switch

Fitted with

Voltage release optional

Locking facility

Lockable in the 0 (Off) position (with padlock)

Number of poles

Two-pole

Application

Residential buildings Utility buildings

Connection type

M12, Outputs; M12, Inputs

Degree of protection

NEMA Other

Degree of protection (front side)

IP65

Lifespan, electrical

1,500 Operations

Lifespan, mechanical

100,000 Operations

Operating frequency

120 Operations/h

Overvoltage category

III

Pollution degree

3

Product Category

Fireman's Switch Switchgear for photovoltaic systems

Rated impulse withstand voltage (Uimp)

8000 V

Suitable for

Ground mounting; Floor mounting

Utilization category

DC-21 A

Rated short-circuit making capacity (Icm)

0.3 kA (up to 440 V, 50/60 Hz)

Rated short-time withstand current (Icw)

0.36 kA

Country of origin

Germany

HS Code

8536.20

• EAN 4015081406333
• SAP 1000768266
• Code 81171639
