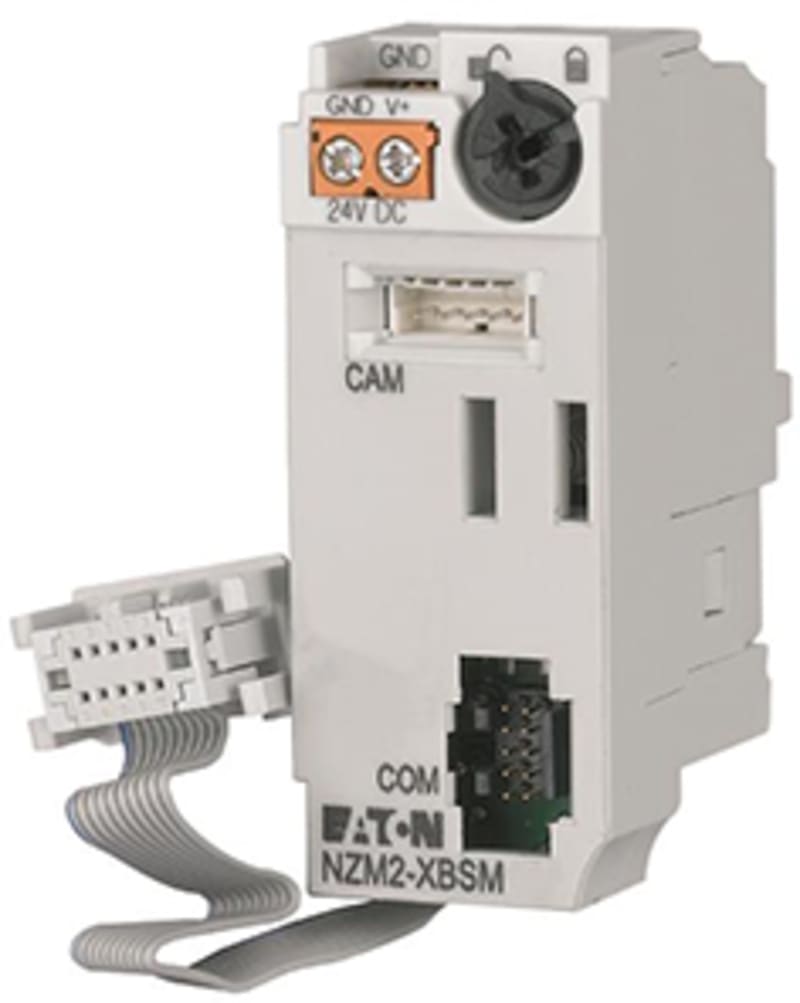

Eaton NZM2-XBSM
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton NZM2-XBSM is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Eaton catalogue number: 189825; Depth: 76 mm; Height: 65 mm; Width: 68 mm; Weight: 0.021 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NZM2-XBSM
- EAN / GTIN
- 4015081878208
- Sales unit
- pcs
- Eaton catalogue number
- 189825
- Depth
- 76 mm
- Height
- 65 mm
- Width
- 68 mm
- Weight
- 0.021 kg
- Compliances
- UL/CSA; IEC; RoHS conform
- Accessory/spare part type
- Interface module; Communication and measuring function; Accessory
- Frame
- NZM2
- Type
- Interface module
- Used with
- NZM2(-4)-VX(MX)(PX)(PMX)…
- Control voltage tolerance
- +/- 20%
- Current consumption - max
- 100 mA
- Voltage rating
- 24 V DC
- Degree of protection
- Installation in the switch
- Strip length
- 5 mm (supply connection)
- Terminal capacity (solid cable)
- 0.2 mm² - 1.5 mm² (1x) at supply connection
- Terminal capacity (stranded cable)
- 0.25 mm² - 0.75 mm² (1x) at supply connection (insulated ferrule according to DIN46224 / 4); 24 - 16 AWG (1x) at supply connection; 0.25 mm² - 0.75 mm² (1x) at supply connection (uninsulated ferrule according to DIN46224 / 1); 0.2 mm² - 1.5 mm² (1x) at supply connection
- Tightening torque
- ≤ 0.25 Nm; ≥ 0.22 Nm
- Type of accessory/spare part
- Communication and measuring function
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081878208
- SAP 1200601086
- Code 82989560
