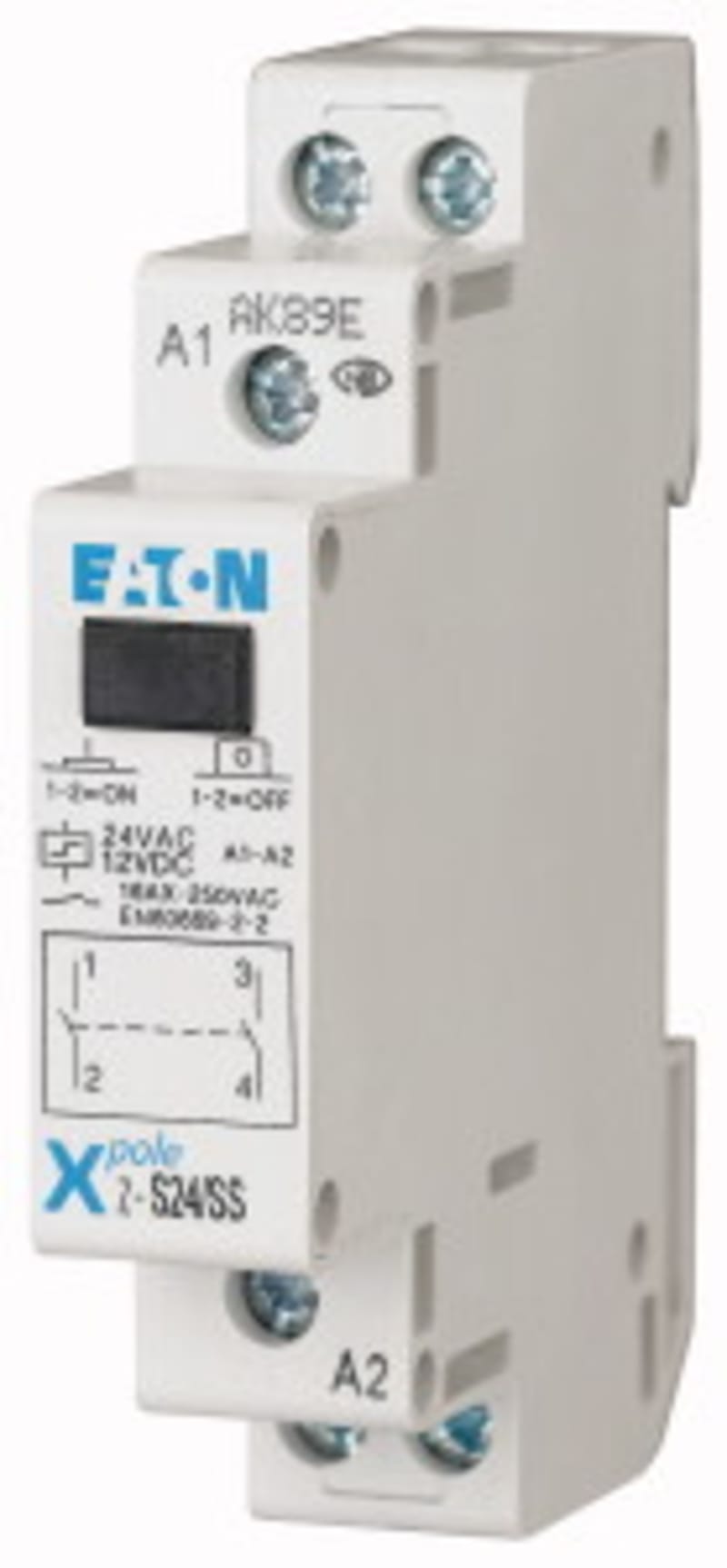

Eaton 265537 Impulse Relay 2 NO Contacts, 24 V AC 50 Hz, DIN-Rail
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 265537 impulse relay with two normally-open contacts, 24 V AC control voltage at 50 Hz and 16 A rated switching current. Two-pole, DIN-rail mounted, one modular unit wide with 60 mm built-in depth and manual operation. Handles incandescent-lamp loads up to 1980 W and fluorescent-lamp loads up to 1020 VA. Supplied 2 pcs per pack.
Technical Specifications
- Manufacturer part number (MPN)
- 265537
- EAN / GTIN
- 4015082655372
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Eaton catalogue number
- 265537
- Depth
- 80 mm
- Height
- 70 mm
- Width
- 17.5 mm
- Weight
- 0.136 kg
- Compliances
- RoHS conform
- Number of poles
- Two-pole
- Mounting method
- DIN rail
- Control voltage 1 type
- AC
- Ambient operating temperature - max
- 45 °C
- Ambient operating temperature - min
- -20 °C
- Control voltage 1 - max
- 24 V
- Control voltage 1 - min
- 24 V
- Control voltage 2 - max
- 12 V
- Control voltage 2 - min
- 12 V
- Frequency control voltage 1 - max
- 50 Hz
- Frequency control voltage 1 - min
- 50 Hz
- Heat dissipation per pole, current-dependent
- 1.5 W
- Incandescent lamp load - max
- 1980 W
- Load fluorescent lamp - max
- 1020 VA
- Load fluorescent lamp (duo circuit) - max
- 1820 VA
- Load fluorescent lamp (parallel compensated) - max
- 1105 VA
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 0
- Number of contacts (normally open contacts)
- 2
- Rated operational current for specified heat dissipation (In)
- 16 A
- Rated switch current
- 16 A
- Equipment heat dissipation, current-dependent
- 3 W
- Supply voltage - max
- 250 V
- Supply voltage - min
- 24 V
- Switching current (cos phi = 0.6) - max
- 24 A
- Width in number of modular spacings
- 1
- Built-in depth
- 60 mm
- Operating mode
- Manual operation possible
- Control voltage 2 type
- DC
- Voltage type
- AC
- Functions
- Mechanical switch
- Contact configuration
- 2 NO
- Control voltage 1
- 24 V
- Control voltage 2
- 12 V
- Type of control voltage 1
- AC
- Type of control voltage 2
- DC
- Frequency control voltage 1
- 50 Hz
- Frequency control voltage 2
- 50 Hz
- Suitable for manual operation
- Yes
- Supply voltage
- 250 V
- Number of contacts as normally open contact
- 2
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4015082655372
- SAP 1000084499
- Code 8576563
