Eaton
SUMMER, 18-30V, Constant TONE
Part numberM22-XAMEAN / GTIN4015082290252HS code8531.80
Control & Automation
Pushbuttons & Pilot Lights
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

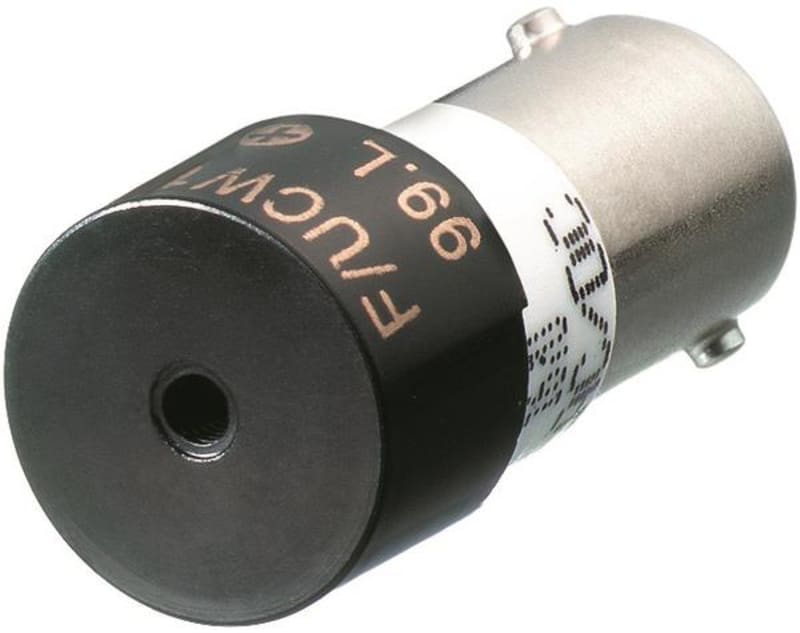

Eaton M22-XAM Buzzer BA9s.18-30V DC, continuous tone.
Technical Specifications
- Manufacturer part number (MPN)
- M22-XAM
- EAN / GTIN
- 4015082290252
- Sales unit
- pcs
- Eaton catalogue number
- 229025
- Depth
- 30 mm
- Height
- 10 mm
- Width
- 10 mm
- Weight
- 0.014 kg
- Compliances
- CE Marked
- Certifications
- EN 60947-5; CSA Std. C22.2 No. 14-05; UL 508; IEC 60947-5; IEC/EN 60947-5; CSA Class No.: 3211-03; CSA File No.: 012528; UL File No.: E29184; CSA; CE; UL; UL Category Control No.: NKCR; CSA-C22.2 No. 14-05
- Catalog Notes
- Positive pin at X1 f = 2300 Hz
- Loudness
- 83 dB
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Connection to SmartWire-DT
- No
- Static heat dissipation, non-current-dependent Pvs
- 0.4 W
- Rated operational voltage (Ue) at DC - max
- 30 V
- Rated operational voltage (Ue) at DC - min
- 18 V
- Degree of protection
- NEMA Other
- Product Category
- Accessories
- Voltage type
- DC
- Type of acoustic signal
- Continuous tone
- Operating voltage DC
- 18–30 V
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4015082290252
- SAP 1000080276
- Code 8775527
Product Documentation
Document preview: SUMMER, 18-30V, KONSTANT TONE (M22-XAM) — Specification Data Sheet (OEM)
