Residual current circuit breaker 63A 2P 30MA G/A

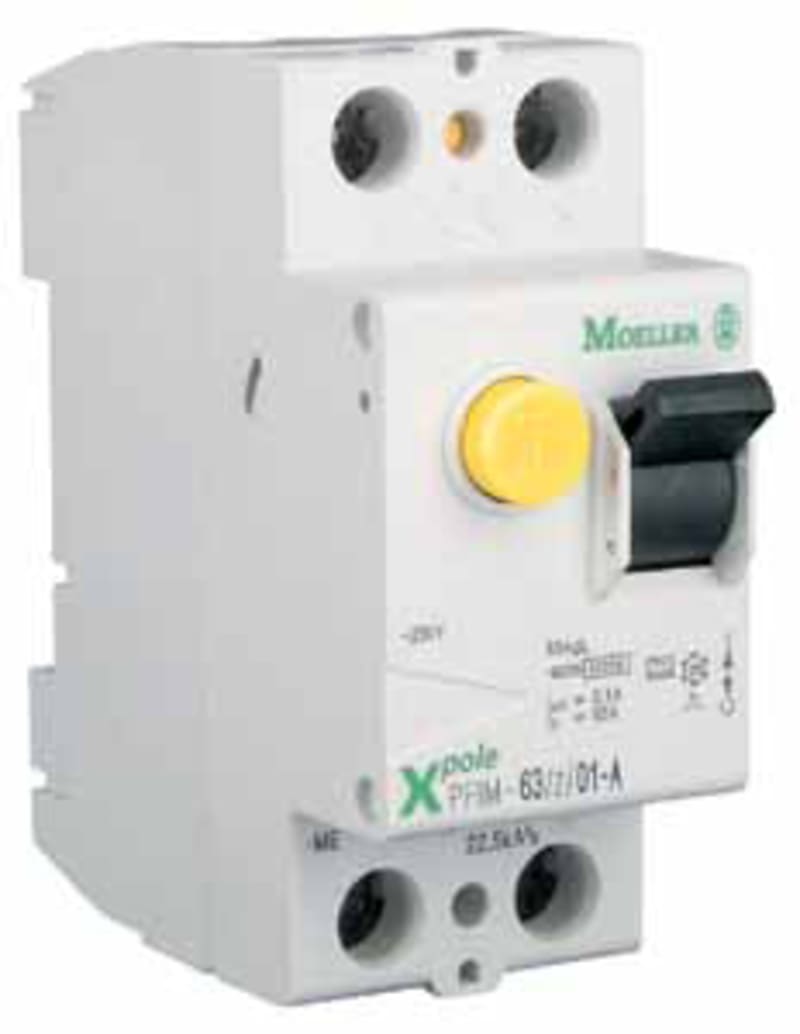

Eaton PFIM-63/2/003-G/A Residual current circuit breaker, 2-pole - 63 A 30 mA.

Manufacturer part number (MPN)

PFIM-63/2/003-G/A

EAN / GTIN

4015081076888

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Eaton catalogue number

108046

Depth

76 mm

Height

80 mm

Width

35 mm

Weight

0.201 kg

Compliances

RoHS conform

Certifications

IEC/EN 61008; ÖVE E 8601

Accessories required

Z-HK 248432

Features

Additional equipment possible; Residual current circuit breaker

Fitted with

Interlocking device

Functions

Short-time delayed tripping

Special features

Maximum operating temperature is 60 °C: Starting at 40 °C, the max. permissible continuous current decreases by 1.8% for every 1 °C Tripping signal contact for subsequent installation Z-NHK 248434

Used with

Residual current circuit breakers; PFIM; KLV-TC-2 276240 (Compact enclosure); Z-FW/LP 248296 (Remote control and automatic switching device); Z-RC/AK-2MU 285385 (sealing cover set); Type G/A (ÖVE E 8601)

Amperage Rating

63 A

Application

Residual current circuit breaker for residential and commercial applications xPole - Switchgear for residential and commercial applications

Fault current rating

30 mA

Impulse withstand current

Surge-proof, 3 kA

Number of poles

Two-pole

Rated short-circuit strength

10 kA

Sensitivity type

Pulse-current sensitive

Tripping time

Short time-delayed

Type

PFIM Residual current circuit breakers Type G/A (ÖVE E 8601)

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Equipment heat dissipation, current-dependent

9.7 W

Heat dissipation capacity

0 W

Heat dissipation per pole, current-dependent

0 W

Rated operational current for specified heat dissipation (In)

63 A

Static heat dissipation, non-current-dependent

0 W

Admissible back-up fuse overload - max

40 A gG/gL

Frequency rating

50 Hz

Leakage current type

A

Lifespan, electrical

4000 operations

Pollution degree

2

Rated fault current - max

0.03 A

Rated fault current - min

0.03 A

Rated impulse withstand voltage (Uimp)

4 kV

Rated insulation voltage (Ui)

440 V

Rated operational voltage (Ue) - max

230 V

Rated residual making and breaking capacity

630 A

Rated short-time withstand current (Icw)

10 kA

Short-circuit rating

63 A (max. admissible back-up fuse)

Surge current capacity

3 kA

Test circuit range

196 V AC - 264 V AC

Voltage rating

230 V AC

Built-in depth

70.5 mm

Built-in width (number of units)

35 mm (2 SU)

Busbar material thickness

0.8 mm - 2 mm

Climatic proofing

25-55 °C / 90-95% relative humidity according to IEC 60068-2

Connectable conductor cross section (multi-wired) - max

16 mm²

Connectable conductor cross section (multi-wired) - min

1.5 mm²

Connectable conductor cross section (solid-core) - max

35 mm²

Connectable conductor cross section (solid-core) - min

1.5 mm²

Degree of protection

IP20; IP20, IP40 with suitable enclosure

Frame

45 mm

Lifespan, mechanical

20000 operations

Mounting Method

Quick attachment with 2 latch positions for DIN-rail IEC/EN 60715; DIN rail

Permitted storage and transport temperature - max

60 °C

Permitted storage and transport temperature - min

-35 °C

Terminal capacity (solid wire)

1.5 mm² - 35 mm²

Terminal capacity (stranded cable)

16 mm² (2x)

Terminal protection

Finger and hand touch safe, DGUV VS3, EN 50274

Terminals (top and bottom)

Open mouthed/lift terminals

Width in number of modular spacings

2

HS Code

8536.90
