Eaton

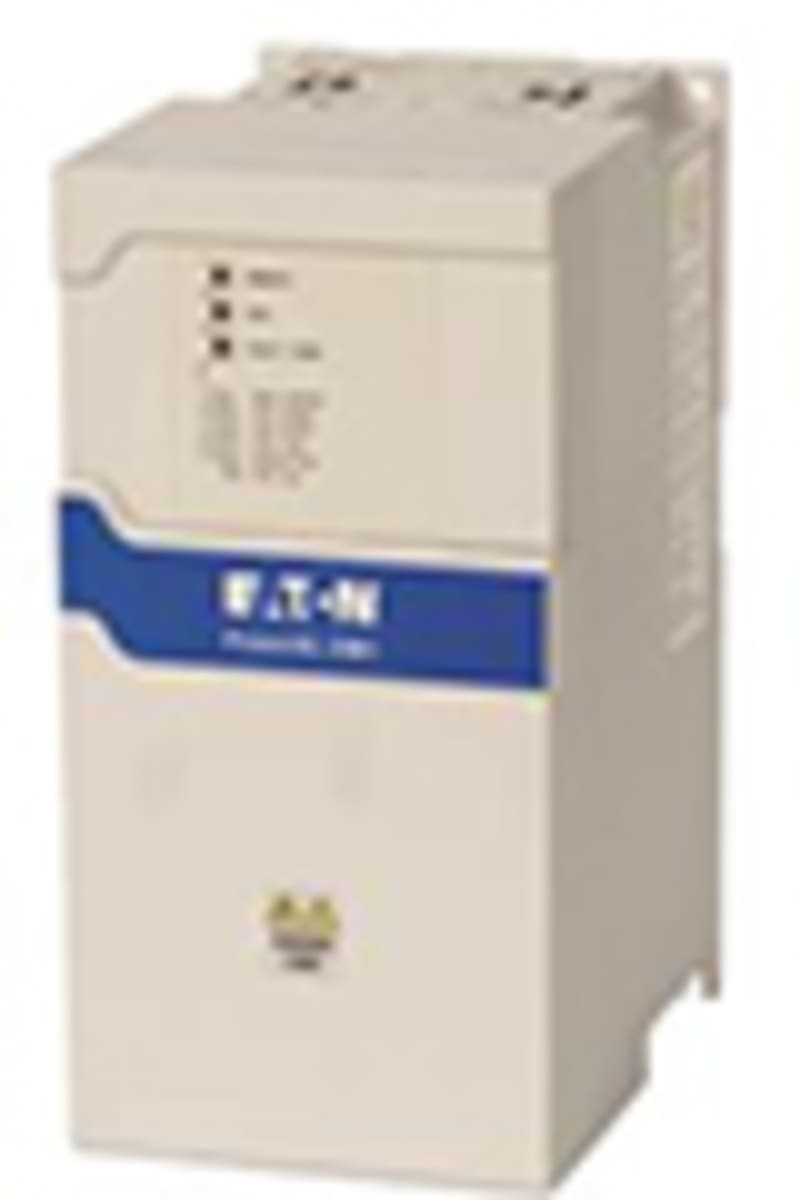

variable-frequency drive DM1-34023EB-N20B-EM
Part numberDM1-34023EB-N20B-EMEAN / GTIN4015081980475HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton DM1-34023EB-N20B-EM variable-frequency drive DM1, 400 V AC, 3-pole, 23 A, 11 kW, IP20/NEMA0, Radio interference filter, Brake chopper.
Technical Specifications
- Manufacturer part number (MPN)
- DM1-34023EB-N20B-EM
- EAN / GTIN
- 4015081980475
- HS code
- 8504.40
- Sales unit
- pcs
- Width
- 130 mm
- Height
- 260 mm
- Depth
- 180 mm
- Power consumption
- 407.4 W
- With control element
- No
- Number of digital inputs
- 4
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces RS-485
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 380–480 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 3
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 400 Hz
- Max. output at linear load at rated output voltage
- 11 kW
- Max. output at quadratic load at rated output voltage
- 15 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 10 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 500 V
- Nominal output current I2N
- 23 A
- Supporting protocol for BACnet
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081980475
- SAP 1200553455
- Code 82920432
Product Documentation
Document preview: variable-frequency drive DM1-34023EB-N20B-EM — Specification sheet
More from Eaton
Eaton
Safety Switch (P5-125/EA/SVB/N)
Eaton
Eaton NH00 Knife-Blade Fuse 80 A AC 690 V 120 kA gG/gL
80NHG00BI-690
Eaton
Safety Switch (P3-63/I4/SVB/N)
Eaton
Star-delta switch (T3-4-3/I2)
Eaton
8 DIG.Output 24V DC 0,3A
257894
Eaton
Cable Trunking TKS B600 grey
195387
Eaton

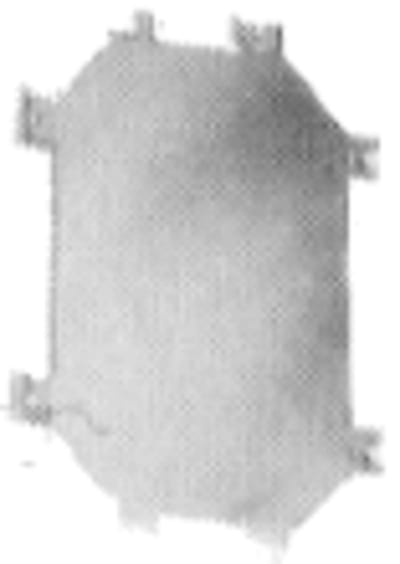

Mounting Plate (M3-CI45)
