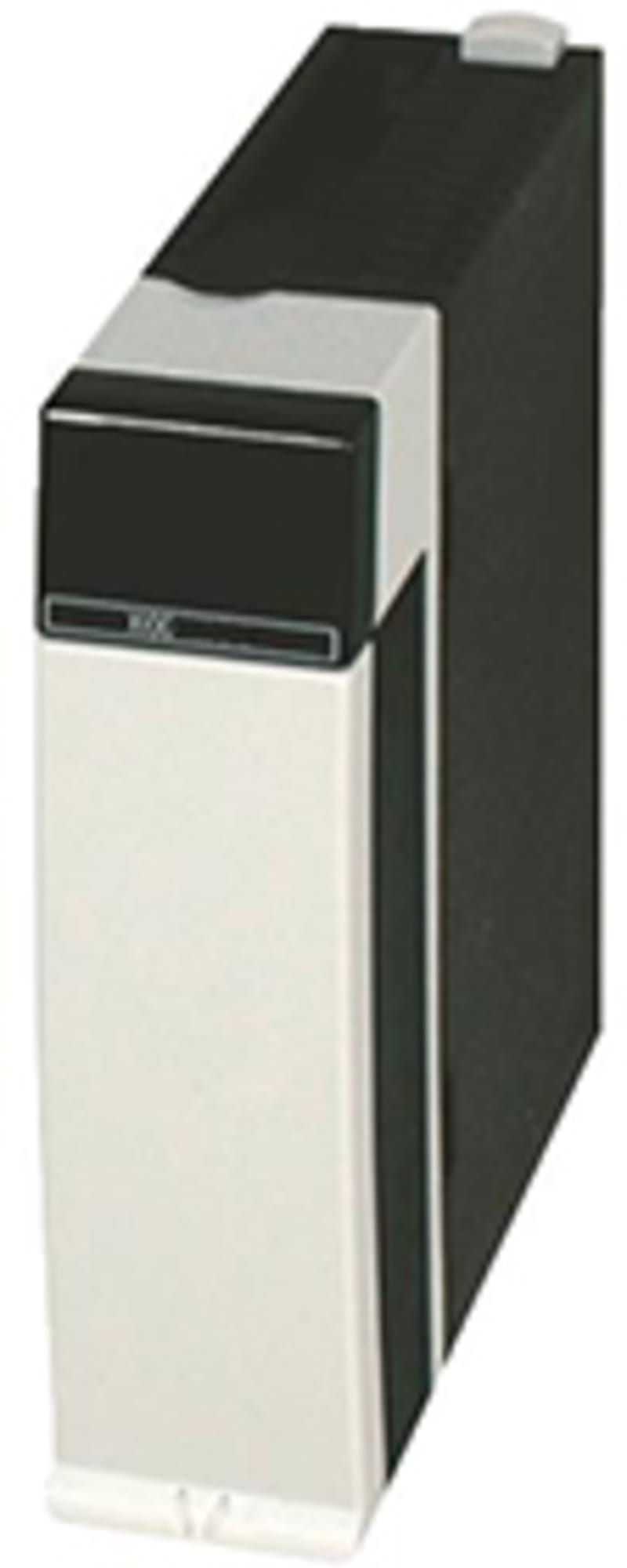

8 DIG.Output 24V DC 0,3A

Eaton 8 DIG.Output 24V DC 0,3A (part number 257894) is listed under Control & Automation / I/O Modules. Sales unit: pcs; Eaton catalogue number: 257894; Depth: 100 mm; Height: 95 mm; Width: 30 mm; Weight: 0.135 kg.

Manufacturer part number (MPN)

257894

EAN / GTIN

4015082578947

Sales unit

pcs

Eaton catalogue number

257894

Depth

100 mm

Height

95 mm

Width

30 mm

Weight

0.135 kg

Certifications

CSA; IEC/EN 61131-2; UL Category Control No.: NRAQ; CE; UL File No.: E135462; CSA Class No.: 2252-01; UL508; CSA File No.: 012528; CSA-C22.2 No. 0-M; EN 50178; UL; CSA-C22.2 No. 142-M

Impact resistance

500 g/⌀ 50 mm ±25 g

Shock resistance

15 g, Mechanical, Shock duration 11 ms

Vibration resistance

57 - 150 Hz ± 1.0 mm; 10 - 57 Hz, ± 0.075 mm

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Connection type

Plug-in terminal block, Power supply

LED indicator

Status indication: Green LED

Static heat dissipation, non-current-dependent Pvs

0.4 W

Leakage current

0.1 A

Power loss

Max. 0.4 W

Rated control supply voltage

External voltage for outputs/module (20 mA for module supply) Us: 24 V DC (-15 %/+20 %)

Rated operational voltage

24 (12) V DC

Short-circuit protection

Yes, Outputs; None, Fuse, Outputs

Supply voltage at DC - max

28.8 VDC

Supply voltage at DC - min

20.4 VDC

Emitted interference

Class A (according to DIN/EN 55011/22)

Voltage dips

10 ms

Electric connection type

Screw-/spring clamp connection

Functions

Overvoltage protection (Diode); Short-circuit protection, outputs available

Admissible range

20.4 – 28.8 V (11.8 – 14.4 V), Power supply

Current consumption

30 mA, Internal current consumption (5 V DC), Outputs

Degree of protection

IP20

Overvoltage category

II

Pollution degree

2

Protection

Protection class: 1

Repetition rate

1 s

Residual ripple

≤ 5 %

Type

Digital module

Used with

XC100/200 (expandable with up to 15 XI/OC modules)

Voltage type

DC

Number of channels

8, Output

Delay time

0.3 ms, Outputs, Off -> On, Debounce OFF

Load current

Min. 1 mA

Number of inputs (digital)

0

Number of outputs (digital)

8

Output

Transistor (source type); 8 Digital Outputs (24 V DC, 0.5 A)

Output current

0.5 A

Output voltage

24 V DC (-15 %/+20 %)

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Outputs: Opto-isolated

Terminals

Optionally, screw terminals or spring-loaded terminals for digital/analog modules

Supply voltage DC

20.4–28.8 V

Number of digital outputs

8

Digital inputs configurable

No

Digital outputs configurable

No

Permitted voltage at input

20.4–28.8 V

Type of voltage (input voltage)

DC

Type of digital output

Transistor

Permitted voltage at output

20.4–28.8 V

Type of output voltage

DC

Short-circuit protection, outputs available

Yes

Redundancy

No

Type of electric connection

Screw-/spring clamp connection

Time delay at signal change

0.25–0.3 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Japan

HS Code

8537.10
