Eaton
Enclosure 375X375X275 CLEAR
Part numberCI44E-250EAN / GTIN4015080385554HS code8538.10
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

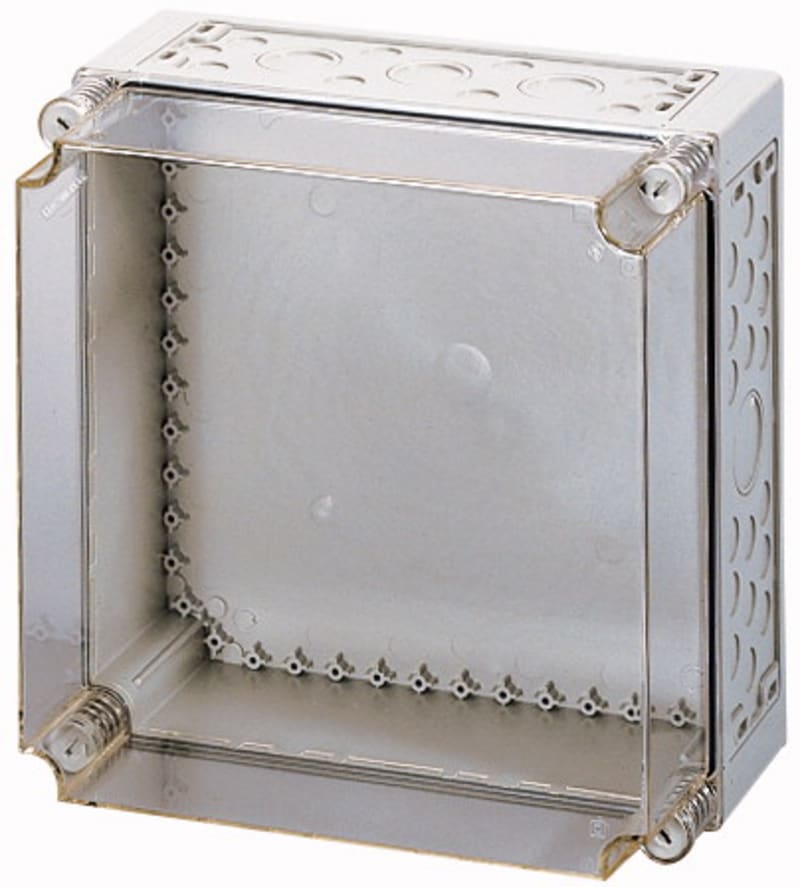

Eaton CI44E-250 Isolerstoff enclosure with clear cover and grey base.
Technical Specifications
- Manufacturer part number (MPN)
- CI44E-250
- EAN / GTIN
- 4015080385554
- Sales unit
- pcs
- Eaton catalogue number
- 038555
- Depth
- 275 mm
- Height
- 375 mm
- Width
- 375 mm
- Weight
- 3.658 kg
- Compliances
- RoHS conform
- Certifications
- EN 61439-2; EN 62208
- Features
- UV resistance beneath protective shield; Cover with overpressure release
- Flammability characteristics (UL)
- V1 (base) (UL94); V2 (cover) (UL94)
- Functions
- Extension possible
- Protection class
- II
- RAL-number
- 7035
- Special features
- With metric knockouts in all sides of the enclosure Include fixing straps for wall mounting Sealable cover fasteners Full-area knockouts in the sides can be converted to a distribution board enclosure
- Suitable for
- Outdoor use; Lightning protection
- Used with
- Eaton Switching and protection devices
- Color
- Gray; Light gray (RAL 7035, base); Transparent, smoky gray (cover)
- Nominal current
- 1600 A
- Type
- Basic enclosure Individual enclosures xEnergy Safety Ci
- Ambient operating temperature details
- -40 °C - 80 °C
- Temperature resistance
- Temperature resistant: 80 °C (gasket); Temperature resistant: -40 °C - 120 °C (enclosure); Temperature resistant: 85 °C (enclosure bolt)
- Circuit integrity
- Other
- Chemical resistance
- Not resistant to: alkalis, benzene; Resistant against: acids < 10 %, mineral oil, alcohol, gasoline, greases, salt solutions; Partly resistant to: Acids > 10 %
- Cover/door color
- Transparent
- Cover/door model
- Closed
- Cover/door type
- Optional; None
- Degree of protection
- IP65; IK10; Other
- Enclosure material
- Plastic
- Material
- Glass-fibre reinforced polycarbonate (base); Non-reinforced polycarbonate (cover); Halogen free
- Mounting depth with mounting plate
- 250 mm
- Number of conduit inlets
- 100
- Number of modules
- 1
- Number of openings (flange plates)
- 4
- Number of rows
- 0
- Plate thickness (cabinet)
- 6 mm
- Plate thickness (cover/door)
- 6 mm
- Saline spray resistance
- IEC 60068-2-11
- Surface finishing
- Resistant to corrosion
- Surface protection
- Other
- Surface treatment
- Resistant to corrosion
- Unit type
- Single unit
- Width in number of modular spacings
- 15
- Built-in depth
- 250 mm
- Internal depth
- 250 mm
- Mounting method
- Surface mounted (plaster)
- Dimensions
- 375×375×275
- Colour
- Grey
- With mounting plate
- No
- Impact strength
- IK10
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080385554
- SAP 1000079093
- Code 8814123
Product Documentation
Document preview: ENCLOSURE 375X375X275 KLAR (CI44E-250) — Specification Data Sheet (OEM)
