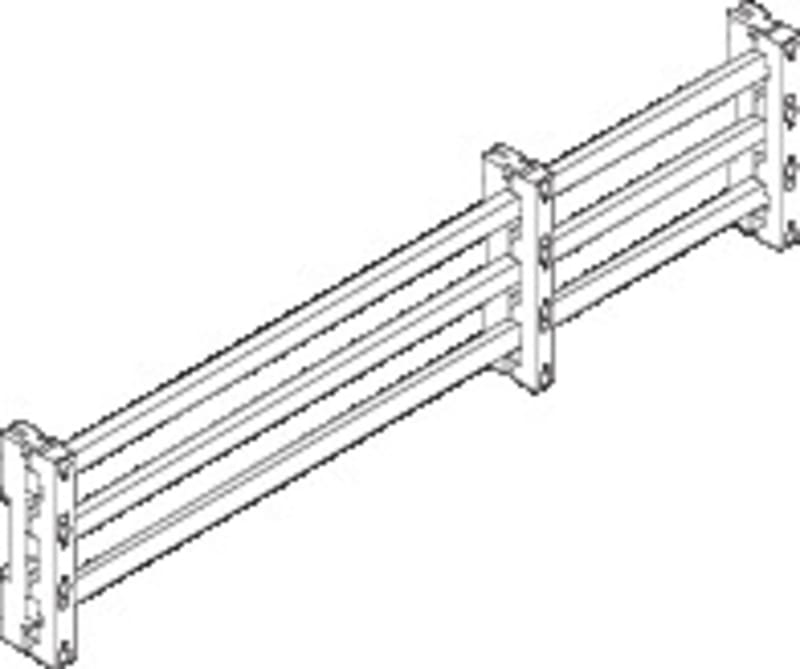

CU-RAIL 20X5 L=2250mm
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton CU-RAIL 20X5 L=2250mm (part number CU20X5-2250) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 007466; Depth: 2250 mm; Height: 5 mm; Width: 20 mm.
Technical Specifications
- Manufacturer part number (MPN)
- CU20X5-2250
- EAN / GTIN
- 4015080074663
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 007466
- Depth
- 2250 mm
- Height
- 5 mm
- Width
- 20 mm
- Weight
- 2.01 kg
- Compliances
- RoHS conform
- Certifications
- UL Listed; EN 13061
- Functions
- Flat busbar; Prepared enclosure; System for flat busbars
- Special features
- Flat copper busbars
- Used with
- SH0632; SH0635/4; System for flat busbars; 60 mm system; Accessory panel building; Modular busbar system; General switchboard accessory
- Accessory/spare part type
- Flat copper bars
- Model
- Flat
- Nominal current
- 250 A
- Type
- 60 mm system Accessory panel building General switchboard accessory Modular busbar system System for flat busbars
- Ambient operating temperature - max
- 35 °C
- Rated operation current (Ie)
- 250 A
- Uninterrupted current (Iu) of bar
- 630 A (30 x 10 mm, Tu=35 °C and Ts=65 °C); 200 A (12 x 5 mm, Tu=35 °C and Ts=65 °C); 520 A (20 x 10 mm, Tu=35 °C and Ts=65 °C); 320 A (12 x 5 mm, Tu=35 °C and Ts=65 °C); 360 A (12 x 10 mm, Tu=35 °C and Ts=65 °C); 450 A (30 x 5 mm, Tu=35 °C and Ts=65 °C)
- Distance between busbar centers
- 60 mm
- Material
- Copper, tinned
- Surface finishing
- Tinned
- Surface protection
- Tinned
- Unit type
- Modular system
- Flexible
- No
- Length
- 2250 mm
- Rated current In
- 250 A
- Country of origin
- Norway
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015080074663
- SAP 1000788129
- Code 81399330
Product Documentation
