Product Description
Eaton T0-1-8214/XZ single-pole reversing switch with return to 0 position, in a combination version rated 2.2 kW at AC-3 across 380 to 415 V. Rated uninterrupted current is 20 A with IP65 front protection and rear mounting. Overvoltage category III, pollution degree 3.
Technical Specifications
- Manufacturer part number (MPN)
- T0-1-8214/XZ
- EAN / GTIN
- 4015080095354
- Sales unit
- pcs
- Eaton catalogue number
- 009535
- Depth
- 48 mm
- Height
- 48 mm
- Width
- 48 mm
- Weight
- 0.07 kg
- Certifications
- CE
- Actuator type
- Short thumb-grip
- Number of auxiliary contacts (change-over contacts)
- 0
- Number of auxiliary contacts (normally closed contacts)
- 0
- Number of auxiliary contacts (normally open contacts)
- 0
- Number of contacts
- 2
- Rated operational current (Ie) at AC-21, 440 V
- 20 A
- Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V
- 11.5 A
- Rated operational power at AC-3, 380/400 V, 50 Hz
- 4 kW
- Rated uninterrupted current (Iu)
- 20 A
- Enclosure material
- Plastic
- Fitted with
- 0 (off) position
- Number of poles
- Single-pole
- Degree of protection
- IP65; NEMA 12
- Degree of protection (front side)
- IP65; NEMA 12
- Model
- Reverser
- Mounting method
- Rear mounting
- Mounting position
- As required
- Number of contact units
- 1
- Overvoltage category
- III
- Pollution degree
- 3
- Suitable for
- Intermediate mounting; Ground mounting; Front mounting
- Switching angle
- 45 °
- Rated operation power at AC-3, 400 V
- 4 kW
- Rated permanent current Iu
- 20 A
- Rated operation current Ie at AC-3, 400 V
- 11.5 A
- With zero (off) position
- Yes
- Housing material
- Plastic
- With retraction in 0-position
- No
- Degree of protection (IP), front side
- IP65
- Type of electrical connection of main circuit
- Screw connection
- Suitable for floor mounting
- Yes
- Suitable for front mounting
- Yes
- Suitable for distribution board installation
- No
- Suitable for intermediate mounting
- Yes
- Complete device in housing
- No
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015080095354
- SAP 1000072178
- Code 8562922
Product Documentation
More from Eaton
Eaton
EMC, DA1, FS6, 3 ~ 520 V, 180A (DX-EMC34-180-L)
Eaton

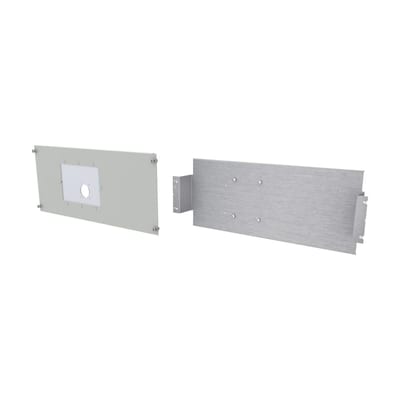

Mounting Kit QSA200/400 RH H300 B800 xEB
2457653
Eaton

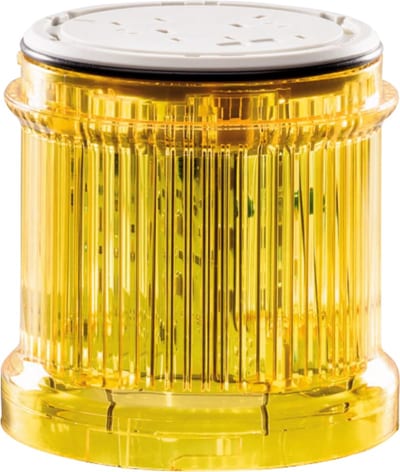

LED flashing light, Yellow, 230V (SL7-BL230-Y)
Eaton

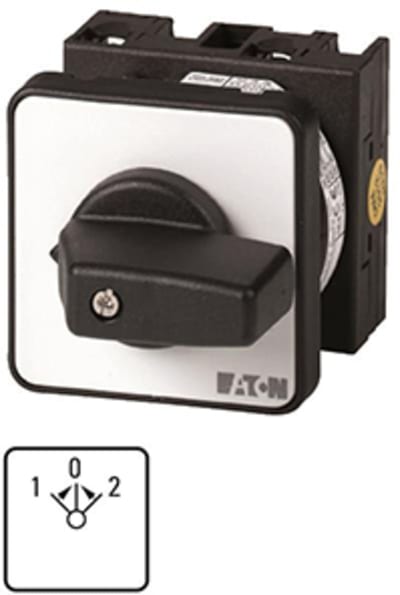

Selector Switch (T0-2-8215/EZ)
Eaton

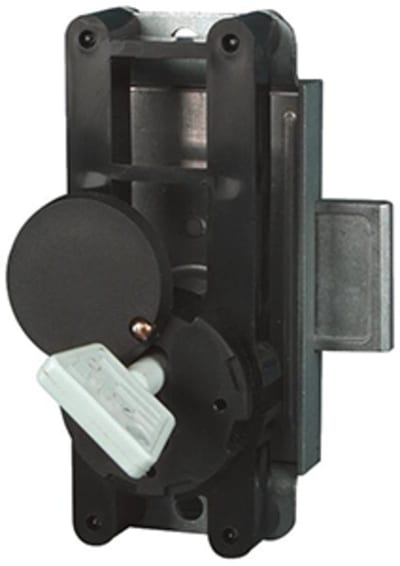

Lock KS xE (SS-KS-61005)
Eaton

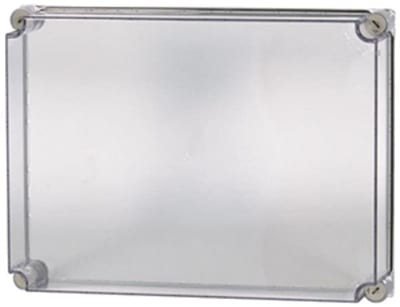

Cover, transparent (D200-CI45)
