Eaton

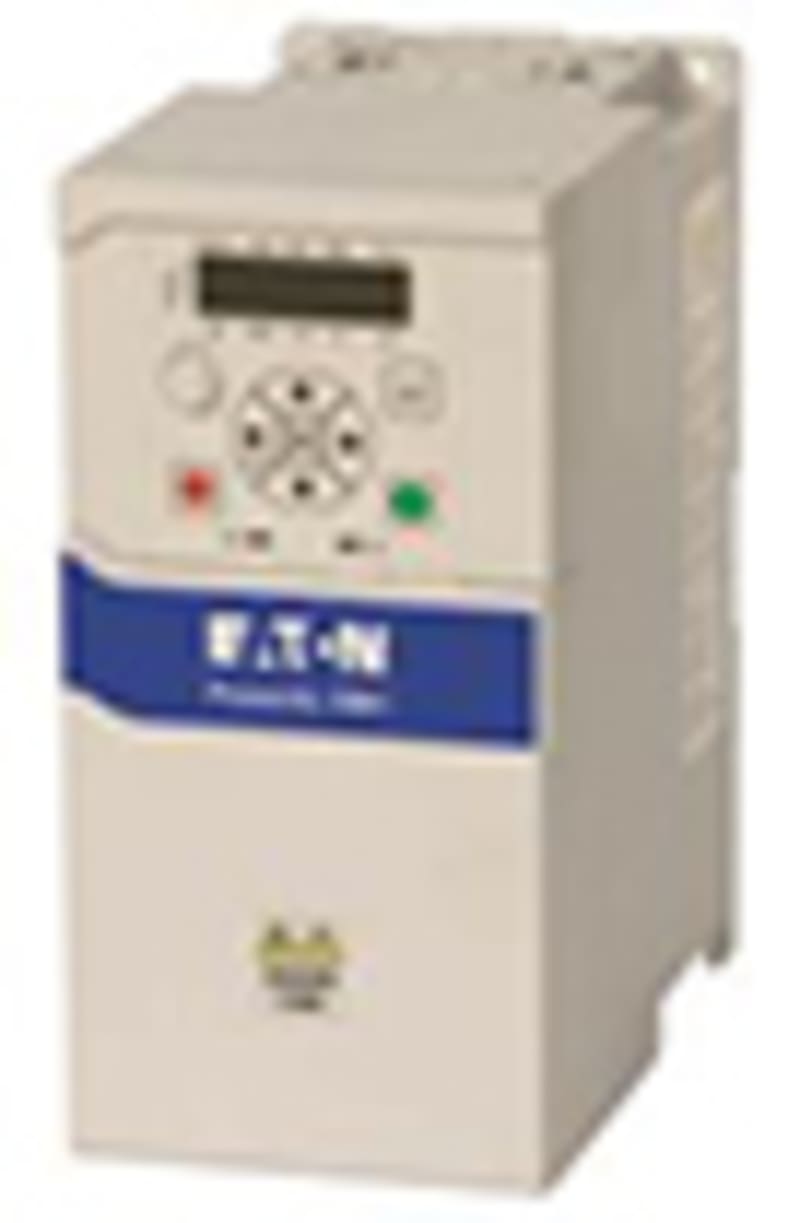

variable-frequency drive, DM1-114D8EB-S20S-EM
Part number3-5043-003AEAN / GTIN4015081980567HS code8504.40
Drives & Controllers
Variable Frequency Drives
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 3-5043-003A variable-frequency drive DM1, 115 V AC, 1-pole, 4.8 A, 0.55 kW, IP20/NEMA0, Safe Torque Off, SIL2, PLd Cat 3.
Technical Specifications
- Manufacturer part number (MPN)
- 3-5043-003A
- EAN / GTIN
- 4015081980567
- HS code
- 8504.40
- Sales unit
- pcs
- Width
- 109 mm
- Height
- 220 mm
- Depth
- 180 mm
- Power consumption
- 73 W
- With control element
- Yes
- Number of digital inputs
- 4
- Number of analogue inputs
- 1
- Number of analogue outputs
- 1
- Supporting protocol for LON
- No
- Number of HW-interfaces industrial Ethernet
- 1
- Number of HW-interfaces RS-485
- 1
- Number of HW-interfaces other
- 1
- With optical interface
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- Yes
- Supporting protocol for CAN
- Yes
- Supporting protocol for INTERBUS
- No
- Supporting protocol for KNX
- No
- Supporting protocol for Modbus
- Yes
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- Degree of protection (IP)
- IP20
- With PC connection
- Yes
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Mains voltage
- 100–120 V
- Mains frequency
- 50/60 Hz
- 4-quadrant operation possible
- Yes
- Type of converter
- U converter
- Number of phases output
- 3
- Number of phases input
- 1
- Integrated breaking resistance
- Yes
- Application in industrial area permitted
- Yes
- Application in domestic- and commercial area permitted
- Yes
- Max. output frequency
- 400 Hz
- Max. output at linear load at rated output voltage
- 0.75 kW
- Max. output at quadratic load at rated output voltage
- 1.1 kW
- Relative symmetric net voltage tolerance
- 10 %
- Relative symmetric net frequency tolerance
- 10 %
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Max. output voltage
- 240 V
- Nominal output current I2N
- 4.8 A
- Supporting protocol for BACnet
- Yes
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4015081980567
- SAP 1200657792
- Code 83089203
Product Documentation
Document preview: variable-frequency drive, DM1-114D8EB-S20S-EM (3-5043-003A) — Specification sheet
More from Eaton
Eaton
Eaton LAB-Bar_24TE
LAB-BAR_24TE
Eaton

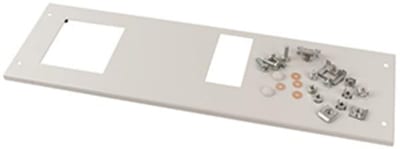

Front Plate Set NZM1 4P meter xE M H150
XMN140606C-1-UK
Eaton

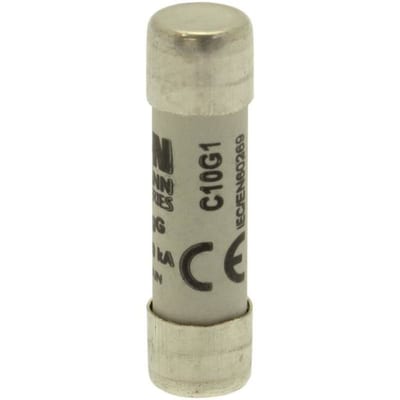

Cylindrical Fuse 10X38MM, 1A (C10G1)
Eaton

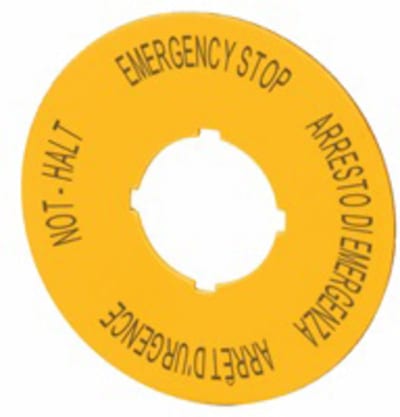

Emergency stop marking tag, RMQ (M22-XBK11)
Eaton

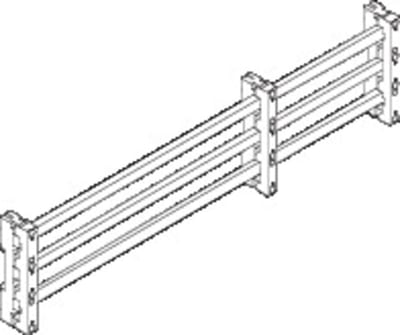

CU-RAIL 20X5 L=2250mm
CU20X5-2250
Eaton
Eaton FUSE Switch Flange 150
XNH1-A250
Eaton

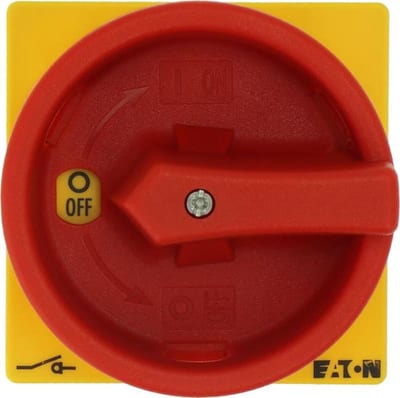

Safety Switch,P1-40/M4/SVB/N/HI11
Eaton

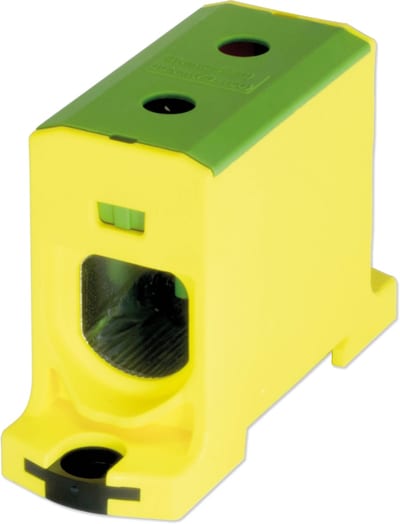

Terminal block 1X150 mm² yellow/green
