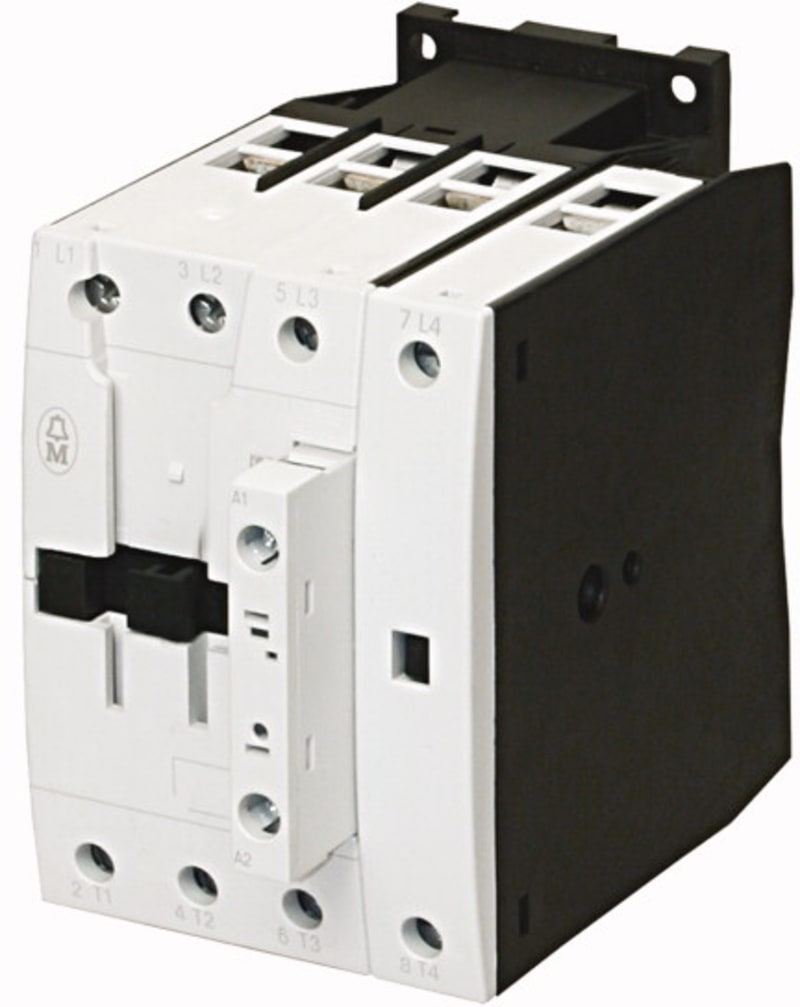

Contactor DILMP63(110V50HZ,120V60HZ)

Eaton DILMP63(110V50HZ,120V60HZ) Contactor, 4-pole, 63 A, 110 V 50 Hz, 120 V 60 Hz, AC operated.

Manufacturer part number (MPN)

DILMP63(110V50HZ,120V60HZ)

EAN / GTIN

4015081094165

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

109848

Depth

132 mm

Height

115 mm

Width

74 mm

Weight

1.04 kg

Certifications

UL File No.: E29096; CSA Class No.: 2411-03

3211-04; UL 60947-4-1; CSA File No.

012528; CSA-C22.2 No. 60947-4-1-14; UL; IEC/EN 60947-4-1; UL Category Control No.: NLDX; IEC/EN 60947; VDE 0660; CSA; CE

Catalog Notes

Contacts according to EN 50012

Shock resistance

7 g, N/O auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 5 g, N/C auxiliary contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms; 10 g, N/O main contact, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms

Altitude

Max. 2000 m

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Ambient operating temperature (enclosed) - max

40 °C

Ambient operating temperature (enclosed) - min

-25 °C

Ambient storage temperature - min

-40 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-3

Connection to SmartWire-DT

No

Number of main contacts (normally open contact)

4

Number of auxiliary contacts (normally closed contacts)

0

Number of auxiliary contacts (normally open contacts)

0

Number of contacts (normally closed) as main contact

0

Conventional thermal current Ith (1-pole, enclosed)

146 A

Conventional thermal current Ith (3-pole, enclosed)

50 A

Conventional thermal current Ith at 55°C (3-pole, open)

58 A

Conventional thermal current Ith at 60°C (3-pole, open)

54 A

Conventional thermal current Ith of main contacts (1-pole, open)

162 A

Equipment heat dissipation, current-dependent Pvid

16.5 W

Heat dissipation capacity Pdiss

0 W

Heat dissipation per pole, current-dependent Pvid

5.5 W

Rated operational current for specified heat dissipation (In)

63 A

Static heat dissipation, non-current-dependent Pvs

4.1 W

Rated breaking capacity at 220/230 V

400 A

Rated breaking capacity at 380/400 V

400 A

Rated breaking capacity at 500 V

400 A

Rated breaking capacity at 660/690 V

250 A

Rated insulation voltage (Ui)

690 V

Rated making capacity up to 690 V (cos phi to IEC/EN 60947)

560 A

Rated operational current (Ie) at AC-1, 380 V, 400 V

415 V

63 A

Rated operational current (Ie) at AC-3, 220 V, 230 V

240 V

40 A

Rated operational current (Ie) at AC-3, 380 V, 400 V

415 V

40 A

Rated operational current (Ie) at AC-3

440 V

40 A

Rated operational current (Ie) at AC-3

500 V

40 A

Rated operational current (Ie) at AC-3, 660 V

690 V

25 A

Rated operational current (Ie) at DC-1

110 V

63 A

Rated operational current (Ie) at DC-1

220 V

63 A

Rated operational current (Ie) at DC-1

60 V

63 A

Rated operational power at AC-1, 220/230 V

50 Hz

23 kW

Rated operational power at AC-1, 240 V

50 Hz

25 kW

Rated operational power at AC-1, 380/400 V

50 Hz

39 kW

Rated operational power at AC-1, 415 V

50 Hz

43 kW

Rated operational power at AC-1, 440 V

50 Hz

46 kW

Rated operational power at AC-1, 500 V

50 Hz

52 kW

Rated operational power at AC-1, 690 V

50 Hz

68 kW

Rated operational power at AC-3, 240 V

50 Hz

13.5 kW

Rated operational power at AC-3, 380/400 V

50 Hz

18.5 kW

Rated operational power at AC-3, 415 V

50 Hz

24 kW

Rated operational power at AC-3, 440 V

Rated operational power at AC-3, 500 V

50 Hz

28 kW

Rated operational power at AC-3, 690 V

Rated operational voltage (Ue) at AC - max

690 V

Interference immunity

According to EN 60947-1

Number of poles

Four-pole

Application

Contactors for 4 pole electric consumers

Connection

Screw terminals

Degree of protection

IP00

Lifespan, mechanical

10,000,000 Operations (DC operated); 10,000,000 Operations (AC operated)

Operating frequency

5000 mechanical Operations/h (AC operated); 5000 mechanical Operations/h (DC operated)

Overvoltage category

III

Pollution degree

3

Product category

Contactors

Protection

Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Rated impulse withstand voltage (Uimp)

8000 V AC

Residual current

1 mA (with actuation of A1 - A2 by the electronics with "0" signal)

Resistance per pole

1.9 mΩ

Utilization category

AC-1: Non-inductive or slightly inductive loads, resistance furnaces; AC-3: Normal AC induction motors: starting, switch off during running

Voltage type

AC

Drop-out voltage

AC operated: 0.6 - 0.4 x UC, AC operated

Duty factor

100 %

Pick-up voltage

0.8 - 1.1 V AC x Uc; 0.85 - 1.1 V AC/DC x Us

Power consumption, pick-up

50 Hz

150 VA, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, pick-up

60 Hz

150 VA, Dual-frequency coil in a cold state and 1.0 x Us; 95 W, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz

Power consumption, sealing

50 Hz

4.1 W, Dual-frequency coil in a cold state and 1.0 x Us

Power consumption, sealing

60 Hz

16 VA, Dual-frequency coil in a cold state and 1.0 x Us, at 60 Hz; 4.1 W, Dual-frequency coil in a cold state and 1.0 x Us

Rated control supply voltage (Us) at AC

50 Hz - max

110 V

Rated control supply voltage (Us) at AC

50 Hz - min

110 V

Rated control supply voltage (Us) at AC

60 Hz - max

120 V

Rated control supply voltage (Us) at AC

60 Hz - min

120 V

HS Code

8536.90

• EAN 4015081094165
• SAP 1000252320
• Code 81131869
