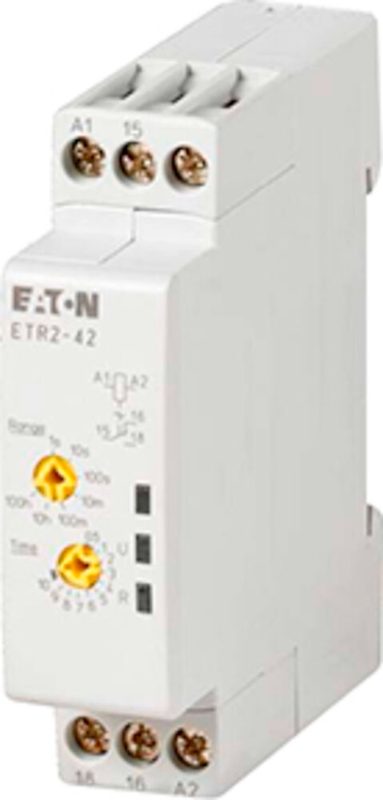

Time relay ETR2-42

Eaton ETR2-42 Time relay, 0.05s-100h, 24-240VAC 50/60Hz, 24-48VDC, 1W, blink.

Manufacturer part number (MPN)

ETR2-42

EAN / GTIN

4015082626884

HS code

8536.90

Sales unit

pcs

Eaton catalogue number

262688

Depth

63 mm

Height

70 mm

Width

17.5 mm

Weight

0.051 kg

Certifications

Certified by UL for use in Canada; UL 508; CSA File No.: UL report valid; UL; CSA-22.2 No. 14; CSA Class No.: 3211-03; IEC/EN 61812-1; UL File No.: E29184; CE; IEC/EN 60947-5-1; UL Category Control No.: NKCR, NKCR7

Ambient operating temperature - max

60 °C

Ambient operating temperature - min

-25 °C

Heat dissipation capacity Pdiss

0 W

Mains voltage tolerance

24 - 240 V AC (at 50/60 Hz); 24 - 48 V DC

Nominal current

3 A

Rated operational current (Ie)

3 A at 230 V (NC); 3 A at 230 V (NO); 4 A at AC-15, 220 V 230 V 240 V

Electric connection type

Screw connection

Functions

Flashing, starting with pause, fixed time; Flashing, starting with pulse, fixed time; Fixed timing function; Flashing, pulse initiating; Remote operation possible

Degree of protection

IP20

Number of contacts (change-over contacts)

1

Product category

ETR2 timing relays

Suitable for

DIN rail (top hat rail) mounting

Time range - max

360000 s

Time range - min

0.05 s

Type

Timer relay

Voltage type

AC/DC

Rated control supply voltage (Us) at AC, 50 Hz - max

240 V

Rated control supply voltage (Us) at AC, 50 Hz - min

24 V

Rated control supply voltage (Us) at AC, 60 Hz - max

240 V

Rated control supply voltage (Us) at AC, 60 Hz - min

24 V

Rated control supply voltage (Us) at DC - max

240 V

Rated control supply voltage (Us) at DC - min

24 V

HS Code

8536.90

• EAN 4015082626884
• SAP 1000289123
• Code 847265
