Eaton

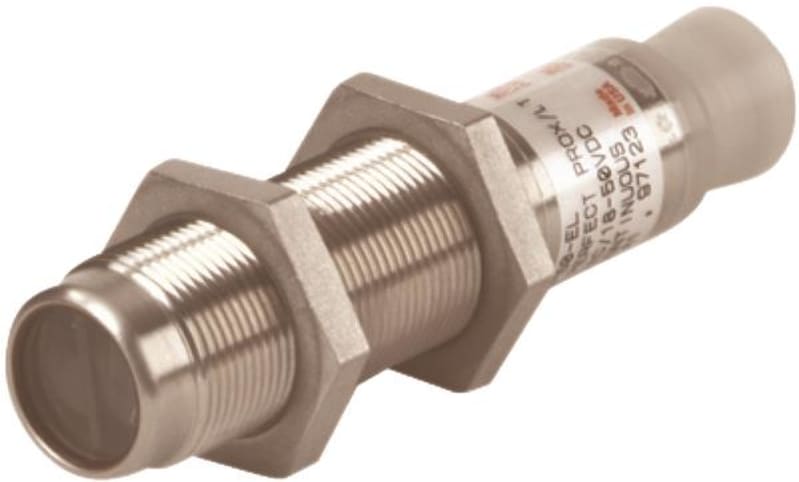

Optical sensor E58-18DP50-HLP
Part numberE58-18DP50-HLPEAN / GTIN4015081324668HS code8536.90
Sensors & Instrumentation
Photoelectric Sensors
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton E58-18DP50-HLP Optical sensor, Sn=50mm, 4L, 10-30VDC, light, NPN, PNP, M18, metal, M12.
Technical Specifications
- Manufacturer part number (MPN)
- E58-18DP50-HLP
- EAN / GTIN
- 4015081324668
- HS code
- 8536.90
- Sales unit
- pcs
- Eaton catalogue number
- 135673
- Depth
- 38.1 mm
- Height
- 38.1 mm
- Width
- 38.1 mm
- Weight
- 0.23 kg
- Certifications
- UL 508; Certified by UL for use in Canada; CSA-C22.2 No. 14; UL; CE; IEC/EN 60947-5-2; CSA File No.: UL report applies to both US and Canada; UL Category Control No.: NRKH
- NRKH7; UL File No.
- E166051
- Type
- Optical sensors
- Electric connection type
- Connector M12
- Fitted with
- Background suppression (Perfect Prox)
- Enclosure material
- Metal
- Enclosure type
- Cylinder, screw-thread
- Operating mode
- Switching principle: Light switching
- Explosion safety category for dust
- None
- Explosion safety category for gas
- None
- Functions
- Short-circuit protection; Protection against wire breakage; Reflected-light beam; Protection against polarity reversal
- Voltage type
- DC
- Wire size
- 0
- Connection type
- 4-wire; Plug-in connection M12 x 1
- Cable sheath material
- Other
- Light type
- Other
- Degree of protection
- NEMA 6; IP68
- Interface type
- Other
- LED indicator
- Status indication of Switching state: Red LED
- Switch function type
- Other
- Load current
- Max. 100 mA (Ie, PNP); Max. 250 mA (Ie, NPN)
- Laser protection class
- None
- Operation agent-safety class
- Safety class 2
- Shock resistance
- 100 g, Mechanical, Shock duration 3 ms
- Optical surface material
- Glass
- Output current (mA) - max
- 250 mA
- Rated control supply voltage (Us) at DC - max
- 30 V
- Rated control supply voltage (Us) at DC - min
- 10 V
- Rated switching distance (Sn)
- 50 mm
- Sensor length
- 80 mm
- Switching distance - max
- 57 mm
- Switching voltage of OSSD at state high
- 30 V
- Voltage rating - max
- 30 V
- Safety type (IEC 61496-1)
- 1
- Switching frequency
- 500 Hz
- Sensing mode
- Light switching
- Switching output type
- PNP
- Sensor material
- Stainless steel
- Triangulation
- Background fade-out
- Wavelength of the sensor
- 660 nm
- Product category
- E58 Harsh Duty Series
- Response time
- 1 ms
- Adjustment range - max
- 50 mm
- Adjustment range - min
- 0 mm
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -40 °C
- Diameter sensor
- 18 mm
- Number of contact energized outputs with signalling function
- 0
- Number of outputs (protected contact energized)
- 0
- Number of outputs (protected semiconductor)
- 0
- Number of outputs (semiconductor with signaling function)
- 2
- Adjustment type
- Other
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081324668
- SAP 1200606853
- Code 82994645
Product Documentation
Document preview: Optisk sensor, — Specification Data Sheet (OEM)
More from Eaton
Eaton
STYREL.Connection
NZM2-XSTS
Eaton
Selector Switch (T0-3-8216/EZ)
Eaton

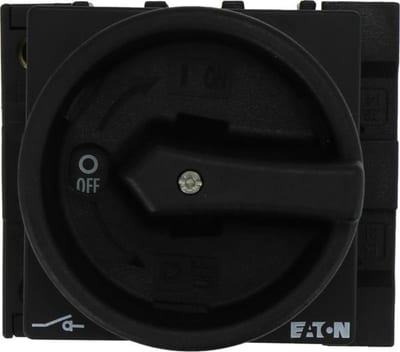

Main switch,P1-40/EA/SVB-SW/N/HI11
Eaton

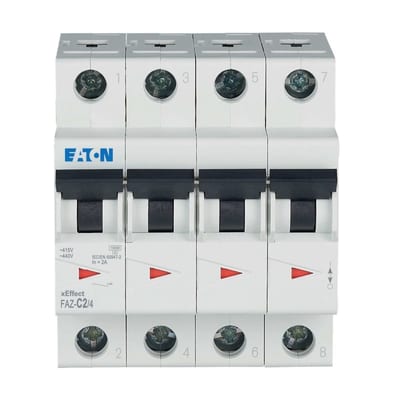

Eaton FAZ-C2/4 Miniature Circuit Breaker — 4P, Type C, 2 A, 15 kA
Eaton

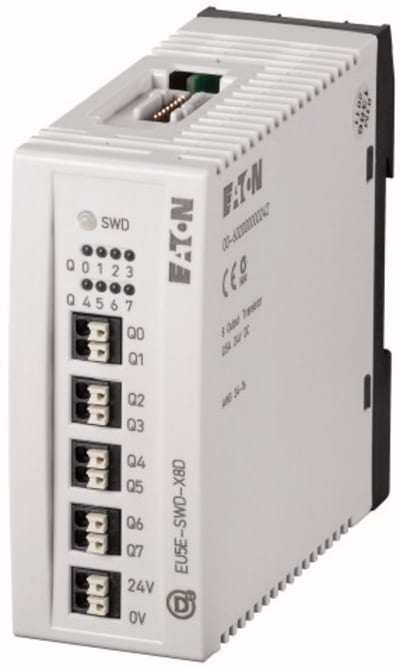

Eaton EU5E-SWD-X8D
Eaton

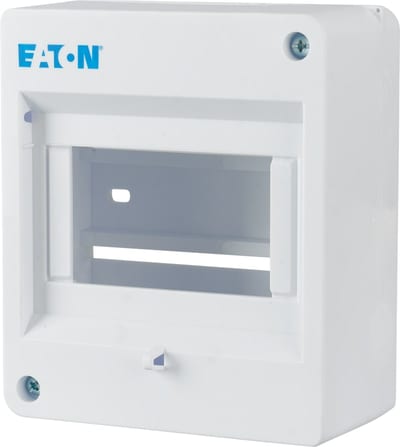

MINI Enclosure IP20 1-Row 5-Mod
MINI-5
Eaton

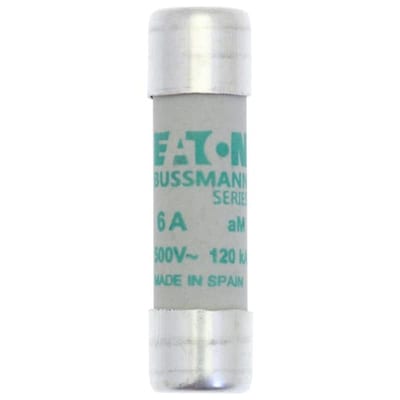

Cylindrical Fuse 10X38MM, 6A (C10M6)
