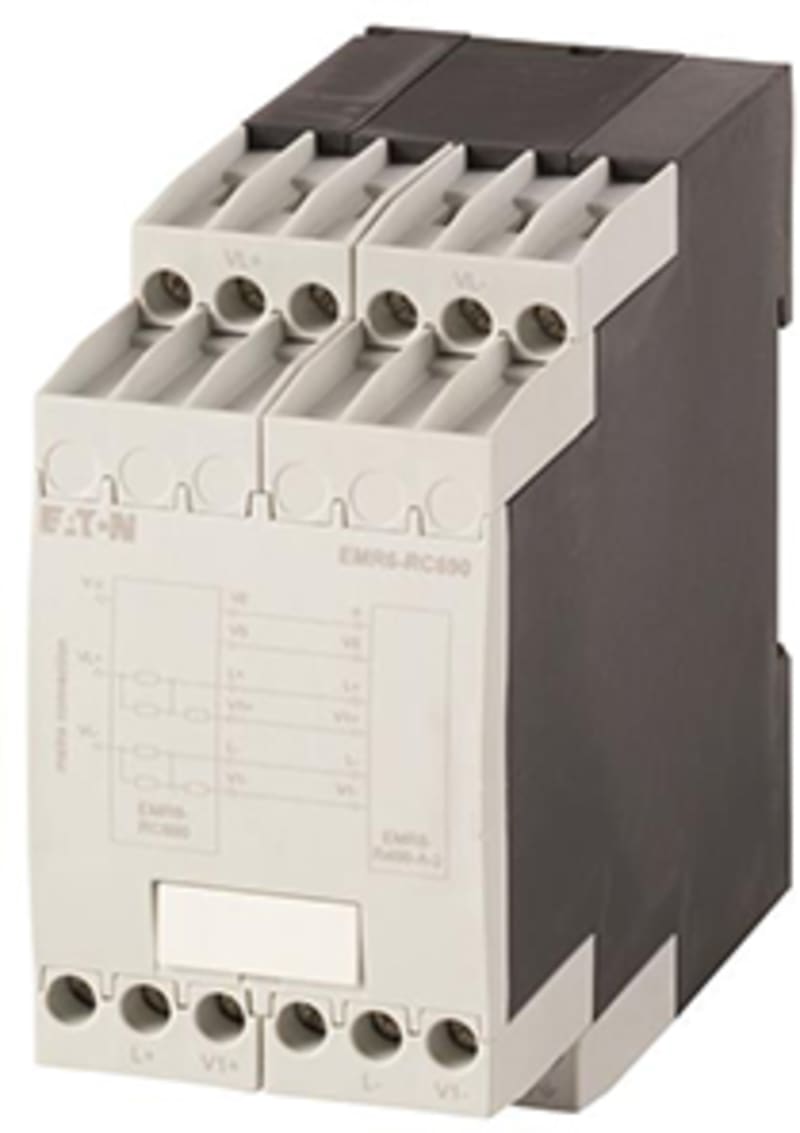

Isolasjons relay (EMR6-RC690)

Eaton Isolasjons relay (EMR6-RC690) is listed under Control & Automation / Monitoring Relays. Sales unit: pcs; Eaton catalogue number: 184775; Depth: 100 mm; Height: 78 mm; Width: 45 mm; Weight: 0.179 kg.

Manufacturer part number (MPN)

EMR6-RC690

EAN / GTIN

4015081788118

Sales unit

pcs

Eaton catalogue number

184775

Depth

100 mm

Height

78 mm

Width

45 mm

Weight

0.179 kg

Certifications

IEC/EN 60255-6

Ambient operating temperature - max

60 °C

Ambient storage temperature - max

85 °C

Ambient operating temperature - min

-25 °C

Climatic proofing

Damp heat, cyclic, to IEC 60068-2-30

Air discharge

Air/contact discharge, according to IEC/EN 61000-4-2, level 3

Burst impulse

According to IEC/EN 61000-4-4, level 3

Electromagnetic compatibility

According to IEC/EN 60947-6-2

Immunity to line-conducted interference

Level 3 (according to IEC/EN 61000-4-6)

Immunity to radiation

Level 3 (according to IEC/EN 61000-4-3)

Surge rating

According to IEC/EN 61000-4-5 Level 4

Electric connection type

Screw connection

Functions

For mixed system

Voltage measurement - max

1000 V

Cable length

10 m

Degree of protection

Enclosure: IP50; Terminals: IP20

LED indicator

Status indication of Faults at L-: Red LED; Status indication of Supply voltage: Green LED; Status indication of Faults at L+: Red LED

Lifespan, mechanical

30,000,000 Operations

Mounting position

As required

Overvoltage category

III

Pollution degree

3

Product category

EMR Measuring and monitoring relays

Rated impulse withstand voltage (Uimp)

4000 V AC

Shock resistance

Class 2

Type

Insulation monitoring relay

Voltage type

AC/DC

Duty factor

100 %, Power supply

Rated frequency - max

60 Hz

Rated frequency - min

15 Hz

Rated operational voltage of monitored supply system

0 - 1000 V DC; 0 - 690 V AC

Voltage tolerance

0.85 x Uc; 1.1 x Uc

Lifespan, electrical

100,000 Operation (at 230 V, AC-12, 4 A)

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

0

Rated operational current (Ie)

5 A at AC-12, 230 V

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

3 A

Rated operational current (Ie) at DC-13, 24 V

2.5 A

Rated operational voltage (Ue) - max

690 V

Short-circuit protection rating

Max. 10 A Fast/gL, Fuse, Relay output contacts

Connection type

Snap fixing, top-hat rail IEC/EN 60715

Screwdriver size

5.5 x 0.8 mm, Terminal screw

Terminal capacity (flexible with ferrule AWG)

2 x 18-16

Terminal capacity (flexible with ferrule)

2 x 0.5-1.5 mm²

Terminal capacity (solid AWG)

18 - 14

Terminal capacity (solid)

1 x 0.5-2.5 mm²

Tightening torque

Min. 0.5 Nm, Screw terminals; 0.8 Nm, Screw terminals

Operating voltage AC 50 Hz

0–690 V

Operating voltage AC 60 Hz

0–690 V

Operating voltage DC

0–1000 V

External power supply required

No

Supply voltage AC 50 Hz

0–690 V

Supply voltage AC 60 Hz

0–690 V

Supply voltage DC

0–1000 V

Rated operating frequency

15–60 Hz

Voltage measuring range

0–1000 V

Type of electric connection

Screw connection

Voltage type for actuating

AC/DC

With detachable clamps

No

Rated voltage

0–690 V

Rated frequency

15–400 Hz

Line capacity

20 µF

Response value impedance 1

1–100 kOhm

Response value impedance 2

1–200 kOhm

Indication of insulation value

No

Error registration possible

No

Country of origin

Germany

HS Code

8536.49
