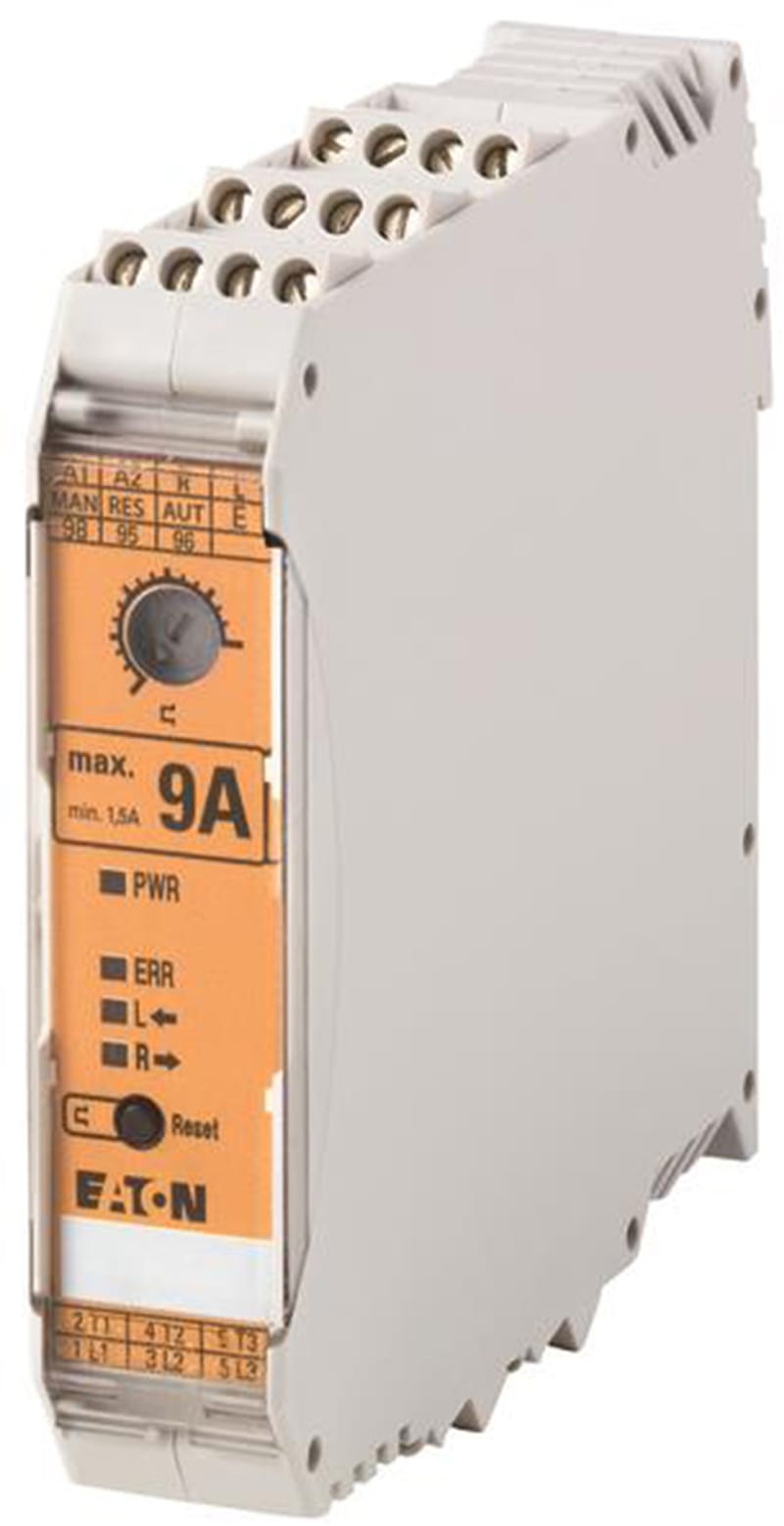

Eaton Direct Online Starter (DOL), Screw Connection (EMS2-DOS-Z-9-24VDC)

Eaton EMS2-DOS-Z-9-24VDC direct-on-line starter, 24 V DC, 1.5–7 (AC-53a), 9 (AC-51) A, screw terminals, controlled stop.

Manufacturer part number (MPN)

EMS2-DOS-Z-9-24VDC

EAN / GTIN

4015080896074

Sales unit

pcs

Eaton catalogue number

197166

Depth

114.5 mm

Height

99 mm

Width

22.5 mm

Weight

0.287 kg

Certifications

IEC/EN 60947-4-2; IEC 61508; EN ISO 13849; UL508; UL File No.: E338590; UL Category Control No.: NLDX, NLDX7; PTB 19 ATEX 3000; UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14; CE marking; UL listed; Certified by UL for use in Canada; UL report applies to both US and Canada

Ambient operating temperature - max

70 °C

Ambient storage temperature - max

80 °C

Ambient operating temperature - min

-25 °C

Number of auxiliary contacts (normally closed contacts)

1

Number of auxiliary contacts (normally open contacts)

1

Number of contacts (change-over contacts)

1

Equipment heat dissipation, current-dependent Pvid

12 W

Heat dissipation details

If necessary, Allow for derating

Rated operational current for specified heat dissipation (In)

9 A

Static heat dissipation, non-current-dependent Pvs

2 W

Rated actuating current (Ic)

5 mA

Rated control supply current Is

40 mA

Rated control supply voltage

19.2 - 30 V DC

Rated control supply voltage (Us) at DC - max

24 V

Rated control supply voltage (Us) at DC - min

24 V

Rated control voltage (Uc)

24 V (Actuating circuit ON, L, R)

Rated operational current (Ie)

9 A

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

2 A

Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V

7 A

Rated operational current (Ie) at AC-51

9 A

Rated operational current (Ie) at AC-53A - max

7 A

Rated operational current (Ie) at DC-13, 24 V

2 A

Rated operational power at AC-3, 220/230 V, 50 Hz

1.5 kW

Rated operational power at AC-3, 380/400 V, 50 Hz

3 kW

Rated operational power at AC-53A, 380/400 V, 50 Hz

3 kW

Rated operational voltage

500 V AC; 42 - 550 V

Switching level

-3 - 9.6 V DC, Switching level "Low", Actuating circuit (ON, L, R); 19.2 - 30 V DC, Switching level "High", Actuating circuit (ON, L, R); < 5 V DC, Switching level "confirm Off", Actuating circuit (ON, L, R)

Radio interference class

Class A (EN 61000-6-3, emitted interference, radiated); EN 55011

Functions

Temperature compensated overload protection; Motor protection; Controlled stop; DOL starting

Class

CLASS 10 A

Connection to SmartWire-DT

No

Degree of protection

IP20; NEMA Other

Model

Direct starter

Mounting method

Rail mounting possible; Top-hat rail fixing (according to IEC/EN 60715, 35 mm)

Mounting position

Vertical; Motor feeder at bottom

Overload release current setting - max

9 A

Overload release current setting - min

1.5 A

Product category

Electronic motor starter

Residual ripple

≤ 5 % (input voltage)

Terminal capacity

0.2 - 2.5 mm², Main cables; 0.14 - 2.5 mm², Control circuit cables; 0.2 - 2.5 mm², Main cables, Push-in terminals

Terminal capacity (AWG)

26 - 14, Control circuit cables; 24 - 14, Main cables

Type

DOL starter (complete device)

Voltage type

DC

Explosion safety category for dust

ATEX dust-ex-protection, II (2) D [Ex t] [Ex p]; ATEX dust-ex-protection, II (2) G [Ex e] [Ex d] [Ex px]

Safety parameter (EN ISO 13849-1)

PL e, Performance level (safe switch off); 3 (safe switch off), Category; 60 (safe switch off) / 70 (motor protection) years; MTTFD

With transformer

No

Power consumption

12 W

Rated operation power at AC-3, 400 V

3 kW

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Suitable for emergency stop

Yes

Rated operation current Ie

9 A

Number of indicator lights

3

Overload release current setting

1.5–9 A

Supporting protocol for LON

No

Supporting protocol for TCP/IP

No

Supporting protocol for ASI

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for other bus systems

No

External reset possible

Yes

Suitable for rail mounting

Yes

Rated control supply voltage DC

24 V

Supporting protocol for SERCOS

No

Supporting protocol for INTERBUS-Safety

No

Release class

CLASS 10

With short-circuit release

No

With fuse

No

Type of electrical connection of main circuit

Screw connection

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Voltage type for actuating

DC

Type of motor starter

Direct online starter (DOL)

Rated operation power at AC-3, 230 V, 3-phase

1.5 kW

Rated operation current at AC-3, 400 V

7 A

Ambient temperature, upper operating limit

40 °C

Temperature compensated overload protection

Yes

Coordination class according to IEC 60947-4-3

Class 1

Country of origin

Germany

HS Code

8536.50

• EAN 4015080896074
• SAP 1200527040
• Code 82936419
