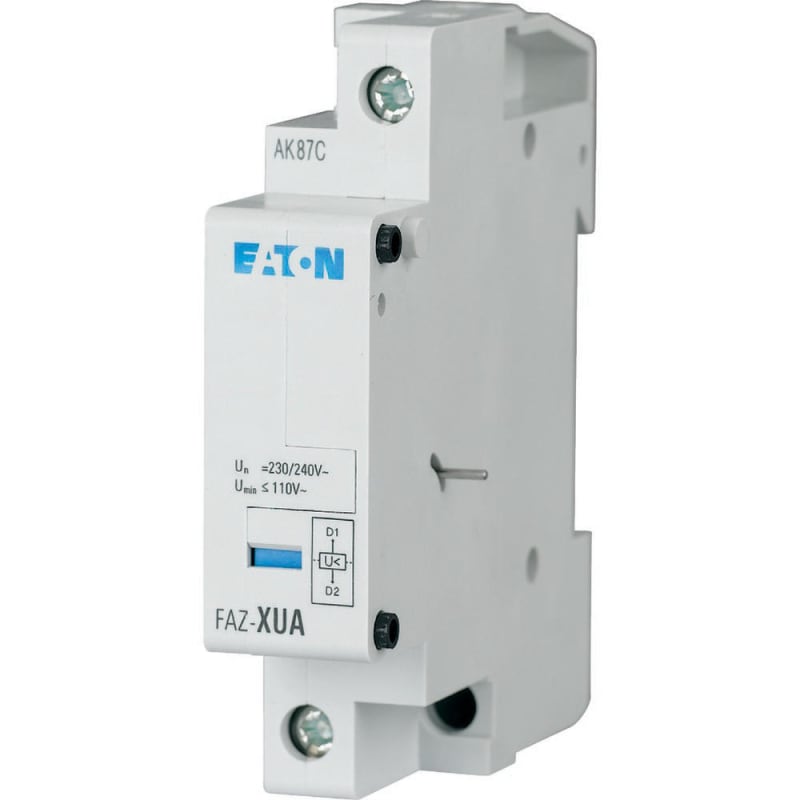

Eaton Undervoltage release, 230 V, non-delayed, 1hp
Part numberFAZ-XUA(230VAC)EAN / GTIN4015082120511HS code8536.50
Electrical Components
Circuit Breaker Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton FAZ-XUA(230VAC) Undervoltage release, 230 V, non-delayed, 1HP.
Technical Specifications
- Manufacturer part number (MPN)
- FAZ-XUA(230VAC)
- EAN / GTIN
- 4015082120511
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Eaton catalogue number
- 212051
- Depth
- 80 mm
- Height
- 75.5 mm
- Width
- 17.5 mm
- Weight
- 0.105 kg
- Compliances
- RoHS conform
- Certifications
- EN45545-2; IEC 61373
- Catalog Notes
- 30VAC
- Used with
- Accessory for miniature circuit breaker; Accessory
- Accessory/spare part type
- Undervoltage release
- Degree of protection
- IP40
- Frame
- Standard front dimension: 45 mm
- Frequency rating
- 50 Hz / 60 Hz
- Mounting method
- Top-hat rail IEC/EN 60715
- Additional equipment required
- Under voltage coil
- Terminal protection
- Protection against electric shock to IEC 536
- Terminal type
- Twin-purpose terminals
- Tripping threshold
- 0.5 x Un
- Ambient operating temperature - max
- 40 °C
- Ambient operating temperature - min
- -5 °C
- Assembly width
- 1
- Enclosure width
- 80 mm
- Number of contacts (change-over contacts)
- 0
- Number of contacts (normally closed contacts)
- 1
- Number of contacts (normally open contacts)
- 1
- Number of poles at main contact unit - max
- 1
- Number of switches (fault signal)
- 0
- Voltage type
- AC
- Functions
- Under voltage coil
- Closing threshold
- 0.8 x Un
- Device fitting
- Miniature circuit breaker (MCB)
- Type
- Accessory Accessory for miniature circuit breaker
- Mounting width
- 17.5 mm (1 space unit)
- Rated operational voltage (Ue) - max
- 230 V
- Terminal capacity (cable)
- 1 mm² - 2.5 mm² (2x)
- Terminal capacity (solid wire)
- 1 mm² - 2.5 mm² (2x)
- Rated voltage
- 230 V
- Installed at the factory
- No
- Width in number of modular spacings
- 1
- Additional equipment
- Under voltage coil
- Voltage type for actuating
- AC
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- With auto test for earth leakage function
- No
- Suitable for max. number of poles main contact unit (total)
- 1
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015082120511
- SAP 1000252426
- Code 8216262
Product Documentation
Document preview: Eaton Undervoltage release, 230 V, non-delayed, 1HP — Specification Data Sheet (OEM)
