2AO 0-10V and 2AO 4-20MA

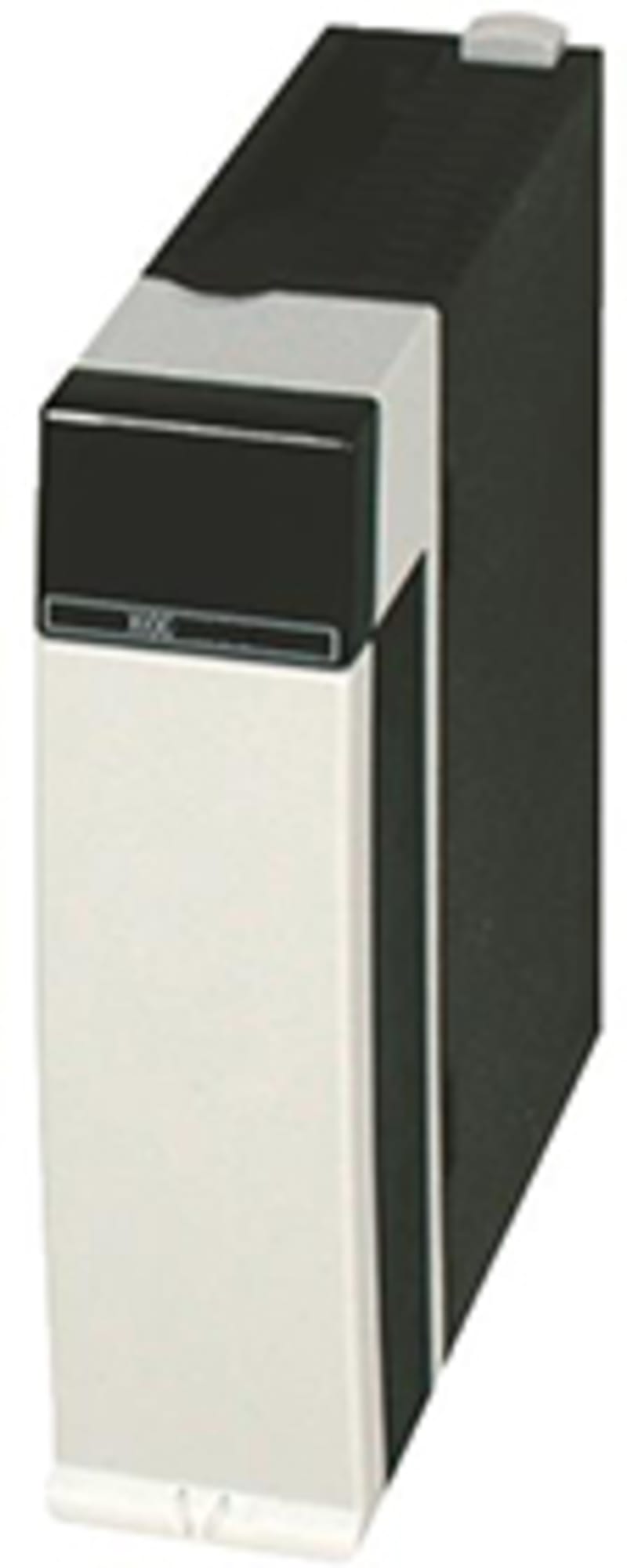

Eaton 2AO 0-10V and 2AO 4-20MA (part number XIOC-2AO-U1-2AO-I2) is listed under Control & Automation / PLCs. Sales unit: pcs; Eaton catalogue number: 257902; Depth: 100 mm; Height: 95 mm; Width: 30 mm; Weight: 0.135 kg.

Manufacturer part number (MPN)

XIOC-2AO-U1-2AO-I2

EAN / GTIN

4015082579029

Sales unit

pcs

Eaton catalogue number

257902

Depth

100 mm

Height

95 mm

Width

30 mm

Weight

0.135 kg

Certifications

UL508; EN 50178; UL Category Control No.: NRAQ; UL File No.: E135462; CSA Class No.: 2252-01; UL; CE; CSA-C22.2 No. 0-M; CSA-C22.2 No. 142-M; CSA; CSA File No.: 012528; IEC/EN 61131-2

Impact resistance

500 g/⌀ 50 mm ±25 g

Shock resistance

15 g, Mechanical, Shock duration 11 ms

Vibration resistance

57 - 150 Hz ± 1.0 mm; 10 - 57 Hz, ± 0.075 mm

Ambient operating temperature - max

55 °C

Ambient storage temperature - max

70 °C

Ambient operating temperature - min

0 °C

Ambient storage temperature - min

-25 °C

Connection type

Plug-in terminal block, Outputs; 2-core screened cable (≤ 20 m), Outputs

Static heat dissipation, non-current-dependent Pvs

0.5 W

Power loss

Max. 0.5 W

Power supply

24 V DC (-15/+20 %), approx. 150 mA

Rated operational voltage

24 (12) V DC

Supply voltage at DC - max

24 VDC

Emitted interference

Class A (according to DIN/EN 55011/22)

Voltage dips

10 ms

Electric connection type

Screw-/spring clamp connection

Features

Output, voltage; Output, current; Analog outputs configurable; Analog inputs configurable

Admissible range

20.4 – 28.8 V (11.8 – 14.4 V), Power supply

Current consumption

100 mA, external, Outputs

Degree of protection

IP20

Overvoltage category

II

Pollution degree

2

Protection class

1

Repetition rate

1 s

Residual ripple

≤ 5 %

Resistance

0 - 500 Ω (external load, current output)

Resolution

12 Bit

Type

Analog module

Used with

XC100/200 (expandable with up to 15 XI/OC modules)

Conversions

≤ 5 ms, Inputs

Load resistance

≤ 10 kΩ

Number of inputs (analog)

0

Number of outputs (analog)

4

Output

2 Outputs (0 - 10 V); 2 Outputs (4 - 20 mA); Outputs

Output current

0.004 - 0.02 A

Output voltage

0 - 10 V DC; 2 (channels 0 and 1)

Total error

≤ ±1 % (of the full-scale value), Outputs

Explosion safety category for dust

None

Explosion safety category for gas

None

Potential isolation

Circuit within each channel: Opto-isolated

Terminals

Optionally, screw terminals or spring-loaded terminals for digital/analog modules

Number of analogue outputs

4

Analogue inputs configurable

Yes

Analogue outputs configurable

Yes

Input, current

No

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Output signal configurable

No

Resolution of the analogue outputs

12 Bit

Type of electric connection

Screw-/spring clamp connection

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Country of origin

Japan

HS Code

8537.10
