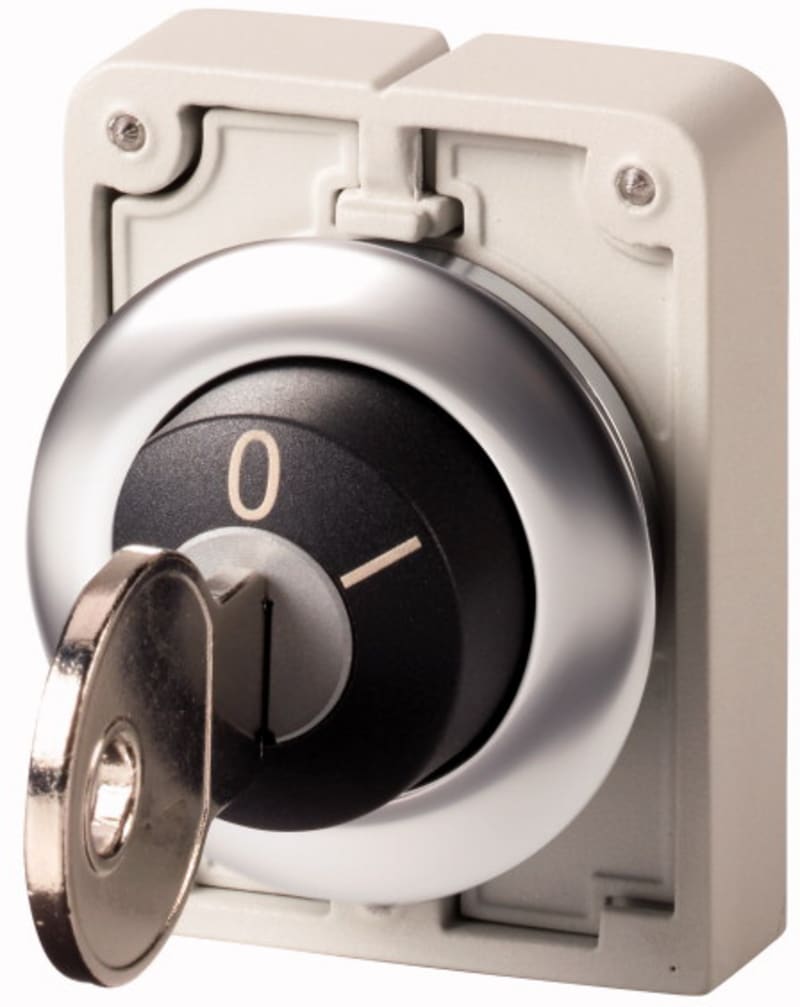

Key switch, Flat Front (M30C-FWS-MS3)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Key switch, Flat Front (M30C-FWS-MS3) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Eaton catalogue number: 187074; Depth: 36 mm; Height: 67 mm; Width: 46 mm; Weight: 0.06 kg.
Technical Specifications
- Manufacturer part number (MPN)
- M30C-FWS-MS3
- EAN / GTIN
- 4015081821334
- Sales unit
- pcs
- Eaton catalogue number
- 187074
- Depth
- 36 mm
- Height
- 67 mm
- Width
- 46 mm
- Weight
- 0.06 kg
- Certifications
- VDE 0660; IEC/EN 60947
- Actuator color
- Black
- Actuator function
- Key withdrawable in position 0; Spring-return; Momentary
- Actuator type
- Key
- Bezel color
- Titanium
- Bezel material
- Metal
- Design
- Key operation lock mechanism
- Fitted with
- Front ring
- Functions
- Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
- Indicator color
- Other
- Key code
- MS3
- Lens type
- Round
- Number of switch positions
- 2
- Ambient operating temperature - max
- 70 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Damp heat, constant, to IEC 60068-2-78; Damp heat, cyclic, to IEC 60068-2-30
- Connection to SmartWire-DT
- With SWD-RMQ connections; Yes
- Accessories
- 1 key included with supplied equipment.
- Degree of protection
- NEMA 4X, 13
- Degree of protection (front side)
- IP66
- Lifespan, mechanical
- 100,000 Operations
- Mounting position
- As required
- Opening diameter
- 30 mm
- Operating frequency
- 100 Operations/h
- Operating torque
- 0.5 Nm
- Overvoltage category
- III
- Pollution degree
- 3
- Product category
- RMQ-Titan
- Size
- Front dimensions: Ø 36 mm
- Switching angle
- 40 °
- Type
- Key-operated button
- Hole diameter
- 30 mm
- Suitable for lighting
- No
- Spring-return
- Yes
- Colour front ring
- Chrome
- Degree of protection (IP), front side
- IP64
- Material front ring
- Metal
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Key
- Colour control element
- Black
- Switching function latching
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4015081821334
- SAP 1200037172
- Code 81866597
