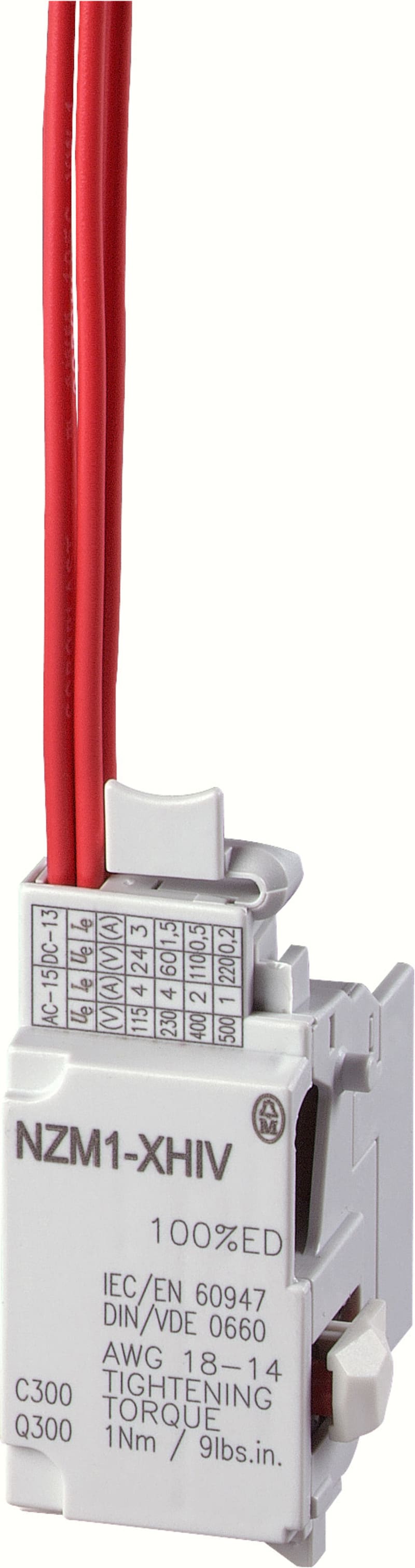

Auxiliary contact NZM1-XHIV

Eaton NZM1-XHIV Nzm1-Xhiv Auxiliary Contact.

Manufacturer part number (MPN)

NZM1-XHIV

EAN / GTIN

4015082594268

Sales unit

pcs

Eaton catalogue number

259426

Depth

37 mm

Height

66 mm

Width

32 mm

Weight

0.063 kg

Compliances

RoHS conform

Certifications

UL489; UL (File No. E140305); CE marking; CSA-C22.2 No. 5-09; CSA certified; CSA (Class No. 1437-01); UL listed; UL (Category Control Number DIHS); IEC60947; CSA (File No. 22086)

Model

Integrable

Special features

C300/R300 (auxiliary contacts, UL/CSA, pilot duty)

Used with

FAZ-B6 (max. miniature circuit breaker)

Conventional thermal current Ith of auxiliary contacts

4 A

Fuse short-circuit protection - max

10 A gG/gL

Rated operational current

1 A at 250 V DC (UL/CSA); 2.5 A at 240 V AC (UL/CSA)

Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V

4 A

Voltage rating at AC

500 V AC

Voltage rating at DC

220 VDC

Connection type

Screw connection

Lamp holder

None

Mounting Method

Other

Number of contacts (change-over contacts)

0

Number of contacts (normally closed contacts)

0

Number of contacts (normally open contacts)

2

Terminal capacity (solid/flexible conductor)

18 - 14 AWG (2x) at auxiliary contacts; 18 - 14 AWG (1x) at auxiliary contacts; 0.75 mm² - 2.5 mm² (1x) at auxiliary contacts with ferrule; 0.75 mm² - 2.5 mm² (2x) at auxiliary contacts with ferrule

Country of origin

Romania

HS Code

8538.90

• EAN 4015082594268
• SAP 1000033646
• Code 8245300
