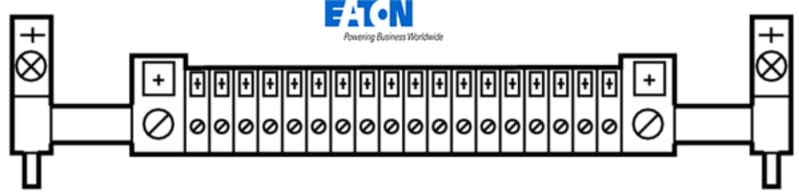

N rail for fuse enclosure (N43RS27)

Eaton N rail for fuse enclosure (N43RS27) is listed under Electrical Components / Terminal Blocks. Sales unit: pcs; Eaton catalogue number: 065362; Depth: 30 mm; Height: 30 mm; Width: 400 mm; Weight: 0.258 kg.

Manufacturer part number (MPN)

N43RS27

EAN / GTIN

4015080653622

Sales unit

pcs

Eaton catalogue number

065362

Depth

30 mm

Height

30 mm

Width

400 mm

Weight

0.258 kg

Compliances

RoHS conform

Features

Contact safe

Suitable for

Useful for stranded conductors

Used with

RS27/I43 (I44); SE-RS-I43 (I44); Prepared enclosures; Modular busbar system; Ci insulated enclosure

Accessory/spare part type

N bars

Nominal current

63 A

Number of poles

Single-pole

Type

Ci insulated enclosure Modular busbar system Prepared enclosures

Conductor cross section, input - max

35 mm²

Conductor cross section, input - min

2.5 mm²

Conductor cross section, input AWG - max

14 mm²

Conductor cross section, input AWG - min

2 mm²

Conductor cross section, output - max

6 mm²

Conductor cross section, output - min

0.5 mm²

Conductor cross section, output AWG - max

20 mm²

Conductor cross section, output AWG - min

10 mm²

Number of connections (Less Than 6 mm squared)

0

Number of connections (Less Than AWG 6)

0

Number of connections (Greater Than 25 mm squared)

2

Number of connections (Greater Than 250 kcmil)

0

Number of connections (10 mm squared)

0

Number of connections (16 mm squared)

4

Number of connections (25 mm squared)

0

Number of connections (250 kcmil)

0

Number of connections (AWG 2)

0

Number of connections (AWG 4)

0

Number of connections (AWG 4/0)

0

Number of connections (AWG 6)

0

Number of connections (total)

6

Number of inputs

1

Number of outputs

19

Terminal capacity (solid wire)

0.5 mm² - 16 mm² (18x); 2.5 mm² - 35 mm² (2x)

Terminal capacity (stranded cable)

0.5 mm² - 4 mm² (18x); 2.5 mm² - 25 mm² (2x)

Unit type

Modular system

Connection type

Clamp; Screwing

Mounting method

Screw

Contact safe

Yes

Suitable for fine strand conductors

No

Suitable for solid conductors

No

Suitable for stranded conductors

Yes

Suitable for fine strand conductors without cable end sleeve

No

Suitable for extra fine-strand conductors

No

Conductor cross section, input

2.5–35 mm²

Conductor cross section, output

0.5–6 mm²

Conductor cross section, input AWG

2–14

Conductor cross section, output AWG

10–20

Country of origin

Poland

HS Code

8538.90

• EAN 4015080653622
• SAP 1000788259
• Code 81399553
