Eaton

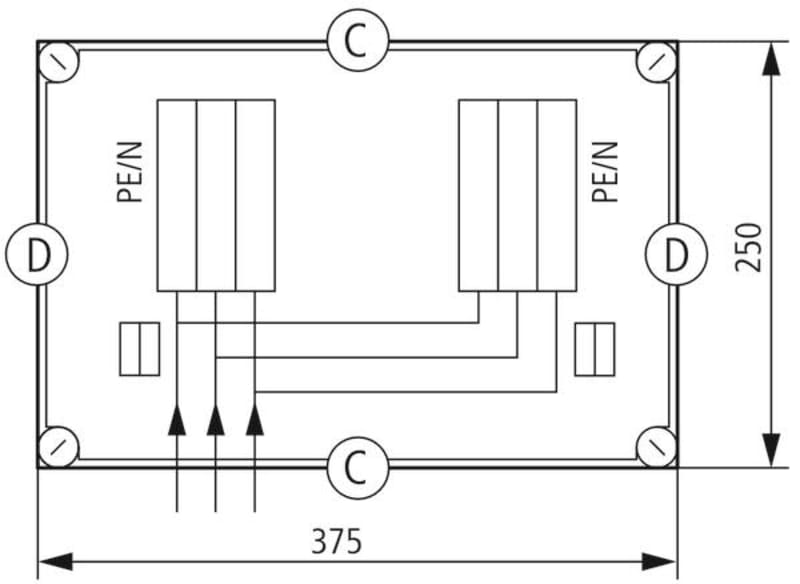

Fuse Enclosure 3P NH00 100A
Part number046379EAN / GTIN4015080463795HS code8537.10
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Eaton 046379 2GS00/I43E-V2K.
Technical Specifications
- Manufacturer part number (MPN)
- 046379
- EAN / GTIN
- 4015080463795
- Sales unit
- pcs
- Eaton catalogue number
- 046379
- Depth
- 150 mm
- Height
- 250 mm
- Width
- 375 mm
- Weight
- 3.7 kg
- Compliances
- RoHS conform
- Fitted with
- Transparent cover
- Functions
- Enclosures with devices fitted; Extension possible; With parallel link between the incoming sides
- Protected by
- Knife blade fuse (NH)
- Special features
- Fuse links ￫#288934 ￫#288909 ￫#100651 Incoming cable max. 35 mm² Max. fuse 63 A
- Suitable for
- Parallel link between the incoming sides
- Used with
- Ci insulated enclosure; Two-way fuse box; Enclosures with devices fitted
- Amperage rating
- 100 A
- Number of poles
- Three-pole
- Type
- Ci insulated enclosure Enclosures with devices fitted Two-way fuse box
- Rated operational current
- 100 A (2x)
- Rated operational voltage (Ue) - max
- 690 V
- Voltage rating
- 690 V AC
- Voltage rating at AC
- 690 V AC
- Degree of protection
- IP65
- Enclosure material
- Plastic
- Fuse cartridge
- NH00
- Number of groups
- 2
- Position on rail system
- Universal
- Unit type
- Stand-alone device
- Concurrently switching neutral conductor
- No
- Rated current
- 100 A
- Rated voltage
- 690 V
- Protection
- Knife blade fuse (NH)
- Housing material
- Plastic
- Extension possible
- Yes
- Positioning on rail system
- Universal
- With transparent cover
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4015080463795
- SAP 1200598505
- Code 82977736
Product Documentation
Document preview: Fuse Enclosure 3p NH00 100A (046379) — Specification Data Sheet (OEM)
