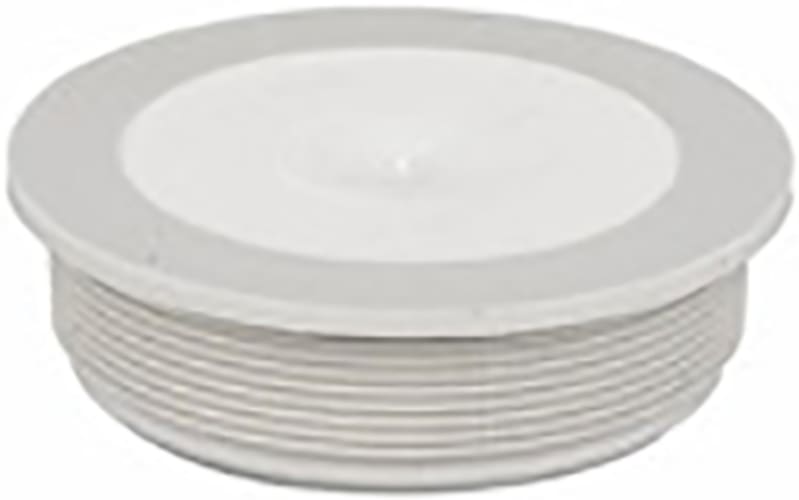

Eaton KT-M25 Diaphragm Cable Grommet, M25, IP66
Pricing
Request a quote
We reply within 24 hours
Product Description
The KT-M25 is a closed diaphragm cable grommet with M25 thread, offering push-through cable entry from 1 to 18 mm outside diameter without pre-cut openings. Manufactured in halogen-free polyethylene with thermoplastic elastomer, it maintains IP66 sealing and is watertight, gastight and RoHS-compliant. Operating range -5 to +40 °C; short-term temperature resistance up to approximately 100 °C.
Technical Specifications
- Manufacturer part number (MPN)
- KT-M25
- EAN / GTIN
- 4015082076030
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Eaton catalogue number
- 207603
- Depth
- 15 mm
- Height
- 25 mm
- Width
- 25 mm
- Weight
- 0.003 kg
- Compliances
- RoHS conform
- Used with
- Diaphragm grommets; H03VV-F 0.75 mm² (3x); NYM 10 mm² (4x)
- Special features
- With integral push-through diaphragm
- Type
- General switchboard accessory
- Features
- Gastight; Watertight; Halogen free
- Thread size
- M25
- Stress fracture risk
- Relative high
- Bore diameter
- 25.5 mm
- For outer cable diameter - max
- 18 mm
- For outer cable diameter - min
- 1 mm
- For wall thickness - max
- 9.5 mm
- For wall thickness - min
- 1 mm
- Number of cables - max
- 1
- Number of cables - min
- 1
- Opening diameter
- 25.5 mm
- Operating temperature - max
- 40 °C
- Operating temperature - min
- -5 °C
- Suitable for cable diameter - max
- 18 mm
- Suitable for cable diameter - min
- 1 mm
- Thread size (PG)
- 0
- Pollution degree
- 3
- Cable entry type
- M25; Round
- Surface finishing
- RAL 7035, light gray
- Color
- Light gray (RAL 7035); Gray
- Degree of protection
- IP66
- Surface protection
- Other
- Accessory/spare part type
- Cable grommets; Metric diaphragm grommets; Cable management
- Chemical resistance
- Resistant against: alcohol, animal and plant fat, brine, light acids, water
- Material quality
- Polyethylene (PE)
- Material
- Other; Halogen free; PE and thermoplastic elastomer; Silicone free
- Model
- Closed
- Overvoltage category
- III
- Temperature resistance
- Temperature resistant: -40 °C - 80 °C, short-time up to approx. 100 °C
- Colour
- Grey
- Watertight
- Yes
- Halogen free
- Yes
- Total length
- 15 mm
- Cable entry
- Round
- With strain relief
- No
- Operating temperature
- -5–40 °C
- Angle model
- No
- Suitable for cable diameter
- 1–18 mm
- For wall thickness
- 1–9.5 mm
- Shrink technique
- No
- Number of cables
- 1
- Suitable for cable gland
- No
- Gastight
- Yes
- Fire resistant
- No
- Country of origin
- Germany
