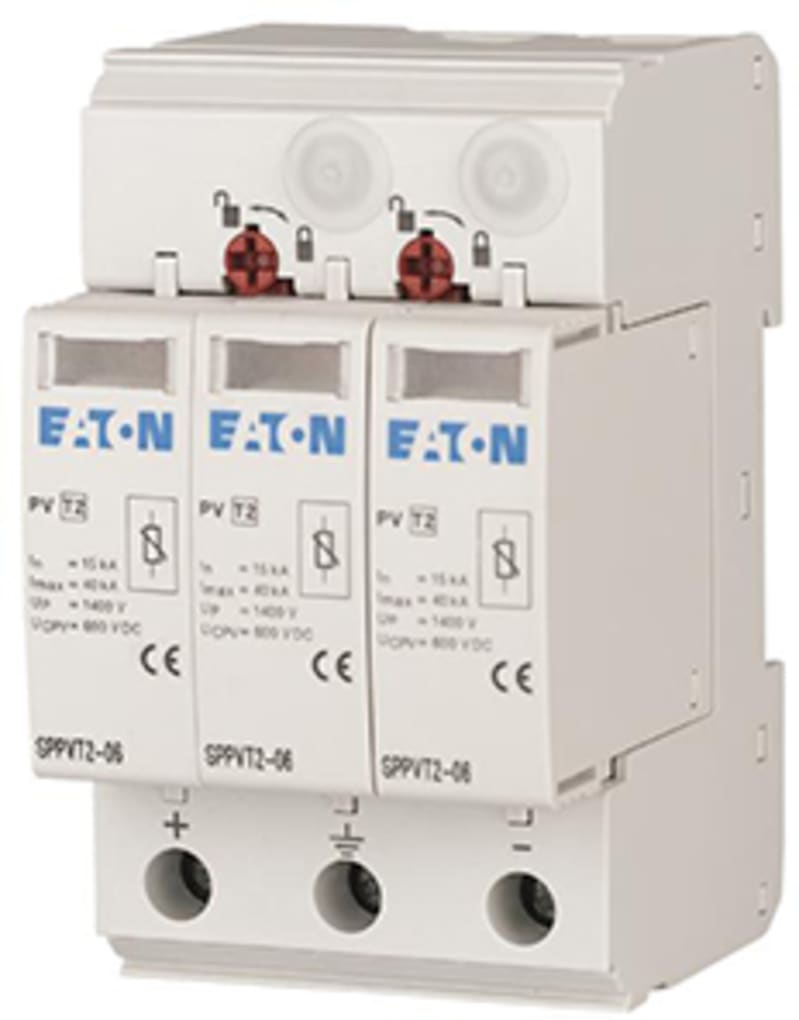

Surge protection device SPPVT12-06-3
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Surge protection device SPPVT12-06-3 (part number SPPVT12-06-2+PE) is listed under Switchgear & Protection / Surge Protectors. Sales unit: pcs; Package quantity: 100 pcs; Eaton catalogue number: 177258; Depth: 65.5 mm; Height: 90 mm; Width: 53.4 mm.
Technical Specifications
- Manufacturer part number (MPN)
- SPPVT12-06-2+PE
- EAN / GTIN
- 4015081717101
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Eaton catalogue number
- 177258
- Depth
- 65.5 mm
- Height
- 90 mm
- Width
- 53.4 mm
- Weight
- 0.38 kg
- Compliances
- RoHS conform
- Certifications
- CE
- Features
- Category type 2
- Special features
- Pluggable
- System configuration type
- IT
- Application
- Open areas Residential buildings Utility buildings
- Type
- DC overvoltage protection Surge arrester
- Ambient operating temperature - max
- 80 °C
- Ambient operating temperature - min
- -40 °C
- Static heat dissipation, non-current-dependent
- 0.03 W
- Connection
- For ungrounded systems
- Continuous voltage at DC - max
- 720 V
- Discharge surge current (8/20) - max
- 40 kA
- Nominal discharge surge current (8/20)
- 15 kA
- Nominal voltage at DC
- 600 V
- PV-voltage - max
- 720 V
- Signalling at the device
- Optic
- Voltage protection level
- 2.6 KV
- Voltage rating (Iu) - max
- 600 V
- Degree of protection
- IP20
- Frame
- 3 modular spacing
- Mounting method
- DIN rail (top hat rail) 35 mm
- Number of conductors without earthing
- 2
- System configuration DC
- No
- System configuration IT
- Yes
- System configuration TN
- No
- System configuration TN-C
- No
- System configuration TT
- No
- System configuration other
- No
- Number of conductors (without earthing)
- 2
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage DC
- 600 V
- Max. continuous voltage DC
- 720 V
- Max. PV-voltage
- 720 V
- Integrated short-circuit protection
- No
- Integrated backup fuse
- No
- Leakage-current free
- No
- Construction size
- 3 modular spacing
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- With remote signalling contact
- No
- Category type 2
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4015081717101
- SAP 1200562347
- Code 82902990
Product Documentation
More from Eaton
Eaton
Eaton 9PX EBM 240V (9PXEBM240)
Eaton
NH-000 500V gG/gL 40A
40NHG000B
Eaton
Eaton 9PX EBM 180V (9PXEBM180)
Eaton
WALL-Mount Cabinet H700 B500 D250
CS-75/250
Eaton
1NO/1NC ytterliggende (DILM820-XHI11-SA)
Eaton
Eaton NZMH2-4-PX100/VAR Molded-Case Circuit Breaker 4-Pole 100A 150KA
Eaton
Eaton NMRBM-16/3/B/003-A RCBO 16 A 30 mA, Curve B, 3-Pole, Type A
NmRBM-16/3/B/003-A
Eaton
Eaton NZMN2-4-A200 Molded-Case Circuit Breaker 4-Pole 200A 50KA
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SPPVT12-06-2+PE?
- SPPVT12-06-2+PE can be ordered from cballast.com as a Eaton catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Eaton product?
- The manufacturer part number is SPPVT12-06-2+PE.
- What is the HS code for SPPVT12-06-2+PE?
- The customs tariff (HS) code for SPPVT12-06-2+PE is 8536.50.
- Who manufactures SPPVT12-06-2+PE?
- SPPVT12-06-2+PE is a Eaton product in the Switchgear & Protection range.
- Is a datasheet available for SPPVT12-06-2+PE?
- Yes — the SPPVT12-06-2+PE datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SPPVT12-06-2+PE?
- The minimum order quantity is 1.
- Is SPPVT12-06-2+PE available?
- Yes — SPPVT12-06-2+PE is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
