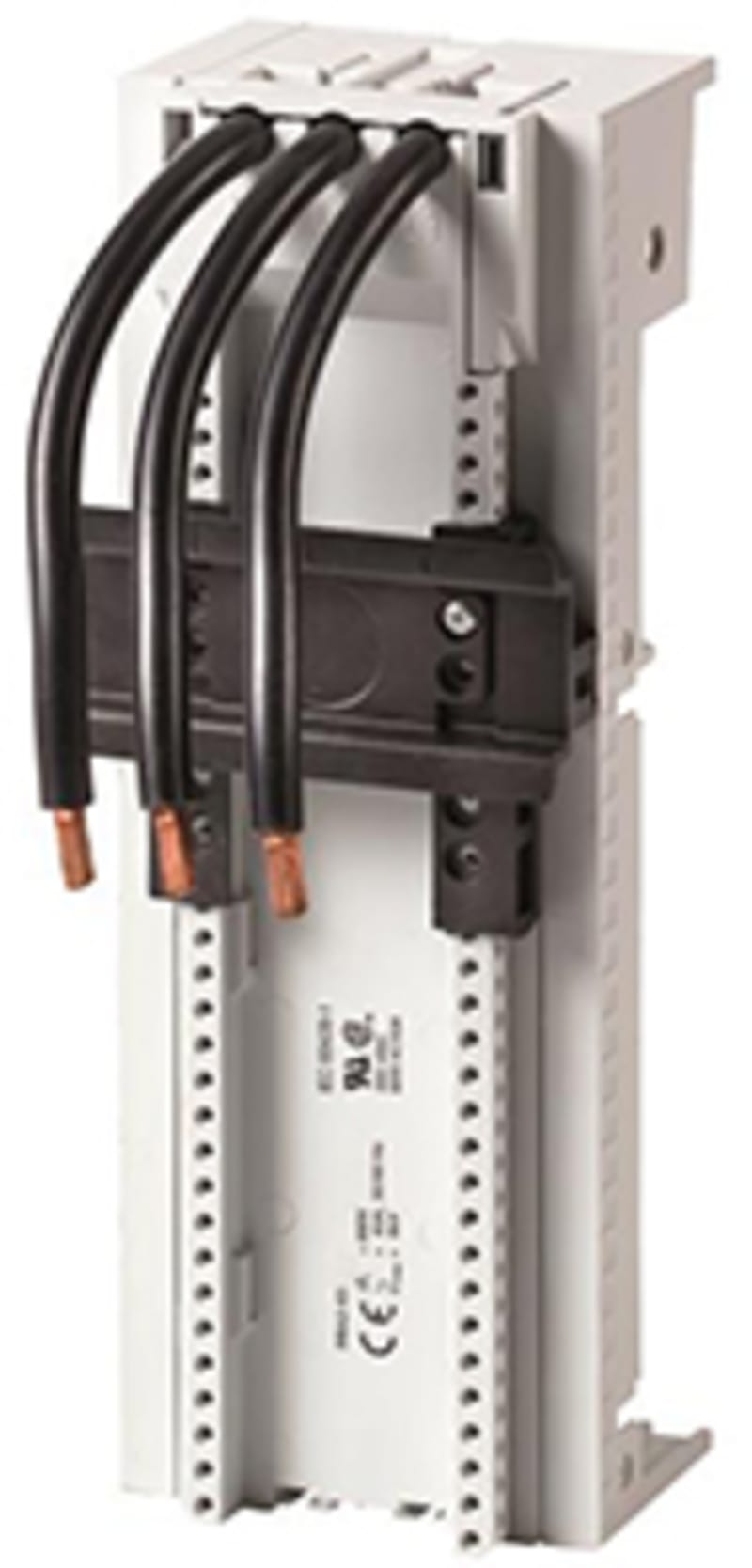

Busbaradapter (BBA2-63)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Busbaradapter (BBA2-63) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 4 pcs; Eaton catalogue number: 101458; Depth: 200 mm; Height: 63 mm; Width: 72 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BBA2-63
- EAN / GTIN
- 4015081013784
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Eaton catalogue number
- 101458
- Depth
- 200 mm
- Height
- 63 mm
- Width
- 72 mm
- Weight
- 0.416 kg
- Certifications
- CSA-C22.2 No. 14; UL File No.: E300273; IEC60439-1; UL 508; UL Category Control No.: NMTR; NMTR7; UL; UL 508A; CE; Certified by UL for use in Canada
- Special features
- Terminal capacity: 10 mm² (AWG 8)
- Nominal current
- 63 A
- Type
- Busbar adapter SASY Busbar system 60 mm
- Ambient operating temperature - max
- 55 °C
- Ambient operating temperature - min
- -25 °C
- Equipment heat dissipation, current-dependent Pvid
- 6.9 W
- Electric connection type
- Round conductor
- Rated operation current (Ie)
- 63 A
- Voltage rating (UL CSA 13)
- 600 V AC, UL/CSA
- Voltage rating at AC
- 690 V
- Adapter width
- 72 mm
- Busbar distance
- 60 mm
- Busbar thickness - max
- 10 mm
- Busbar thickness - min
- 5 mm
- Mounting rail armament
- 1 mounting rail
- Number of DIN rails
- 1
- Rail width
- 35 mm
- Type of electric connection
- Round conductor
- Rated current In
- 63 A
- Min. busbar thickness
- 5 mm
- Max. busbar thickness
- 10 mm
- Width of the adaptor
- 72 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081013784
- SAP 1200563099
- Code 82903775
Product Documentation
