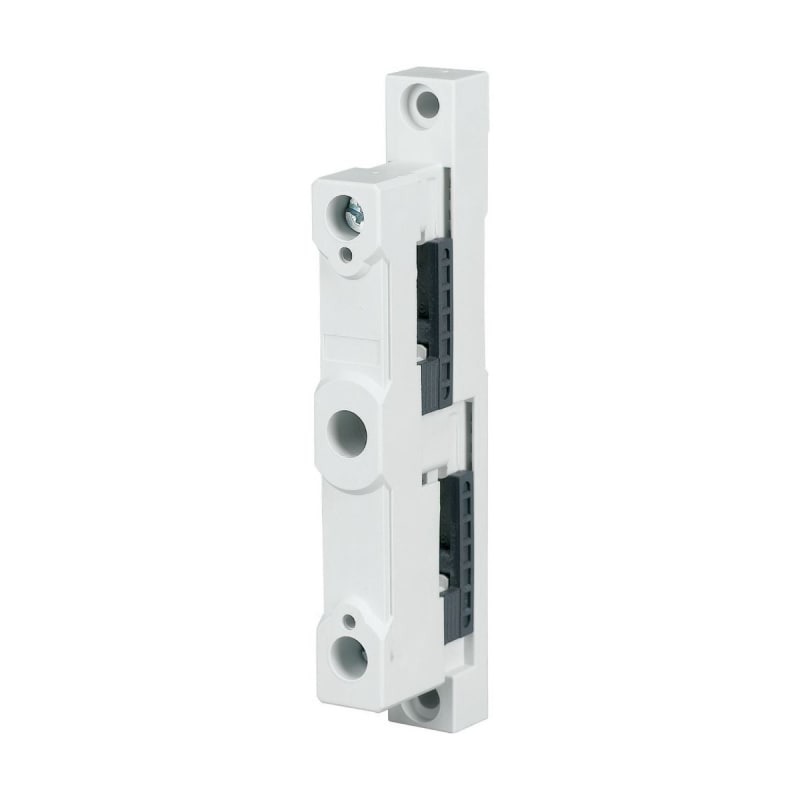

Shield clamp 2-POLE. f. flatsk
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Shield clamp 2-POLE. f. flatsk (part number BBS-2/FL) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 107069; Depth: 20 mm; Height: 50 mm; Width: 164 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BBS-2/FL
- EAN / GTIN
- 4015081069224
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 107069
- Depth
- 20 mm
- Height
- 50 mm
- Width
- 164 mm
- Weight
- 0.109 kg
- Compliances
- RoHS conform
- Features
- Halogen free; Self-extinguishing acc. UL 94
- Functions
- Busbar support; PE/N busbar carrier
- Special features
- Can be fitted to all busbar sizes using concertina system Can be mounted individually
- Suitable for
- Two-pole
- Used with
- 15 x 5/10 mm; 25 x 5/10 mm; 12 x 5/10 mm; 20 x 5/10 mm; 30 x 5/10 mm; 60 mm system; 185 mm system; System for flat busbar
- Color
- Light gray (RAL 7035)
- Number of poles
- Two-pole
- Type
- 185 mm system 60 mm system System for flat busbar
- Temperature resistance
- Up to 120 °C
- Creepage resistance
- CTI 200
- Current rating - max
- 630 A
- Rated operation current (Ie)
- 630 A
- Busbar distance
- 60 mm
- Material
- Thermoplast, silicon free, chlorine free
- Max. rated current
- 630 A
- Country of origin
- Germany
