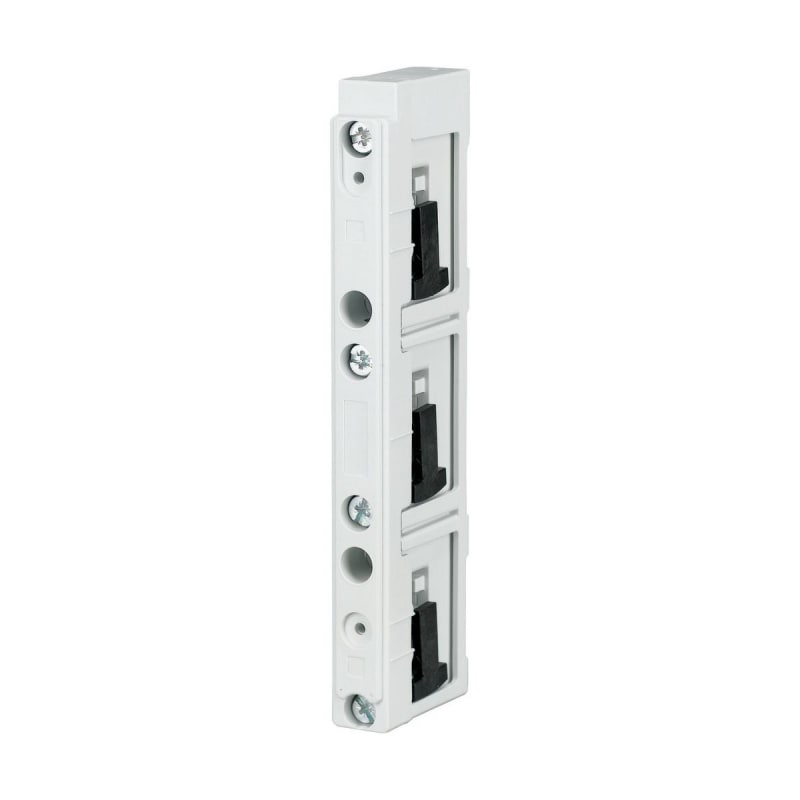

Shield clamp 3-POLE. f. flatsk (BBS-3/FL-NA)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Shield clamp 3-POLE. f. flatsk (BBS-3/FL-NA) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 107067; Depth: 50 mm; Height: 190 mm; Width: 20 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BBS-3/FL-NA
- EAN / GTIN
- 4015081069200
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 107067
- Depth
- 50 mm
- Height
- 190 mm
- Width
- 20 mm
- Weight
- 0.149 kg
- Compliances
- IEC 60439-1; UL508A; CE marking; CSA-C22.2 No. 14; UL CSA09 (refer to approbation report); RoHS conform
- Certifications
- CSA (Class No. 3211-37); CSA (File No. 236217); Specially designed for North America; UL (File No. E300273); North America (UL listed, CSA certified); UL (Category Control Number NMTR, NMTR7)
- Features
- Halogen free; Self-extinguishing acc. UL 94
- Functions
- Busbar support; UL busbar support; Current limiting circuit breaker, refer to approbation report
- Special features
- Can be fitted to all busbar sizes using concertina system with screw block inside
- Suitable for
- Three-pole
- Used with
- 30 x 5/10 mm; 12 x 5/10 mm; Feeder circuits; 20 x 5/10 mm; System for flat busbar; 60 mm system
- Color
- Light gray (RAL 7035)
- Number of poles
- Three-pole
- Type
- 60 mm system System for flat busbar
- Ambient operating temperature - max
- 35 °C
- Temperature resistance
- Up to 120 °C
- Creepage resistance
- CTI 200
- Current rating - max
- 630 A
- Rated operation current (Ie)
- 630 A
- Voltage rating (UL CSA 13)
- Max. 600 V AC
- Busbar distance
- 60 mm
- Degree of protection
- Feeder circuits
- Material
- Thermoplast, silicon free, chlorine free; Halogen free
- Max. rated current
- 630 A
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081069200
- SAP 1000689686
- Code 8398828
