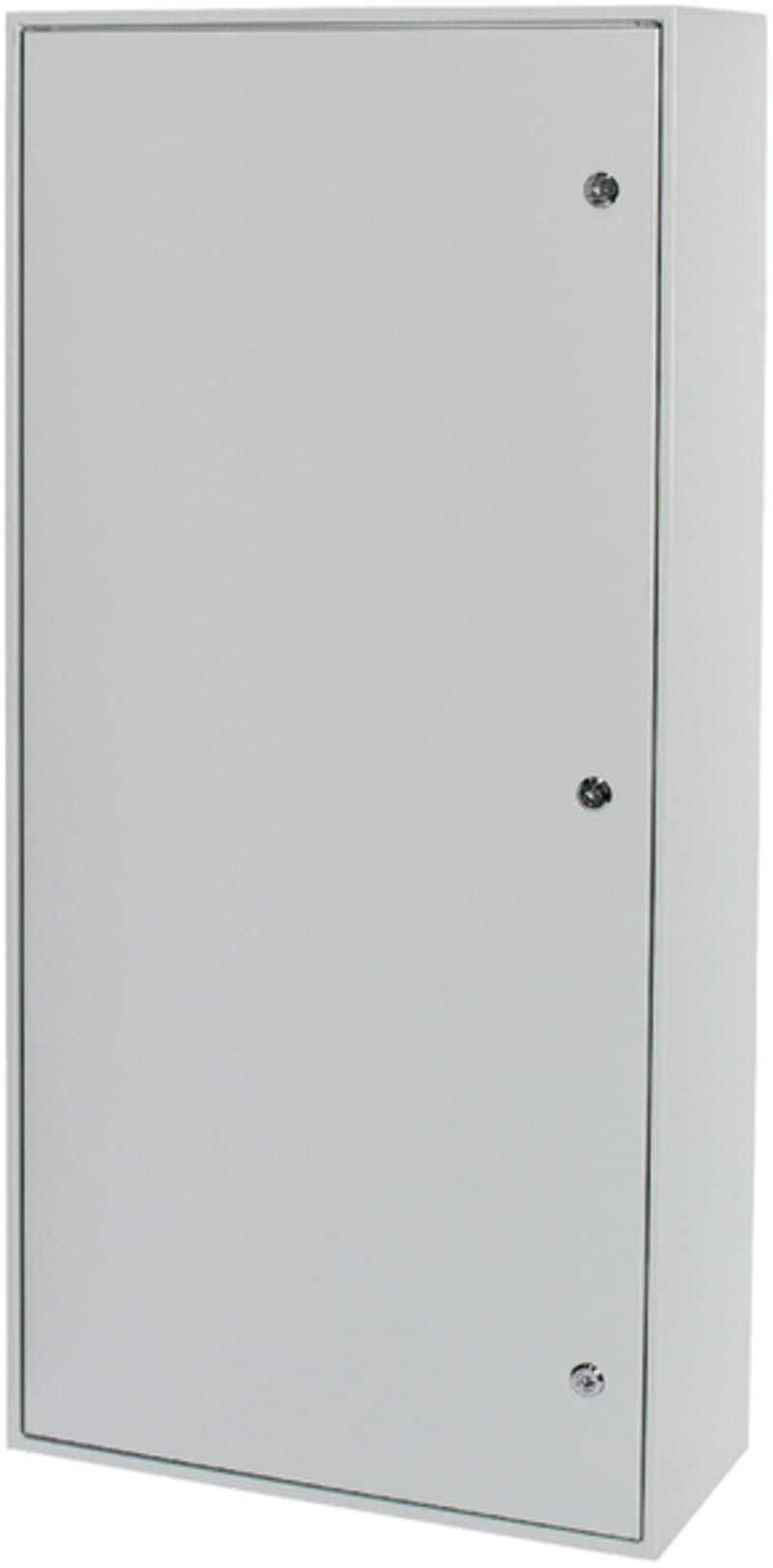

Wall-mount cabinet IP55 xE DB-lock H460 B400 D270
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Wall-mount cabinet IP55 xE DB-lock H460 B400 D270 (part number 110837) is listed under Enclosures / Distribution Boards. Sales unit: pcs; Eaton catalogue number: 110837; Depth: 270 mm; Height: 460 mm; Width: 400 mm; Weight: 15 kg.
Technical Specifications
- Manufacturer part number (MPN)
- 110837
- EAN / GTIN
- 4015081103683
- Sales unit
- pcs
- Eaton catalogue number
- 110837
- Depth
- 270 mm
- Height
- 460 mm
- Width
- 400 mm
- Weight
- 15 kg
- Compliances
- RoHS conform
- Features
- EMC-version
- Functions
- Basic device; Extension possible; Sealable
- RAL-number
- 7035
- Application
- Moisture-proof (installation site)
- Color
- Gray; Light gray (RAL 7035)
- Type
- Basic device
- Built-in height
- 490 mm
- Built-in width
- 430 mm
- Closure type
- Other
- Cover/door model
- Closed
- Cover/door type
- Door; Double-ward lock; Single
- Enclosure material
- Steel
- Internal depth
- 265 mm
- Material
- Sheet steel
- Mounting method
- Surface mounted (plaster); Surface mounting
- Number of rows
- 2
- Surface finishing
- With powder coating
- Width in number of modular spacings
- 13
- Built-in depth
- 300 mm
- Degree of protection
- IP55
- Colour
- Grey
- UV resistant
- No
- With mounting plate
- No
- Type of covering
- Door
- EMC-version
- No
- Extension possible
- Yes
- Inner depth
- 265 mm
- DIN-rail
- Yes
- Sealable
- Yes
- Housing material
- Steel
- With N-disconnect slide
- No
- Type of door
- Single
- Transparent cover/door
- No
- With lock
- No
- Cover model
- Closed
- Earthing terminal block
- No
- Neutral terminal block
- No
- Signal passing door
- No
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 4015081103683
- SAP 1200282497
- Code 82252929
Product Documentation
More from Eaton
Eaton
Insert G2 SbS 5-Row 83 - 150 mm
EP-501135
Eaton
Door whole G2 SbS 4-Row 83 mm
EP-501138
Eaton

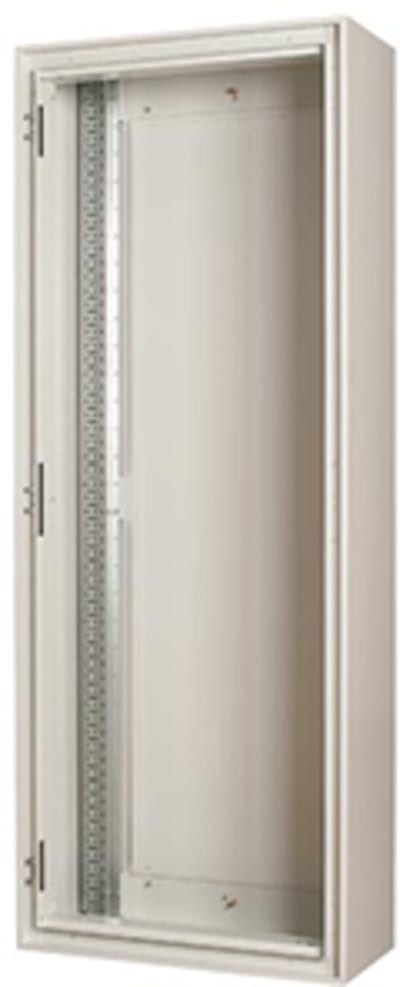

Wall-mount cabinet IP55 xE without door H1560 B600 D270
174361
Eaton
RC-Attenuator FOR DILA/M7..12 (DILM12-XSPR48)
Eaton

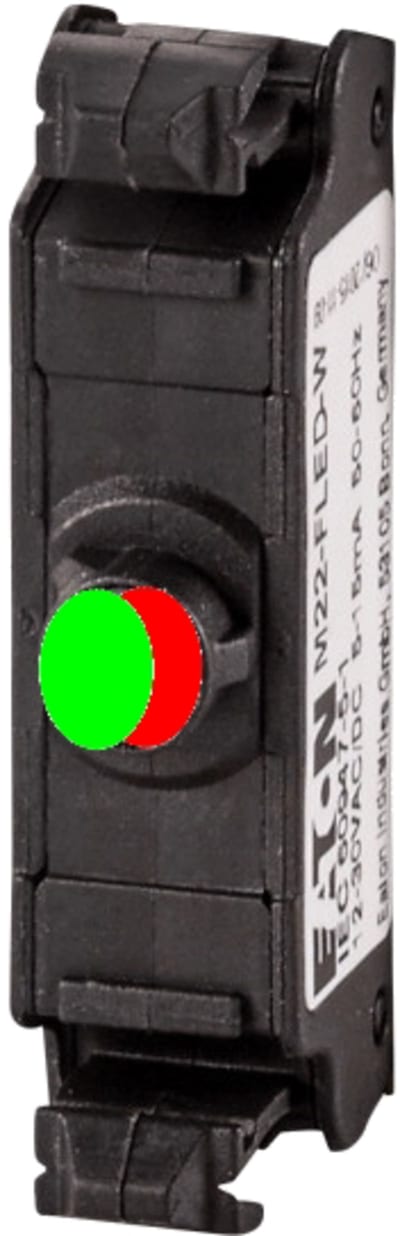

LED element, flat rear (M22-FLED-RG)
Eaton

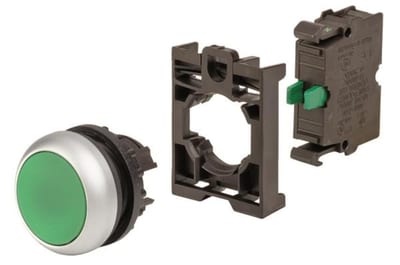

Push-button, RMQ (M22-D-G-K10-BVP)
