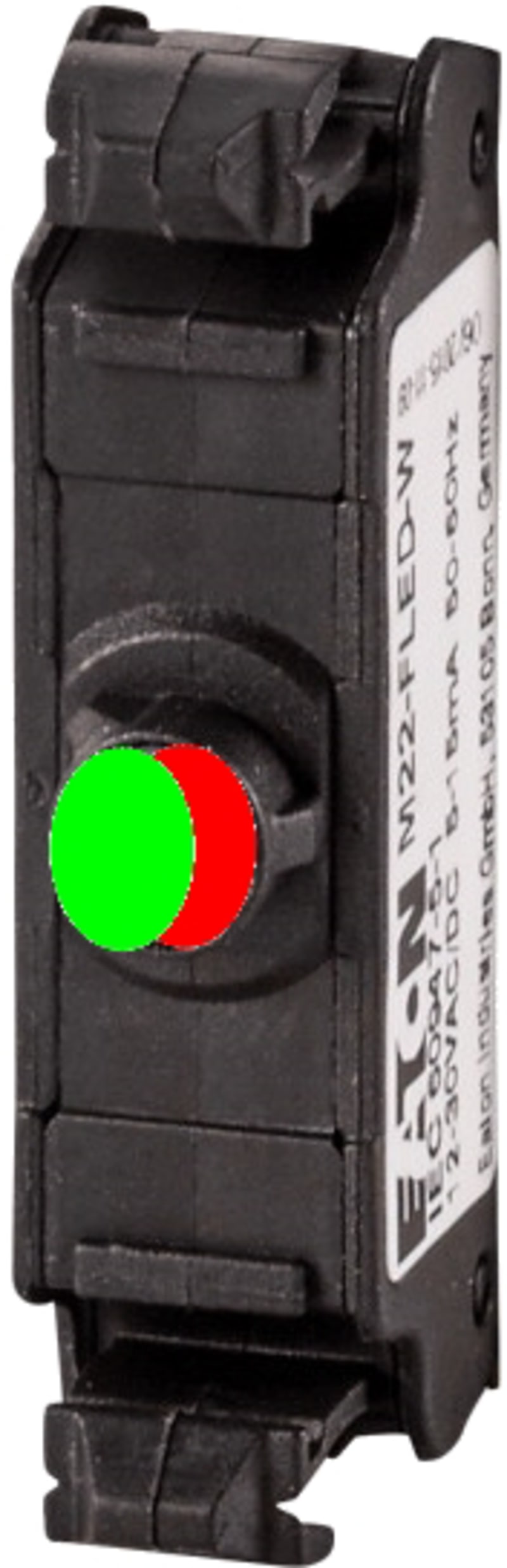

LED element, flat rear (M22-FLED-RG)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton LED element, flat rear (M22-FLED-RG) is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 20 pcs; Eaton catalogue number: 180799; Depth: 38 mm; Height: 10 mm; Width: 14 mm.
Technical Specifications
- Manufacturer part number (MPN)
- M22-FLED-RG
- EAN / GTIN
- 4015081759736
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Eaton catalogue number
- 180799
- Depth
- 38 mm
- Height
- 10 mm
- Width
- 14 mm
- Weight
- 0.004 kg
- Certifications
- UL 508; CSA-C22.2 No. 94-91; CSA-C22.2 No. 14-05; IEC/EN 60947-5; CE; UL File No.: E29184; CSA Class No.: 3211-03; IEC 60947-5-1; CSA File No.: 012528; CSA; UL Category Control No.: NKCR; UL
- Catalog Notes
- Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany
- Ambient operating temperature - max
- 70 °C
- Ambient storage temperature - max
- 85 °C
- Ambient operating temperature - min
- -25 °C
- Climatic proofing
- Dry heat to IEC 60068-2-2; Damp heat, cyclic, to IEC 60068-2-30; Damp heat, constant, to IEC 60068-2-78
- Connection to SmartWire-DT
- No
- Power consumption
- Max. 0.36 W
- Rated insulation voltage (Ui)
- 250 V
- Rated operational current (Ie) - max
- 15 mA
- Rated operational current (Ie) - min
- 10 mA
- Rated operational voltage (Ue) at DC - max
- 24 V
- Rated operational voltage (Ue) at DC - min
- 24 V
- Color
- Green; Red
- Fitted with
- Light source; Diode
- Light color
- Multi-colored
- Degree of protection
- IP20
- Lifespan, electrical
- 100,000 h (at 25°C, according to EN60064)
- Overvoltage category
- III
- Pollution degree
- 3
- Rated impulse withstand voltage (Uimp)
- 4000 V AC
- Voltage type
- DC
- Connection type
- Front fixing
- Mounting position
- As required
- Terminal capacity (flexible with ferrule)
- Use WAGO Variocrimp 4 crimping tool; please enquire for others; 1 x (0.25 - 1) mm²
- Terminal capacity (solid)
- 1 x (075 - 1.5) mm² Can be plugged without tools; 1 x (0.2 - 1.5) mm²
- Terminal capacity (solid/stranded AWG)
- 20
- Terminal capacity (stranded)
- 1 x (0.2 - 1.5) mm²
- Lamp holder
- None
- Transformer integrated
- No
- With integrated voltage decreasing resistor
- No
- With integrated diode
- Yes
- Lamp type
- LED
- Type of fastening
- Front fastening
- With light source
- Yes
- Connection type auxiliary circuit
- Spring clamp connection
- Rated voltage Ue at DC
- 24 V
- Voltage type for actuating
- DC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8541.41
Cross References
- EAN 4015081759736
- SAP 1000775540
- Code 81367599
