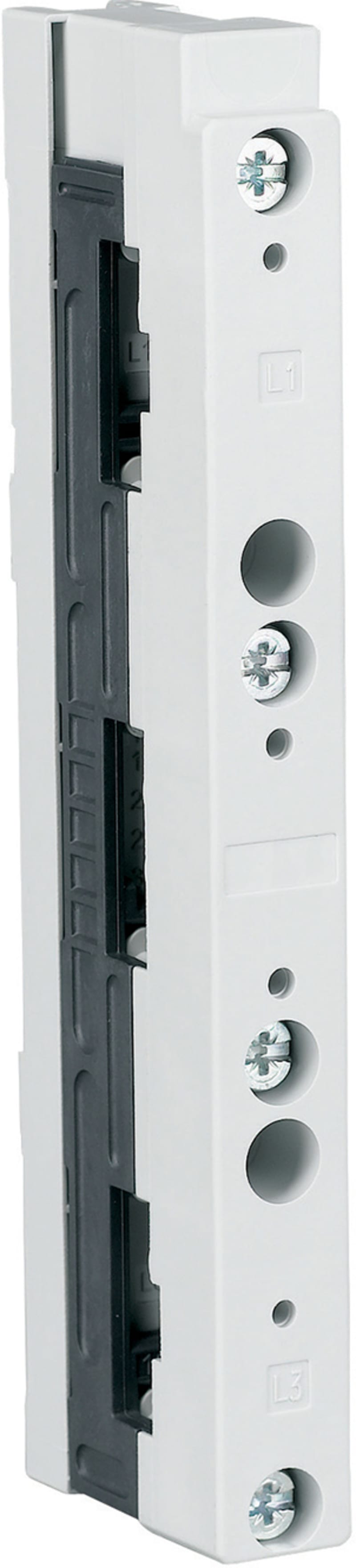

Shield clamp 3-POLE. f. flatsk (BBS-3/FL)
Pricing
Request a quote
We reply within 24 hours
Overview
Eaton Shield clamp 3-POLE. f. flatsk (BBS-3/FL) is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 10 pcs; Eaton catalogue number: 107066; Depth: 50 mm; Height: 190 mm; Width: 20 mm.
Technical Specifications
- Manufacturer part number (MPN)
- BBS-3/FL
- EAN / GTIN
- 4015081068296
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Eaton catalogue number
- 107066
- Depth
- 50 mm
- Height
- 190 mm
- Width
- 20 mm
- Weight
- 0.154 kg
- Compliances
- RoHS conform
- Certifications
- IEC/EN 60439-1, VDE 0660 Part 500
- Features
- Self-extinguishing acc. UL 94; Halogen free
- Flammability characteristics (UL)
- Self-extinguishing (UL 94)
- Functions
- Busbar support; IEC busbar support
- Special features
- Can be fitted to all busbar sizes using concertina system with screw block inside
- Suitable for
- Three-pole
- Used with
- 15 x 5/10 mm; 30 x 5/10 mm; 12 x 5/10 mm; 20 x 5/10 mm; 25 x 5/10 mm; 60 mm system; System for flat busbar
- Color
- Light gray (RAL 7035)
- Number of poles
- Three-pole
- Type
- 60 mm system System for flat busbar
- Ambient operating temperature - max
- 35 °C
- Temperature resistance
- Up to 120 °C
- Creepage resistance
- CTI 200
- Current rating - max
- 630 A
- Current rating (peak withstand)
- 50 kA (20 x 5 mm); 64 kA (30 x 5 mm); 73 kA (30 x 10 mm); 56 kA (20 x 10 mm); 50 kA (12 x 5 mm); 50 kA (25 x 5 mm); 56 kA (12 x 10 mm)
- Frequency rating
- 50 Hz / 60 Hz
- Frequency rating of contacts
- 50 Hz / 60 Hz
- Rated insulation voltage (Ui)
- 3000 V
- Rated operation current (Ie)
- 630 A
- Short-circuit duration
- 20 ms
- Voltage rating
- 690 V
- Busbar distance
- 60 mm
- Busbar temperature - max
- 70 °C
- Distance between busbar centers
- 60 mm
- Distance between busbar supports
- 250 mm
- Material
- Thermoplast, silicon free, chlorine free; Halogen free
- Mounting position
- Vertical, horizontal
- Max. rated current
- 630 A
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4015081068296
- SAP 1000683430
- Code 8592243
Product Documentation
